Atlas Copco8431 0375 42

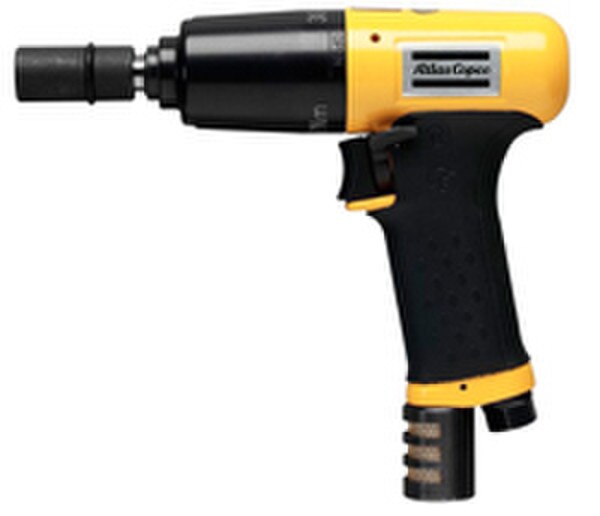

EP9PTX80 HR13-AT | EP9PTX80 HR13-AT, Pulse Tool,utoTrim, 50 - 80 Nm, 5100 rpm, 1/2'' square
The ideal choice if your operators need to speed up production with fast rundowns and short tightening cycles. It is a reliable and powerful shut-off pulse tool that automatically shuts off the air supply when the pre-set torque has reached.
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
8431 0375 42 | EP9PTX80 HR13-AT | EP9PTX80 HR13-AT, Pulse Tool,utoTrim, 50 - 80 Nm, 5100 rpm, 1/2'' squareEP9PTX80 HR13-AT
Price on request
Details
Product information
Overview
Atlas Copco 8431 0375 42
Autotrim, Hydraulic Pulse Tool, 37-59 Ft Lbs
The fastest, lightest and most powerful hydraulic shut-off pulse tool in the ErgoPulse range. In ErgoPulse shut-off tools the air supply is shut off as soon as the pre-set torque has been reached, minimizing operator influence. The result is increased accuracy and faster tightening.
Features:
- TRIM valve – A patented adjustable valve at the air outlet is used to maximize tool accuracy on one type of joint, which could be hard, medium or soft.
- High reliability.
- Consistent torque over time, low meanshift.
- High level of durability.
- High speed, short cycle times.
- One-handed operation.
- High power-to-weight ratio.
- No springs to wear out.
- No wear on key parts.
- High precision components.
- No reaction forces.
- Light, well-balanced tools.
- Low noise levels.
- Lubrication free.
| Technical Specifications | |
|---|---|
| Model | EP9PTX80 HR13-AT |
| Stat 1 | 5100 rpm |
| Stat 2 | 37 - 59 Ft Lb |
| Recommended Torque Range (Ft Lb) | 37-59 |
| Drive size | 1/2'' square |
| Manufacturer | Atlas Copco |
| Length (mm) | 188 |
| Min Torque (Ft Lb) | 37 |
| Max Air Consumption (cfm) | 23 |
| Free Speed (RPM) | 5100 |
| SKU | 8431 0375 42 |
| Stock Code | 3 |
| Air Inlet | 1/4 in. |
| Style | Pistol Grip |
| Clutch Type | Auto Shut Off |
| Max Torque (In Lb) | 708 |
| Max Torque (Ft Lb) | 59 |
| Min Torque (Nm) | 50 |
| Max Torque (Nm) | 80 |
| Bolt Size - mm | M10 |
| Max Free Speed (rpm) | 5100 |
| Weight (lbs) | 3.4 |
| Series | EP PTX |
| Drive Type | 1/2 in. square |
| Min Hose Size (mm) | 10 |
| MPN | EP9PTX80 HR13-AT |
| Features & Benefits | |
| Consistent torque over time, low meanshift. | |
| High power-to-weight ratio | |
| No wear on key parts. | |
| Lubrication free | |
| High power-to-weight ratio,No wear on key parts. | |
