8431 0375 52 | EP4PTX9 HR42-AT | EP4PTX9 HR42-AT, Pulse Tool,utoTrim, 4 - 9 Nm, 3300 rpm, 1/4'' square
Overview

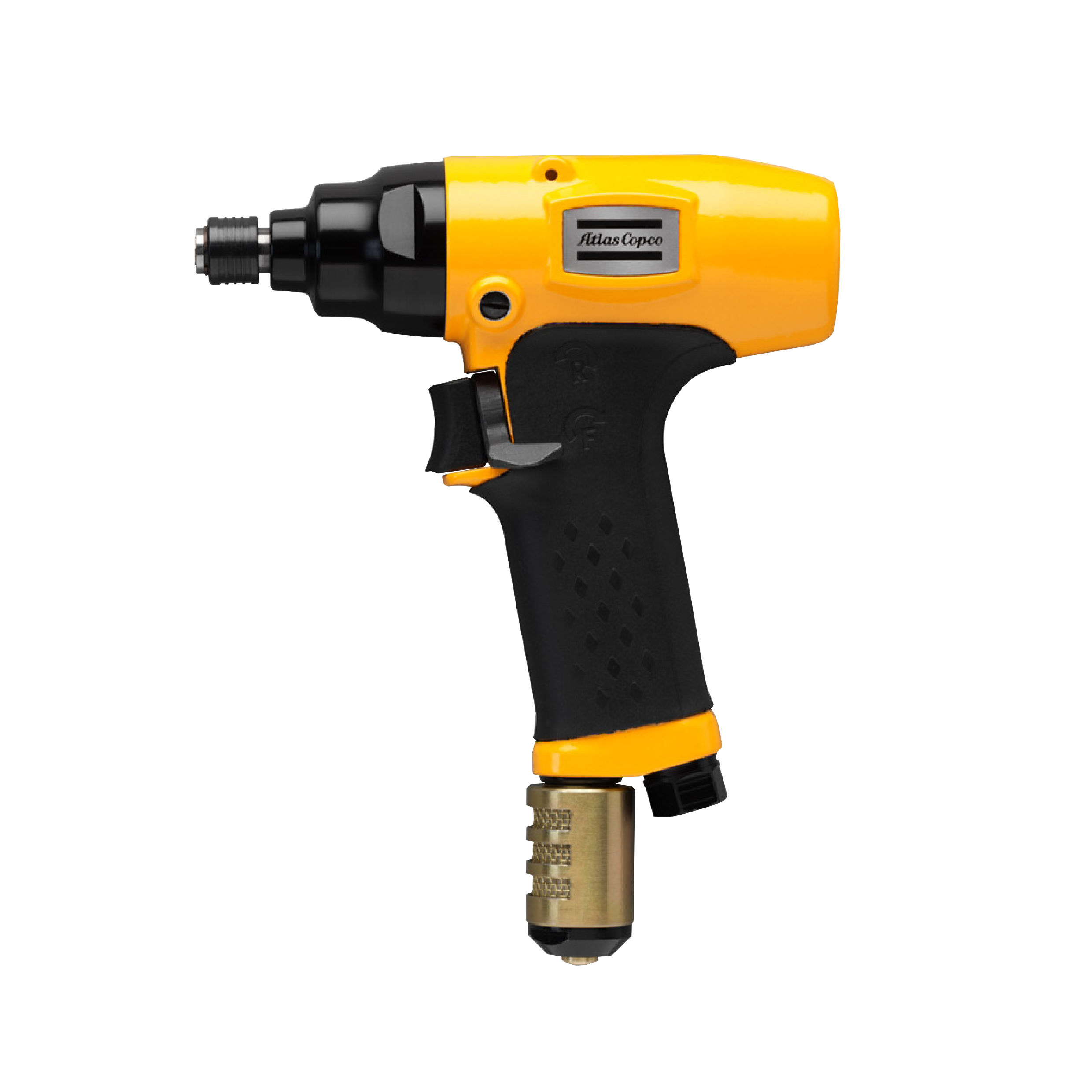

Atlas Copco 8431 0375 52
Autotrim, Hydraulic Pulse Tool, 3-7 Ft Lbs
The fastest, lightest and most powerful hydraulic shut-off pulse tool in the ErgoPulse range. In ErgoPulse shut-off tools the air supply is shut off as soon as the pre-set torque has been reached, minimizing operator influence. The result is increased accuracy and faster tightening.
Features:- TRIM valve – A patented adjustable valve at the air outlet is used to maximize tool accuracy on one type of joint, which could be hard, medium or soft.
- High reliability.
- Consistent torque over time, low meanshift.
- High level of durability.
- High speed, short cycle times.
- One-handed operation.
- High power-to-weight ratio.
- No springs to wear out.
- No wear on key parts.
- High precision components.
- No reaction forces.
- Light, well-balanced tools.
- Low noise levels.
- Lubrication free.
Features & Benefits
- Consistent torque over time, low meanshift.
- High power-to-weight ratio
- Lubrication free
- No wear on key parts.
Technical Specifications
SKU: 8431 0375 52
airinletthread
1/4 in
boltsize
M5 mm
csdistance
22 mm
length
164 mm
recommendedhosesize
8 mm
squaredrive
1/4 in
weight
2 lb
modeltype
Pistol
shutoff
Yes
torquerangemax
9 Nm
torquerangemin
4 Nm
freespeed
3300 r/min
airconsumptionunderload
4 l/s
maxworkingpressure
100 psig
nominalworkingpressure
91 psi
soundpressure
<70 dB(A)
soundstandard
ISO15744
sounduncertainty
3 dB(A)
vibrationstandard
ISO28927-2
vibrationvalue
<2.5 m/s²
eaccertified
Yes
eulegislation
2006/42/EC
eustandard
EN ISO 11148-6:2012
ukregulations
S.I. 2008/1597
ukstandard
EN ISO 11148-6:2012
