Features & Benefits
- Consistent torque over time, low meanshift.
- High power-to-weight ratio
- Lubrication free
- No wear on key parts.
Technical Information
Technical Specifications
Technical Specifications
SKU: 8431 0375 53
Manufacturer Atlas Copco

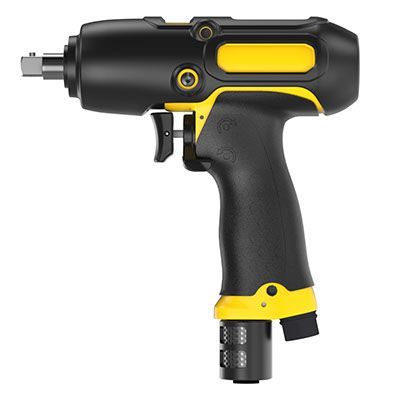

Model EP3PTX5 HR42-AT
Stock CodeC
Air Inlet 1/4 in.
Bolt Size - mm M4-M5
Drive size 1/4'' hex
Drive Type 1/4 in. hex
Free Speed (RPM) 4500
Length (mm) 154
Max Air Consumption (cfm) 9
Max Free Speed (rpm) 4500
Min Hose Size (mm) 8
Series EP PTX
Torque Range (Ft Lbs) 1.6 - 4
Torque Range (In Lbs) - 44
Torque Range (Nm) 2 - 5
Weight1.8 lbs
We strive to provide as much technical information as possible. If you need more tech data, let us know!
