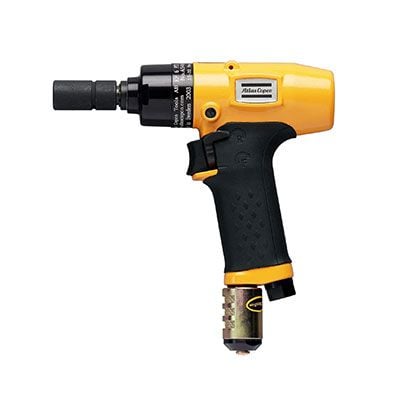

Click the image to zoom
Atlas Copco8431 0375 56
EP4PTX9 HR10-AT | EP4PTX9 HR10-AT, Pulse Tool,utoTrim, 4 - 9 Nm, 3300 rpm, 3/8'' square
The ideal choice if your operators need to speed up production with fast rundowns and short tightening cycles. It is a reliable and powerful shut-off pulse tool that automatically shuts off the air supply when the pre-set torque has reached.
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
8431 0375 56 | EP4PTX9 HR10-AT | EP4PTX9 HR10-AT, Pulse Tool,utoTrim, 4 - 9 Nm, 3300 rpm, 3/8'' squareEP4PTX9 HR10-AT
Price on request
Details
Product information
Overview
Atlas Copco 8431 0375 56
Autotrim, Hydraulic Pulse Tool, 3-7 Ft Lbs
The fastest, lightest and most powerful hydraulic shut-off pulse tool in the ErgoPulse range. In ErgoPulse shut-off tools the air supply is shut off as soon as the pre-set torque has been reached, minimizing operator influence. The result is increased accuracy and faster tightening.
Features:
- TRIM valve – A patented adjustable valve at the air outlet is used to maximize tool accuracy on one type of joint, which could be hard, medium or soft.
- High reliability.
- Consistent torque over time, low meanshift.
- High level of durability.
- High speed, short cycle times.
- One-handed operation.
- High power-to-weight ratio.
- No springs to wear out.
- No wear on key parts.
- High precision components.
- No reaction forces.
- Light, well-balanced tools.
- Low noise levels.
- Lubrication free.
| Technical Specifications | |
|---|---|
| airinletthread | 1/4 in |
| boltsize | M5 mm |
| csdistance | 22 mm |
| length | 164 mm |
| recommendedhosesize | 8 mm |
| squaredrive | 3/8 in |
| weight | 2 lb |
| modeltype | Pistol |
| shutoff | Yes |
| torquerangemax | 9 Nm |
| torquerangemin | 4 Nm |
| freespeed | 3300 r/min |
| airconsumptionunderload | 4 l/s |
| maxworkingpressure | 100 psig |
| nominalworkingpressure | 91 psi |
| soundpressure | <70 dB(A) |
| soundstandard | ISO15744 |
| sounduncertainty | 3 dB(A) |
| vibrationstandard | ISO28927-2 |
| vibrationvalue | <2.5 m/s² |
| eaccertified | Yes |
| eulegislation | 2006/42/EC |
| eustandard | EN ISO 11148-6:2012 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | EN ISO 11148-6:2012 |
| MPN | EP4PTX9 HR10-AT |
| Features & Benefits | |
| Consistent torque over time, low meanshift. | |
| High power-to-weight ratio | |
| No wear on key parts. | |
| Lubrication free | |
| High power-to-weight ratio,No wear on key parts. | |
