Features & Benefits
- High reliability and durability
- High speed, short cycle times.
- Lubrication free
- No springs to wear ou
Technical Information
Technical Specifications
Technical Specifications
SKU: 8431 0376 00

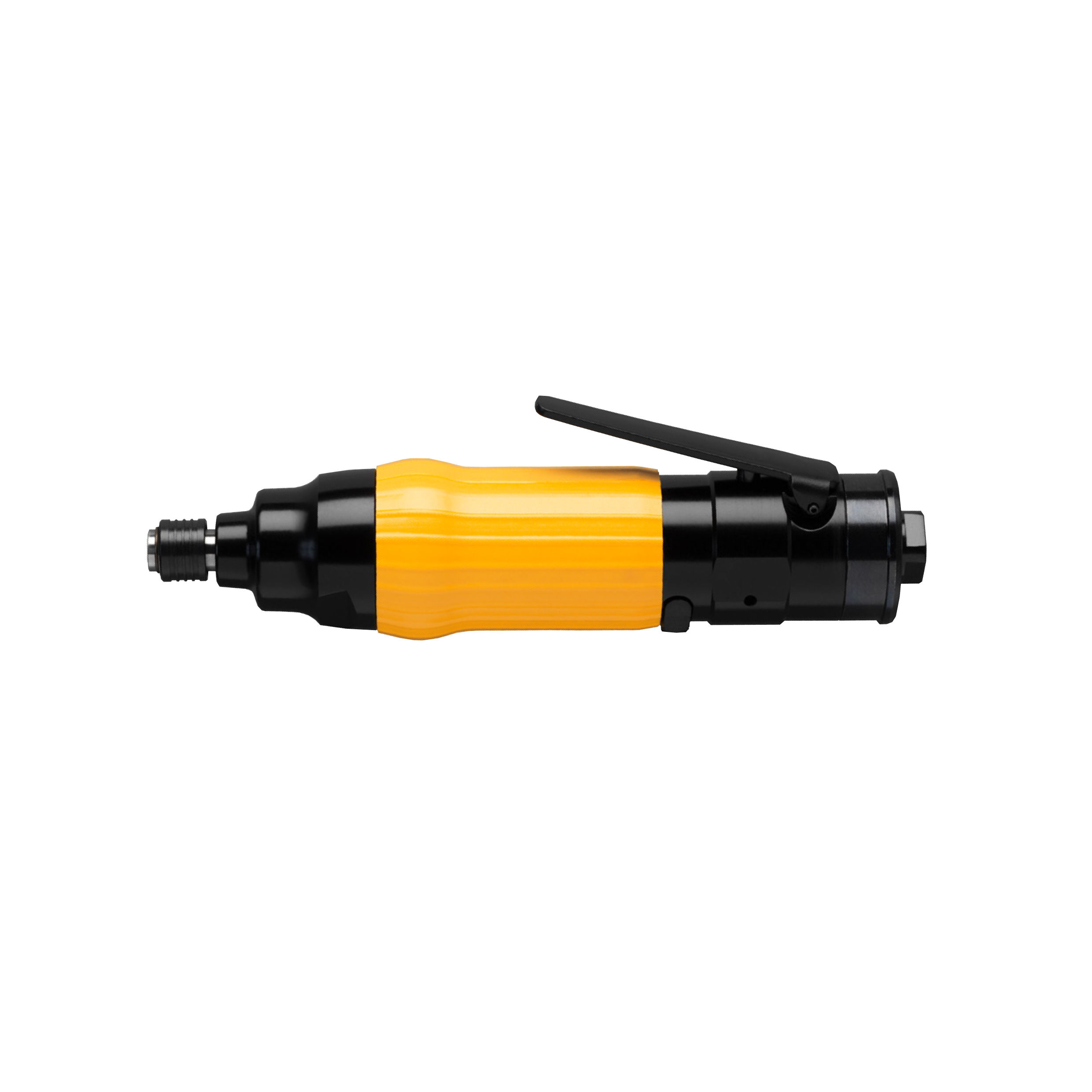

Manufacturer Atlas Copco
Model EP4PTX9 SR42
Stock CodeC
Air Inlet 1/4 in.
Bolt Size - mm M5
Drive size 1/4'' hex
Drive Type 1/4 in. hex
Free Speed (RPM) 3400
Length (mm) 207
Max Air Consumption (cfm) 9
Max Free Speed (rpm) 3400
Min Hose Size (mm) 8
Series EP PTX
Torque Range (Ft Lbs) 3 - 7
Torque Range (In Lbs) - 80
Torque Range (Nm) 4 - 9
Weight2 lbs
