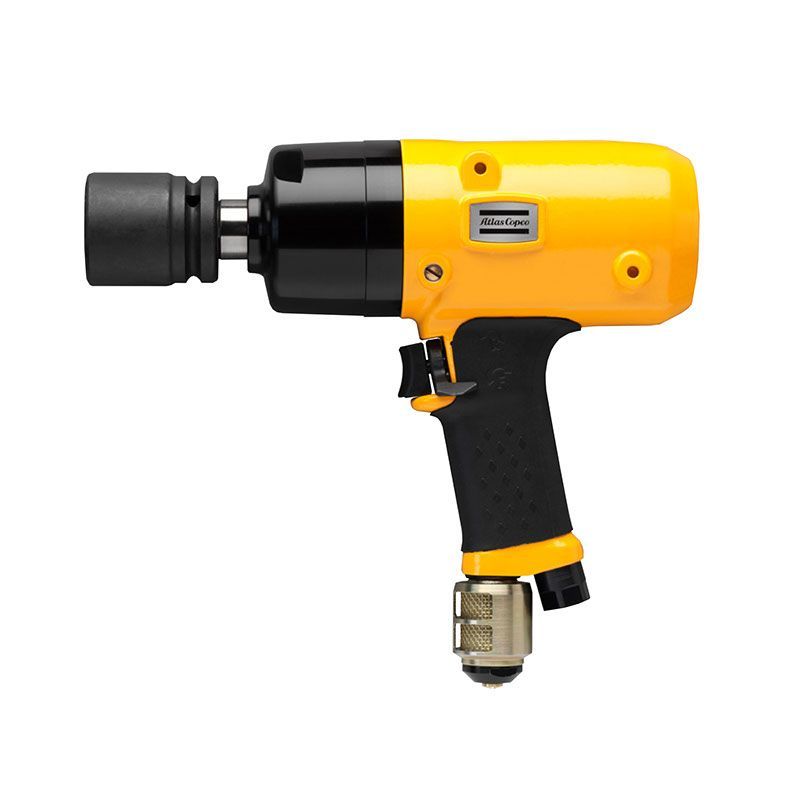

8431 0376 70 | EP15PTX250 HR20-RE | EP15PTX250 HR20-RE, Pulse Tool, TRIM-RE, 125 - 250 Nm, 4300 rpm, 3/4'' square

(0)No Reviews yet

The ideal choice if your operators need to speed up production with fast rundowns and short tightening cycles. It is a reliable and powerful shut-off pulse tool that automatically shuts off the air supply when the pre-set torque has reached.

Warning: California Proposition 65 | Trade Regulations Advisory Notice
Item Ships free
Order total must be over $999.99, under 20 lbs and shipping within continental USA

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Non-Returnable
Spare Parts, Specialty and Custom items are non-returnable and non-refundable
Back

Overview

Atlas Copco 8431 0376 70

Trim-Re, Hydraulic Pulse Tool, 92-184 Ft Lbs


The fastest, lightest and most powerful hydraulic shut-off pulse tool in the ErgoPulse range. In ErgoPulse shut-off tools the air supply is shut off as soon as the pre-set torque has been reached, minimizing operator influence. The result is increased accuracy and faster tightening.

Features:
  • TRIM valve – A patented adjustable valve at the air outlet is used to maximize tool accuracy on one type of joint, which could be hard, medium or soft.
  • High reliability.
  • Consistent torque over time, low meanshift.
  • High level of durability.
  • High speed, short cycle times.
  • One-handed operation.
  • High power-to-weight ratio.
  • No springs to wear out.
  • No wear on key parts.
  • High precision components.
  • No reaction forces.
  • Light, well-balanced tools.
  • Low noise levels.
  • Lubrication free.
Back

Features & Benefits

  • Consistent torque over time, low meanshift.
  • High power-to-weight ratio
  • Reporting model
  • Lubrication free
Back

Technical Specifications

SKU: 8431 0376 70
airinletthread
3/8 in
boltsize
M16 mm
csdistance
36.5 mm
length
216 mm
outputsize
3/4'
recommendedhosesize
13 mm
squaredrive
3/4 in
weight
6.8 lb
xgaguediameter
1.55 mm
modeltype
Pistol
outputtype
Square, Male
pulsingfreqccw
12-15 Hz
shutoff
Yes
fixedtransducertorqueccwservice
300 Nm
pulseunitcasingtighteningtorque
40 Nm
torquerangemax
250 Nm
torquerangemin
125 Nm
freespeed
4300 r/min
airconsumptionunderload
21 l/s
maxworkingpressure
100 psig
nominalworkingpressure
91 psi
soundpower
99 dB(A)
soundpressure
88 dB(A)
soundstandard
ISO15744
sounduncertainty
3 dB(A)
vibrationstandard
ISO28927-2
vibrationuncertainty
0.4 m/s²
vibrationvalue
6.5 m/s²
eaccertified
Yes
eulegislation
2006/42/EC
eustandard
EN ISO 11148-6:2012
ukregulations
S.I. 2008/1597
ukstandard
EN ISO 11148-6:2012
