Features & Benefits
- Consistent torque over time, low meanshift.
- High power-to-weight ratio
- Lubrication free
- No wear on key parts.
Technical Information
Technical Specifications
Technical Specifications
SKU: 8431 0376 72
Manufacturer Atlas Copco

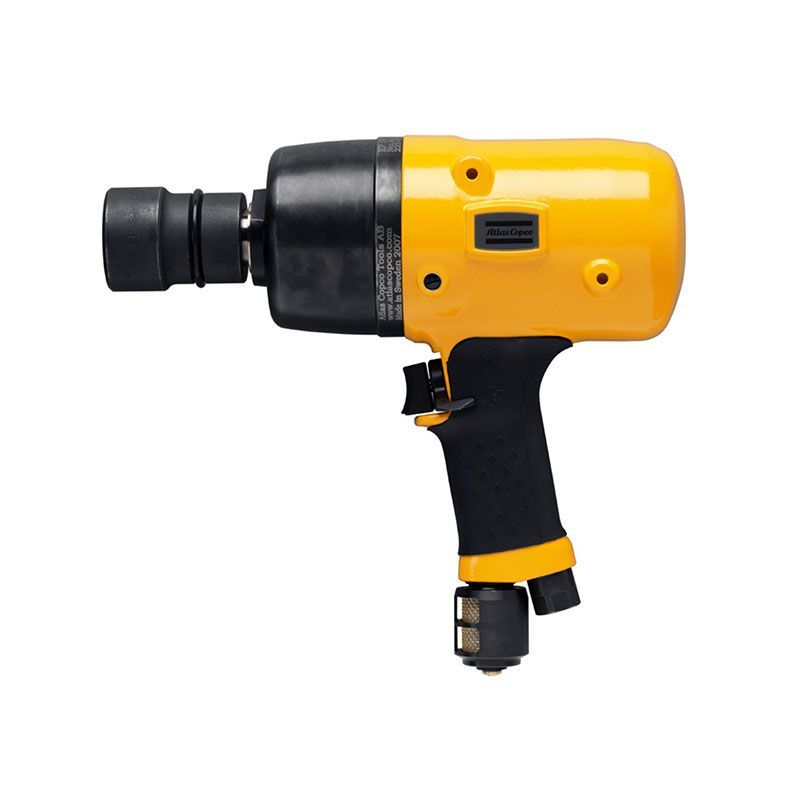

Model EP15PTX250 HR20-AT
Stock CodeC
Air Inlet 3/8 in.
Bolt Size - mm M12-M16
Drive size 3/4'' square
Drive Type 3/4 in. square
Free Speed (RPM) 4200
Length (mm) 216
Max Air Consumption (cfm) 45
Max Free Speed (rpm) 4200
Min Hose Size (mm) 13
Series EP PTX
Torque Range (Ft Lbs) 92 - 184
Torque Range (In Lbs) - 2213
Torque Range (Nm) 125 - 250
Weight6.8 lbs
