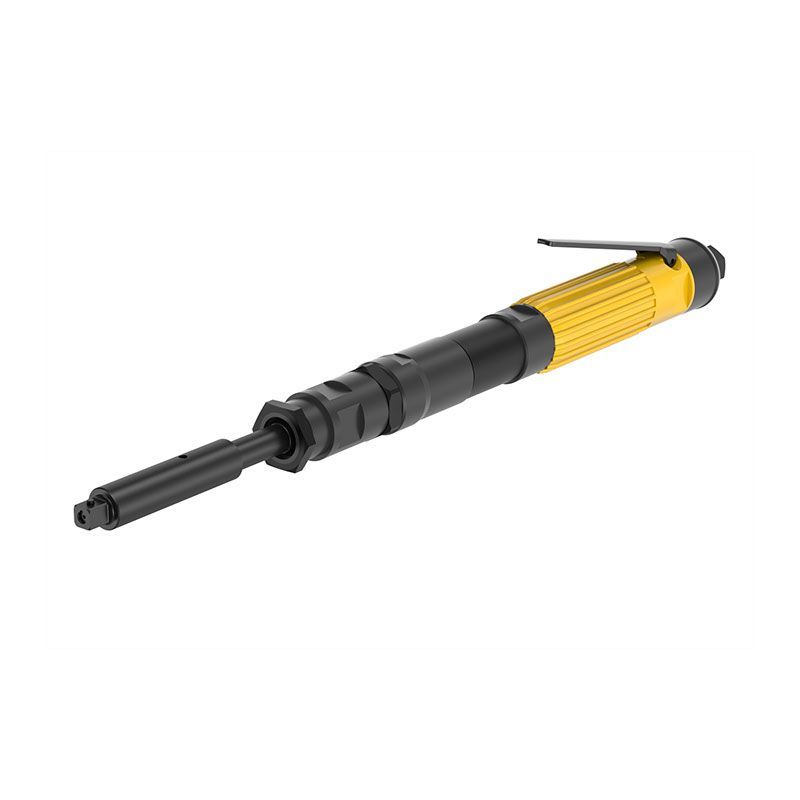

8431 0535 91 | LTD38 R32F-RE | Inline Nutrunner, 18 - 32 Nm, 560 rpm, 1/2'' square, reversible image 1
Click the image to zoom
Atlas Copco
  • Free shipping on orders over $999
  • Over 23 years in business
  • Free expert advice
  • In-house service and calibration department
  • Low price guarantee
  • Safe and secure checkout
Atlas Copco8431 0535 91

LTD38 R32F-RE | Inline Nutrunner, 18 - 32 Nm, 560 rpm, 1/2'' square, reversible

LTD Straight Shut-off Nutrunner

Price on request
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000

A specialist replies within one business day.

Warning:California Proposition 65Trade Regulations Advisory Notice

Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.

Documents4 files

Details

Product information

Overview

Atlas Copco 8431 0535 91

Inline Air Nutrunner, 13-24 Ft Lbs

Inline nutrunners from Atlas Copco are certified for accuracy and durability by major car manufacturers. They are easy to choose, easy to set, and easy to operate.
Accurate every time: Hard or soft joint? You don?t need to think about it. The tool gives the torque you install, independent of joint variations and variations in air pressure and lubrication. The clutch shuts off at the same torque, tightening after tightening.
Highest productivity: Instant disengagement of the clutch keeps torque over-shoot to a minimum even on the fastest tools. Our new models were developed to meet the most extreme requirements on operational speeds.
As always, we kept operator comfort in mind. The tools are well balanced, slim and comfortable to handle. Reaction forces are extremely low.
Job verification: For remote indication of clutch release function the tools can be equipped with air signal outlet ? RE. This is often used for counting the number of fasteners in a tightening cycle.
Remote control back head: A remote valve is connected to the back head of the LTD-RR tools allowing a better multiple.
  • Accessibility: Slim design allows the building of smooth, simple multiples or paired splndle designs. The absence of a clutch makes these tools shorter
  • Flexibility: The range of LTD tools provides you with the options you need to meet your requirements
  • Reversibility: Reversible LTD tools are available
Technical Specifications
airinletthread1/4 in
boltsizeM8 mm
csdistance20 mm
length546 mm
outputsize1/2'
recommendedhosesize10 mm
squaredrive1/2 in
weight5.5 lb
modeltypeStraight
outputtypeSquare, Male
reversibleYes
shutoffYes
torquerangemax32 Nm
torquerangemin18 Nm
freespeed560 r/min
airconsumptionatfreespeed16 l/s
maxworkingpressure100 psi
soundpower93 dB(A)
soundpressure82 dB(A)
soundstandardISO15744
sounduncertainty3 dB(A)
eaccertifiedYes
eulegislation2006/42/EC
eustandardISO 11148-6
ukregulationsS.I. 2008/1597
ukstandardISO 11148-6
MPNLTD38 R32F-RE
Features & Benefits
Fast rundown saves time
Torque independent of air pressure
Powerful motor
Reporting model
