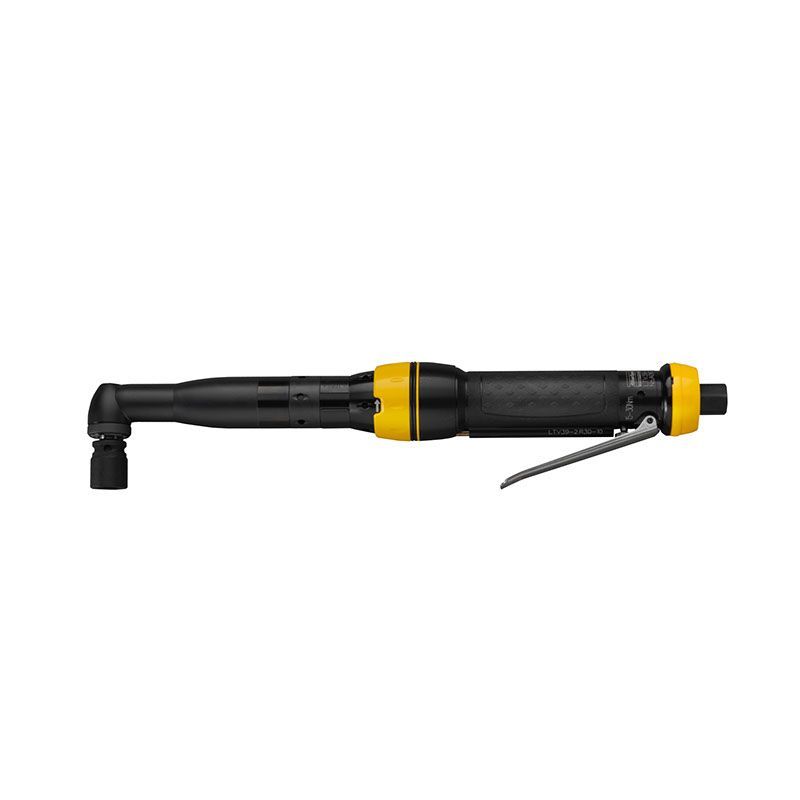

LTV38 R57-13 | Angle Nutrunner, 30 - 57 Nm, 280 rpm, 1/2'' square, reversible
LTV Shut-off Angle Nutrunner
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
8431 0603 51 | LTV38 R57-13 | Angle Nutrunner, 30 - 57 Nm, 280 rpm, 1/2'' square, reversibleLTV38 R57-13
Price on request
Details
Product information
Overview
Atlas Copco 8431 0603 51
Reversible Angle Pnuematic Nutrunner, 22-41 Ft Lb
The LTV series angle nutrunner range from Atlas Copco successfully combines two key performance factors – speed and accuracy. Consistently accurate, high-speed tightening is complemented by advanced ergonomic design, ensuring an unmatched level of productivity. All this is presented in a tool that is very easy to handle.
Features:
- Designed for high speed and small dimensions.
- Slim lightweight design.
- Soft, comfortable grip.
- Easy to reverse.
- Low reaction force.
- Square drive size: 1/4"
| Technical Specifications | |
|---|---|
| airinletthread | 1/4 in |
| angleheadcentretoside | 20 mm |
| angleheadheight | 41 mm |
| boltsize | M10 mm |
| length | 453 mm |
| recommendedhosesize | 10 mm |
| squaredrive | 1/2 in |
| weight | 4.8 lb |
| fordcertification | CA N12 TR |
| modeltype | Angle |
| reversible | Yes |
| shutoff | Yes |
| freespeed | 280 r/min |
| airconsumptionatfreespeed | 16 l/s |
| maxworkingpressure | 100 psig |
| soundpower | 93 dB(A) |
| soundpressure | 82 dB(A) |
| soundstandard | ISO15744 |
| sounduncertainty | 3 dB(A) |
| vibrationstandard | ISO28927-2 |
| vibrationvalue | <2.5 m/s² |
| eaccertified | Yes |
| eulegislation | 2006/42/EC |
| eustandard | ISO 11148-6 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | ISO 11148-6 |
| MPN | LTV38 R57-13 |
| Features & Benefits | |
| Highest reliability when tightening M5-M12 screws | |
| Small, durable gears | |
| Precise clutch | |
| Spiral cut angle gears | |
| Small | |
| durable gears | |
