Atlas Copco8431 0603 75

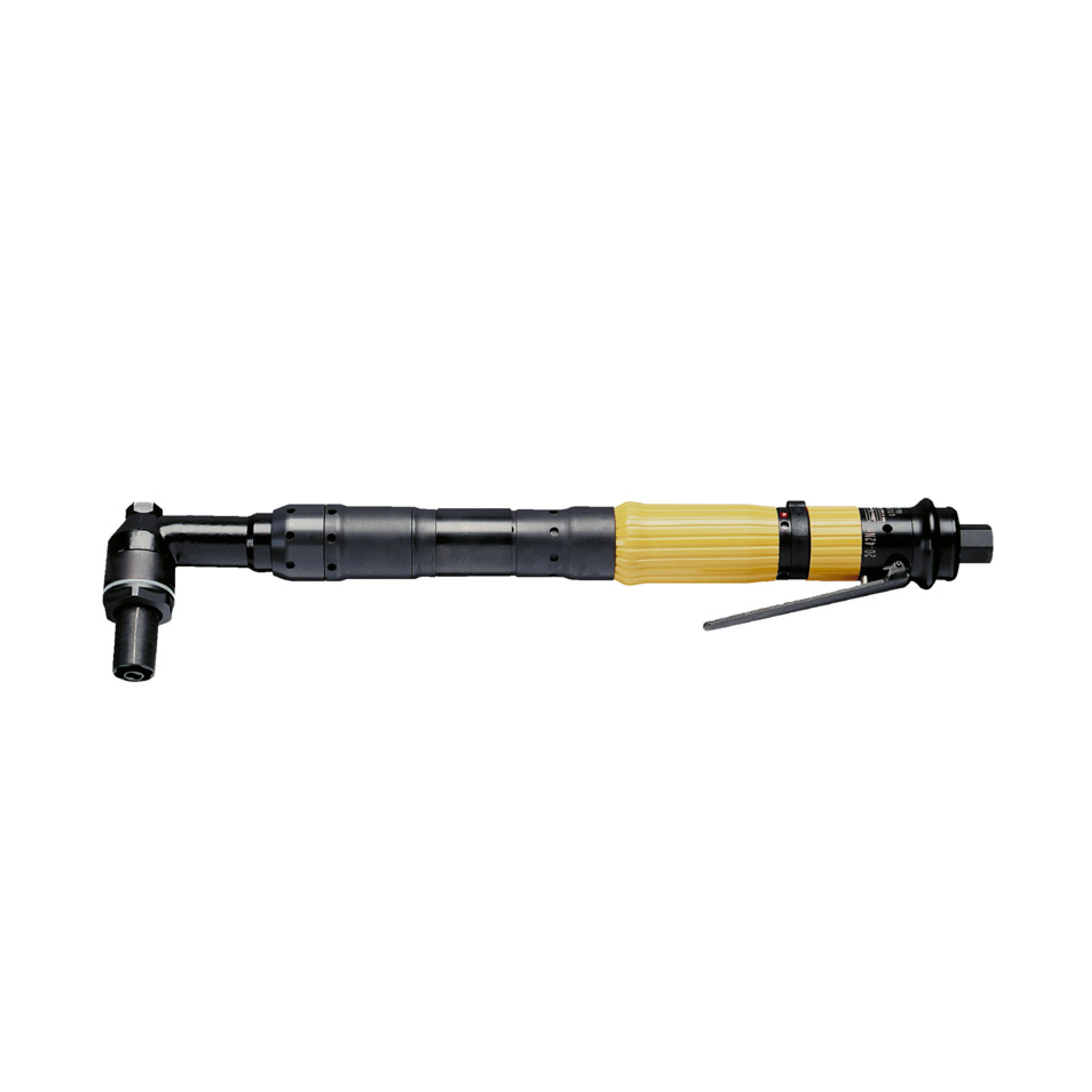

LTV38 R42 HAD | Angle Nutrunner, 20 - 42 Nm, 430 rpm
LTV Hold and Drive Shut-Off Nutrunner
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
8431 0603 75 | LTV38 R42 HAD | Angle Nutrunner, 20 - 42 Nm, 430 rpmLTV38 R42 HAD
Price on request
Details
Product information
Overview
Atlas Copco 8431 0603 75
Ltv38 R42 Had, Hold And Drive, Angle Head, Nutrunner, 15-31 Ft Lbs
Threaded fasteners of the hold and drive type, used for example on shock absorbers, require special hold and drive tools. Atlas Copco offers a complete range of standard tools for your hold and drive applications. The range of angle nutrunners includes three basic head sizes. A wide range of sockets and holders with different length and geometry are available, such as hex, surface drive, two flats, Torx and bitholders
- With a wide range of hold and drive tools and accessories, Atlas Copco meets your needs for most applications within this field.
- Atlas Copco hold and drive tools provide you with the best quality and durability to reduce downtime and ensure consistently high accuracy.
- Reaction torque is absorbed while the bolt is gripped during assembly.
- HAD sockets are available in three different lengths.
- Special sockets available upon request.
- Also suitable for Hi Lok/Hi Shear.
| Technical Specifications | |
|---|---|
| airinletthread | 1/4 in |
| angleheadcentretoside | 20 mm |
| angleheadheight | 41 mm |
| boltsize | M8 mm |
| length | 453 mm |
| recommendedhosesize | 10 mm |
| weight | 4.8 lb |
| fordcertification | CA N10/11 TR |
| frontpartinterface | 50 HAD |
| modeltype | Angle |
| reversible | Yes |
| shutoff | Yes |
| freespeed | 430 r/min |
| airconsumptionatfreespeed | 10 l/s |
| maxworkingpressure | 100 psig |
| soundpower | 93 dB(A) |
| soundpressure | 82 dB(A) |
| soundstandard | ISO15744 |
| sounduncertainty | 3 dB(A) |
| vibrationstandard | ISO28927-2 |
| vibrationvalue | <2.5 m/s² |
| eaccertified | Yes |
| eulegislation | 2006/42/EC |
| eustandard | ISO 11148-6 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | ISO 11148-6 |
| MPN | LTV38 R42 HAD |
| Features & Benefits | |
| Especially suitable for shock absorber assembly | |
| For use on hold and drive bolts | |
| One part is held and the other is tightened from the same side | |
| Also suitable for break-away bolts, Hi Lok/Hi Shear | |
| Especially suitable for shock absorber assembly | |
| Also suitable for break-away bolts | |
| Hi Lok/Hi Shear | |
