Atlas Copco8431 0610 21

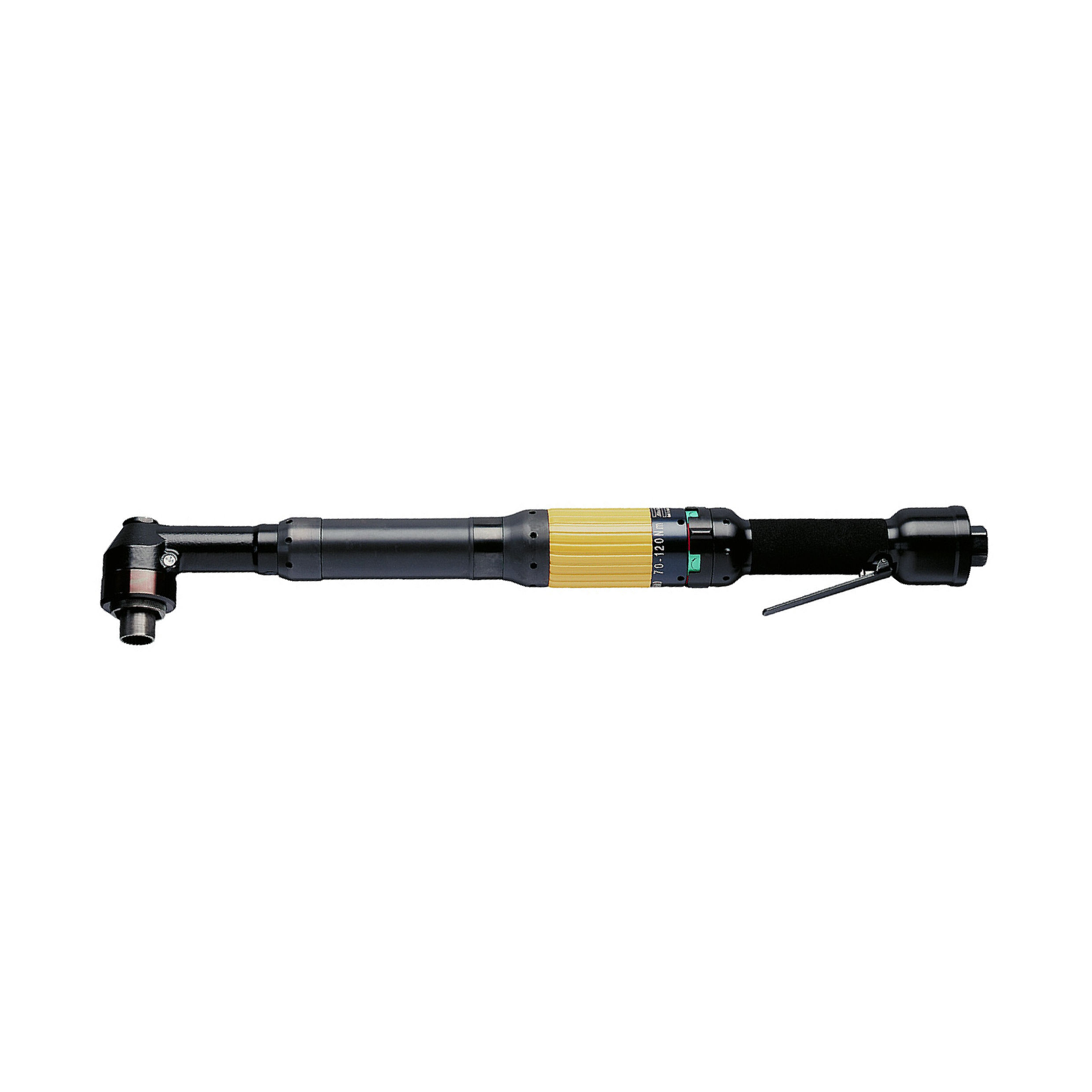

LTV48 R200 FS | Angle Nutrunner, flush socket, 115 - 200 Nm, 100 rpm
LTV Shut-off Angle Nutrunner
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
8431 0610 21 | LTV48 R200 FS | Angle Nutrunner, flush socket, 115 - 200 Nm, 100 rpmLTV48 R200 FS
Price on request
Details
Product information
Overview
Atlas Copco 8431 0610 21
Flush Socket Angle Pnuematic Nutrunner, 85-148 Ft Lb
The LTV series angle nutrunner range from Atlas Copco successfully combines two key performance factors – speed and accuracy. Consistently accurate, high-speed tightening is complemented by advanced ergonomic design, ensuring an unmatched level of productivity. All this is presented in a tool that is very easy to handle.
Features:
- Designed for high speed and small dimensions.
- Slim lightweight design.
- Soft, comfortable grip.
- Easy to reverse.
- Low reaction force.
- Square drive size: 1/4"
| Technical Specifications | |
|---|---|
| airinletthread | 1/2 in |
| angleheadcentretoside | 25 mm |
| angleheadheight | 70 mm |
| boltsize | M14 mm |
| length | 610 mm |
| recommendedhosesize | 12.8 mm |
| socketsize | 19 mm |
| weight | 8.3 lb |
| frontpartinterface | 200 FS |
| modeltype | Angle |
| reversible | Yes |
| shutoff | Yes |
| freespeed | 100 r/min |
| airconsumptionatfreespeed | 28 l/s |
| maxworkingpressure | 100 psig |
| soundpower | 95 dB(A) |
| soundpressure | 84 dB(A) |
| soundstandard | ISO15744 |
| sounduncertainty | 3 dB(A) |
| vibrationstandard | ISO28927-2 |
| vibrationvalue | <2.5 m/s² |
| eaccertified | Yes |
| eulegislation | 2006/42/EC |
| eustandard | ISO 11148-6 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | ISO 11148-6 |
| MPN | LTV48 R200 FS |
| Features & Benefits | |
| Robust, reliable tool | |
| Reversible for torques up to 200 Nm | |
| Comfortable to operate due to lowweight and smooth handles | |
| Spiral cut angle gears | |
| Robust | |
| reliable tool | |
