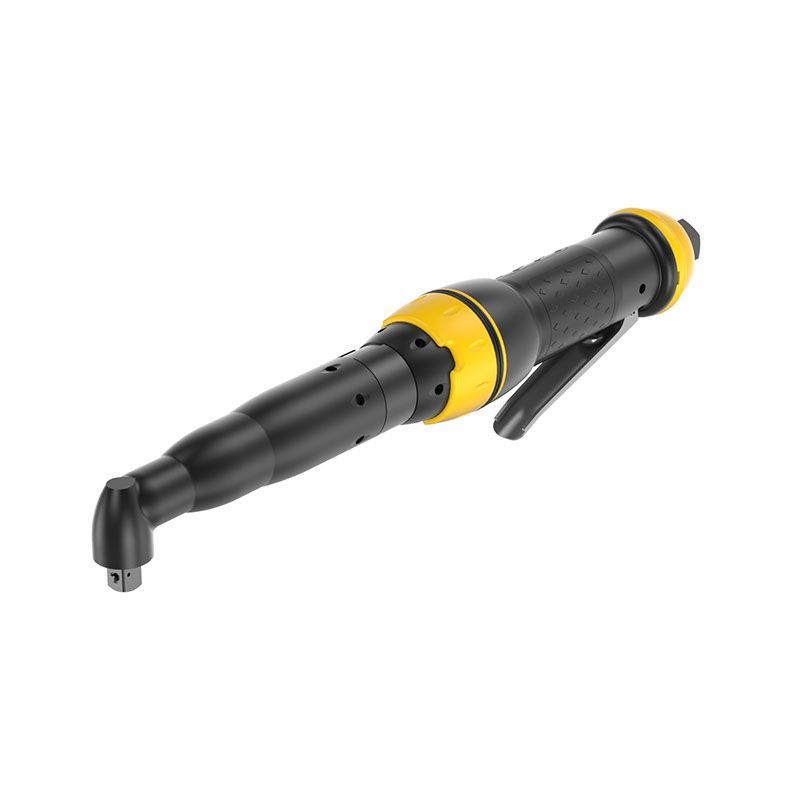

Atlas Copco 8431 0610 32 | LTV48 R200 HAD | Angle Nutrunner, 115 - 200 Nm, 100 rpm

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Atlas Copco 8431 0610 32 | LTV48 R200 HAD | Angle Nutrunner, 115 - 200 Nm, 100 rpm

Call for Price
Atlas Copco

Details

Atlas Copco 8431 0610 32

Ltv48 R200 Had, Hold And Drive, Angle Head, Nutrunner, 85-150 Ft Lbs


Threaded fasteners of the hold and drive type, used for example on shock absorbers, require special hold and drive tools. Atlas Copco offers a complete range of standard tools for your hold and drive applications. The range of angle nutrunners includes three basic head sizes. A wide range of sockets and holders with different length and geometry are available, such as hex, surface drive, two flats, Torx and bitholders

  • With a wide range of hold and drive tools and accessories, Atlas Copco meets your needs for most applications within this field.
  • Atlas Copco hold and drive tools provide you with the best quality and durability to reduce downtime and ensure consistently high accuracy.
  • Reaction torque is absorbed while the bolt is gripped during assembly.
  • HAD sockets are available in three different lengths.
  • Special sockets available upon request.
  • Also suitable for Hi Lok/Hi Shear.

LTV Hold and Drive Shut-Off Nutrunner

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Features & Benefits

  • Especially suitable for shock absorber assembly
  • For use on hold and drive bolts
  • Also suitable for break-away bolts, Hi Lok/Hi Shear
  • One part is held and the other is tightened from the same side

Technical Information

Technical Specifications

Technical Specifications

SKU: 8431 0610 32
Manufacturer Atlas Copco
Model LTV48 R200 HAD
Stock CodeC
Air Inlet 1/2 in.
Bolt Size - mm M14
Drive size 14 mm
Drive Type 14 mm
Free Speed (RPM) 100
Length (mm) 100
Max Air Consumption (cfm) 59
Max Free Speed (rpm) 100
Min Hose Size (mm) 12.5
Series LTV
Torque Range (Ft Lbs) 85 - 150
Torque Range (In Lbs) - 1770
Torque Range (Nm) 115 - 200
Weight7.3 lbs

We strive to provide as much technical information as possible. If you need more tech data, let us know!

Technical Documents

We are always wanting to provide more information! In need of a technical document? Let us know!
