8431 0631 09 | LTV39-2 R48-B10 | Reversible Angle Pnuematic Nutrunner, 18-35 ft lb
Overview

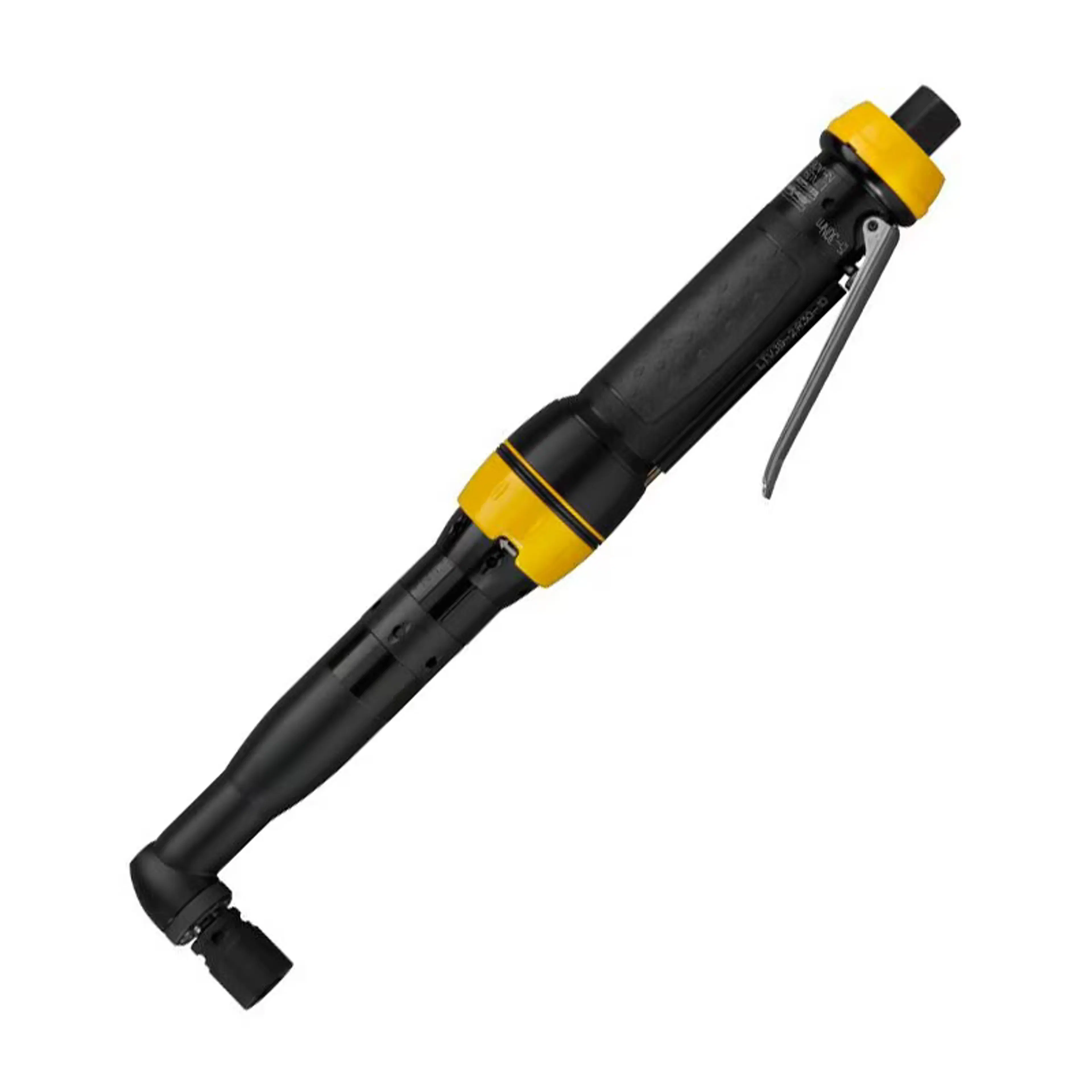

Atlas Copco 8431 0631 09
Reversible Angle Pnuematic Nutrunner, 18-35 Ft Lb
The LTV series angle nutrunner range from Atlas Copco successfully combines two key performance factors – speed and accuracy. Consistently accurate, high-speed tightening is complemented by advanced ergonomic design, ensuring an unmatched level of productivity. All this is presented in a tool that is very easy to handle.
Features:- Designed for high speed and small dimensions.
- Slim lightweight design.
- Soft, comfortable grip.
- Easy to reverse.
- Low reaction force.
- Square drive size: 1/4"
Technical Specifications
Model
LTV39-2 R48-B10
Recommended Torque Range (Ft Lb)
18-35
Drive size
3/8'' square
Manufacturer
Atlas Copco
Length (mm)
405
Min Torque (Ft Lb)
18
Max Air Consumption (cfm)
34
Free Speed (RPM)
560
SKU
8431 0631 09
Stock Code
3
Air Inlet
1/4 in.
Style
Angle Head
Clutch Type
Auto Shut Off
Max Torque (In Lb)
425
Max Torque (Ft Lb)
35
Min Torque (Nm)
24
Max Torque (Nm)
48
Bolt Size - mm
M8
Max Free Speed (rpm)
560
Weight (lbs)
3.7
Drive Type
3/8 in. square
Min Hose Size (mm)
10
Technical Documents
We are always wanting to provide more information! In need of a technical document? Let us know!
