Features & Benefits
- Fastest nutrunners of this type
- Powerful motor
- Spiral cut angle gears
- Consistently high accuracy
Technical Information
Technical Specifications
Technical Specifications
SKU: 8431 0631 12
Manufacturer Atlas Copco

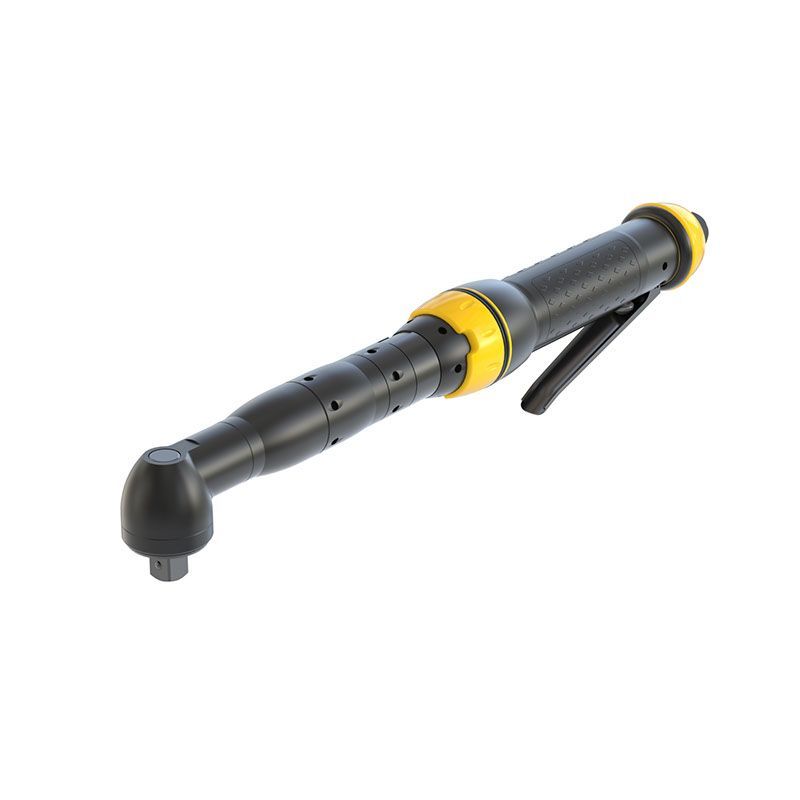

Model LTV39-2 R56-B13
Stock CodeC
Air Inlet 1/4 in.
Bolt Size - mm M10
Drive size 1/2'' square
Drive Type 1/2 in. square
Free Speed (RPM) 460
Length (mm) 425
Max Air Consumption (cfm) 34
Max Free Speed (rpm) 460
Min Hose Size (mm) 10
Series LTV
Torque Range (Ft Lbs) 21 - 41
Torque Range (In Lbs) - 496
Torque Range (Nm) 28 - 56
Weight4.4 lbs
