Atlas Copco8431 0631 21

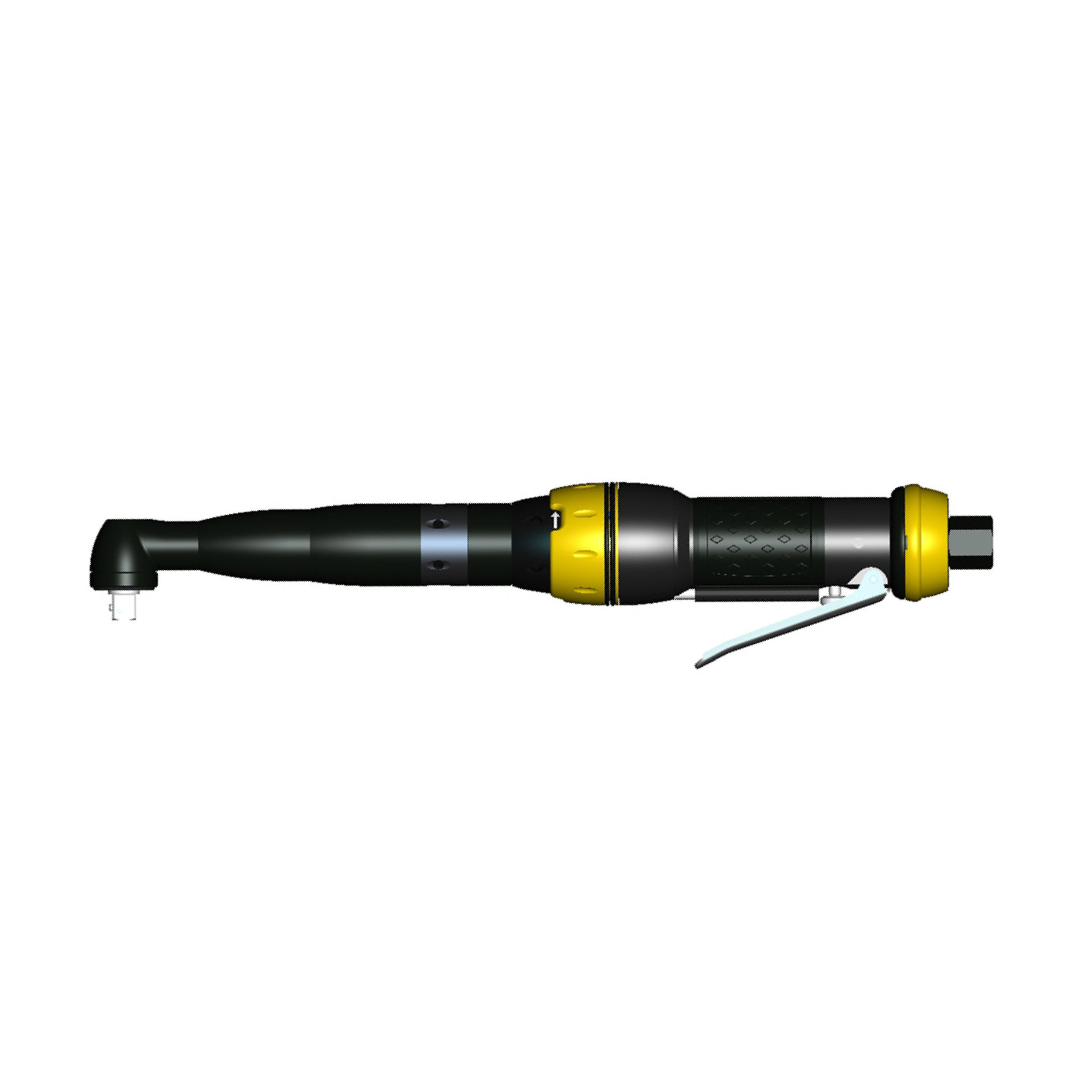

LTV29-2 R16-10 | Angle Nutrunner, 9 - 16 Nm, 850 rpm, 3/8'' square, reversible
LTV Shut-off Angle Nutrunner
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
8431 0631 21 | LTV29-2 R16-10 | Angle Nutrunner, 9 - 16 Nm, 850 rpm, 3/8'' square, reversibleLTV29-2 R16-10
Price on request
Details
Product information
Overview
Atlas Copco 8431 0631 21
Reversible Angle Pnuematic Nutrunner, 7-12 Ft Lb
The LTV series angle nutrunner range from Atlas Copco successfully combines two key performance factors – speed and accuracy. Consistently accurate, high-speed tightening is complemented by advanced ergonomic design, ensuring an unmatched level of productivity. All this is presented in a tool that is very easy to handle.
Features:
- Designed for high speed and small dimensions.
- Slim lightweight design.
- Soft, comfortable grip.
- Easy to reverse.
- Low reaction force.
- Square drive size: 1/4"
| Technical Specifications | |
|---|---|
| airinletthread | 1/4 in |
| angleheadcentretoside | 11 mm |
| angleheadheight | 27 mm |
| boltsize | M6 mm |
| length | 351 mm |
| outputsize | 3/8' |
| recommendedhosesize | 10 mm |
| squaredrive | 3/8 in |
| weight | 2.9 lb |
| fordcertification | CA N6/7 TR |
| modeltype | Angle |
| outputtype | Square, Male |
| reversible | Yes |
| shutoff | Yes |
| torquerangemax | 16 Nm |
| torquerangemin | 9 Nm |
| freespeed | 850 r/min |
| airconsumptionatfreespeed | 10 l/s |
| maxworkingpressure | 100 psig |
| soundpressure | 80 dB(A) |
| soundstandard | ISO15744 |
| sounduncertainty | 3 dB(A) |
| vibrationstandard | ISO28927-2 |
| vibrationvalue | <2.5 m/s² |
| eaccertified | Yes |
| eulegislation | 2006/42/EC |
| eustandard | ISO 11148-6 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | ISO 11148-6 |
| MPN | LTV29-2 R16-10 |
| Features & Benefits | |
| Designed for high speed and small dimensions | |
| Slim lightweight design | |
| Low reaction force | |
| Spiral cut angle gears | |
| Designed for high speed and small dimensions | |
