8431 0631 29 | LTV29-2 R24-10 | Angle Nutrunner, 12 - 24 Nm, 640 rpm, 3/8'' square, reversible
Overview

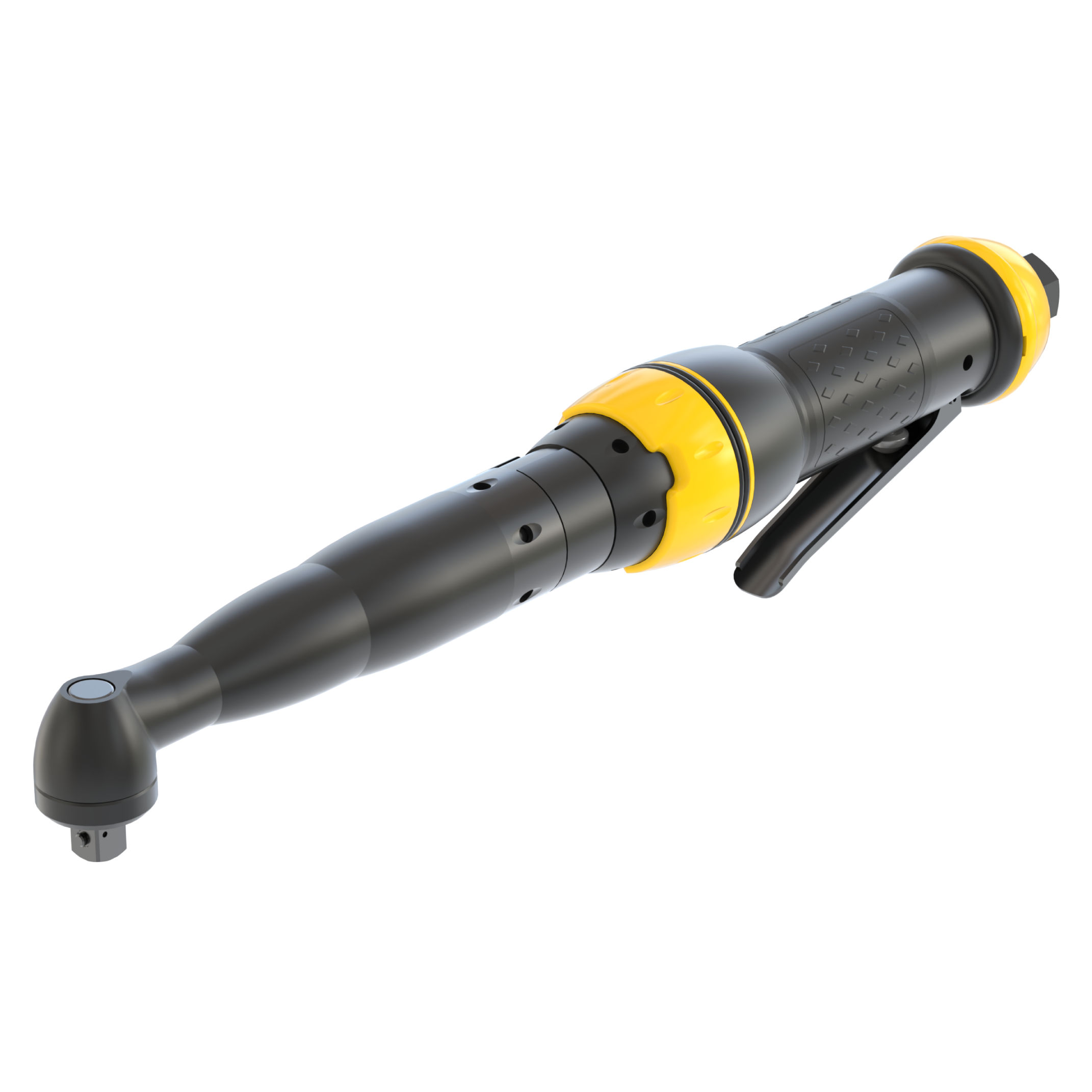

Atlas Copco 8431 0631 29
Reversible Angle Pnuematic Nutrunner, 9-18 Ft Lb
The LTV series angle nutrunner range from Atlas Copco successfully combines two key performance factors – speed and accuracy. Consistently accurate, high-speed tightening is complemented by advanced ergonomic design, ensuring an unmatched level of productivity. All this is presented in a tool that is very easy to handle.
Features:- Designed for high speed and small dimensions.
- Slim lightweight design.
- Soft, comfortable grip.
- Easy to reverse.
- Low reaction force.
- Square drive size: 1/4"
Features & Benefits
- Designed for high speed and small dimensions
- Slim lightweight design
- Spiral cut angle gears
- Low reaction force
Technical Specifications
Model
LTV29-2 R24-10
Recommended Torque Range (Ft Lb)
9-18
Drive size
3/8'' square
Manufacturer
Atlas Copco
Length (mm)
374
Min Torque (Ft Lb)
9
Max Air Consumption (cfm)
21
Free Speed (RPM)
640
SKU
8431 0631 29
Stock Code
3
Air Inlet
1/4 in.
Style
Angle Head
Clutch Type
Auto Shut Off
Max Torque (In Lb)
212
Max Torque (Ft Lb)
18
Min Torque (Nm)
12
Max Torque (Nm)
24
Bolt Size - mm
M8
Max Free Speed (rpm)
640
Weight (lbs)
3.1
Series
LTV
Drive Type
3/8 in. square
Min Hose Size (mm)
10
