8431 0631 37 | LTV29-2 R30-10 | Angle Nutrunner, 15 - 30 Nm, 500 rpm, 3/8'' square, reversible
Overview

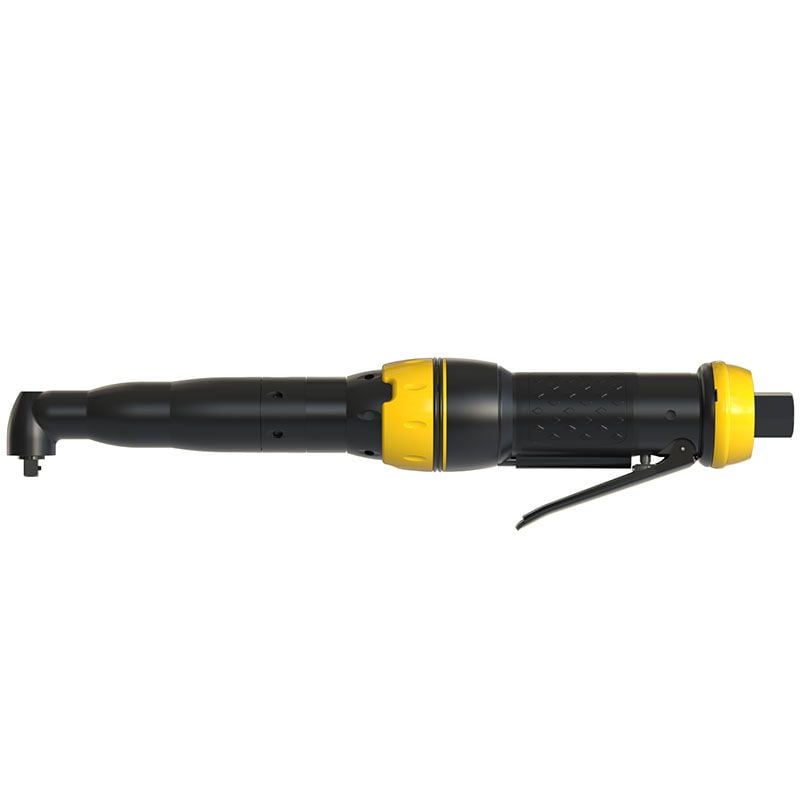

Atlas Copco 8431 0631 37
Reversible Angle Pnuematic Nutrunner, 11-22 Ft Lb
The LTV series angle nutrunner range from Atlas Copco successfully combines two key performance factors – speed and accuracy. Consistently accurate, high-speed tightening is complemented by advanced ergonomic design, ensuring an unmatched level of productivity. All this is presented in a tool that is very easy to handle.
Features:- Designed for high speed and small dimensions.
- Slim lightweight design.
- Soft, comfortable grip.
- Easy to reverse.
- Low reaction force.
- Square drive size: 1/4"
Features & Benefits
- Designed for high speed and small dimensions
- Slim lightweight design
- Spiral cut angle gears
- Low reaction force
Technical Specifications
SKU: 8431 0631 37
airinletthread
1/4 in
angleheadcentretoside
14 mm
angleheadheight
30 mm
boltsize
M8 mm
length
374 mm
outputsize
3/8'
recommendedhosesize
10 mm
squaredrive
3/8 in
weight
3.1 lb
fordcertification
CA N9 TR
modeltype
Angle
outputtype
Square, Male
reversible
Yes
shutoff
Yes
torquerangemax
30 Nm
torquerangemin
15 Nm
freespeed
500 r/min
airconsumptionatfreespeed
10 l/s
maxworkingpressure
100 psig
soundpressure
80 dB(A)
soundstandard
ISO15744
sounduncertainty
3 dB(A)
vibrationstandard
ISO28927-2
vibrationvalue
<2.5 m/s²
eaccertified
Yes
eulegislation
2006/42/EC
eustandard
ISO 11148-6
ukregulations
S.I. 2008/1597
ukstandard
ISO 11148-6
