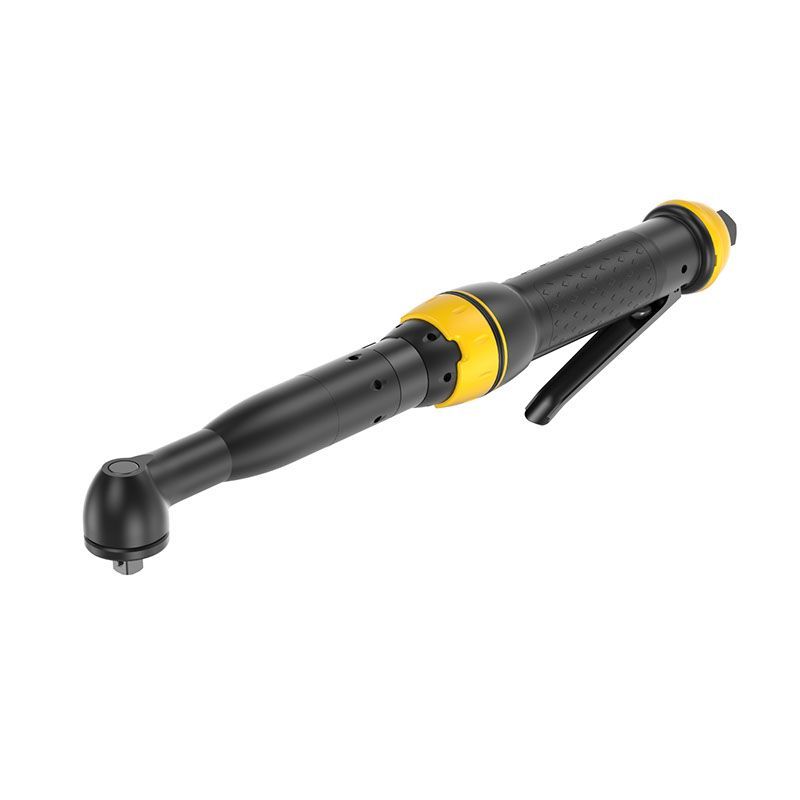

8431 0633 19 | LTV39-2 R30-10 | Angle Nutrunner, 15 - 30 Nm, 870 rpm, 3/8'' square, reversible
Overview
Atlas Copco 8431 0633 19
Reversible Angle Pnuematic Nutrunner, 11-22 Ft Lb
The LTV series angle nutrunner range from Atlas Copco successfully combines two key performance factors – speed and accuracy. Consistently accurate, high-speed tightening is complemented by advanced ergonomic design, ensuring an unmatched level of productivity. All this is presented in a tool that is very easy to handle.
Features:- Designed for high speed and small dimensions.
- Slim lightweight design.
- Soft, comfortable grip.
- Easy to reverse.
- Low reaction force.
- Square drive size: 1/4"
Features & Benefits
- Fastest nutrunners of this type
- Powerful motor
- Spiral cut angle gears
- Consistently high accuracy
Technical Specifications
Model
LTV39-2 R30-10
Recommended Torque Range (Ft Lb)
11-22
Drive size
3/8'' square
Manufacturer
Atlas Copco
Length (mm)
385
Min Torque (Ft Lb)
11
Max Air Consumption (cfm)
34
Free Speed (RPM)
870
SKU
8431 0633 19
Stock Code
3
Air Inlet
1/4 in.
Style
Angle Head
Clutch Type
Auto Shut Off
Max Torque (In Lb)
266
Max Torque (Ft Lb)
22
Min Torque (Nm)
15
Max Torque (Nm)
30
Bolt Size - mm
M8
Max Free Speed (rpm)
870
Weight (lbs)
3.5
Series
LTV
Drive Type
3/8 in. square
Min Hose Size (mm)
10
