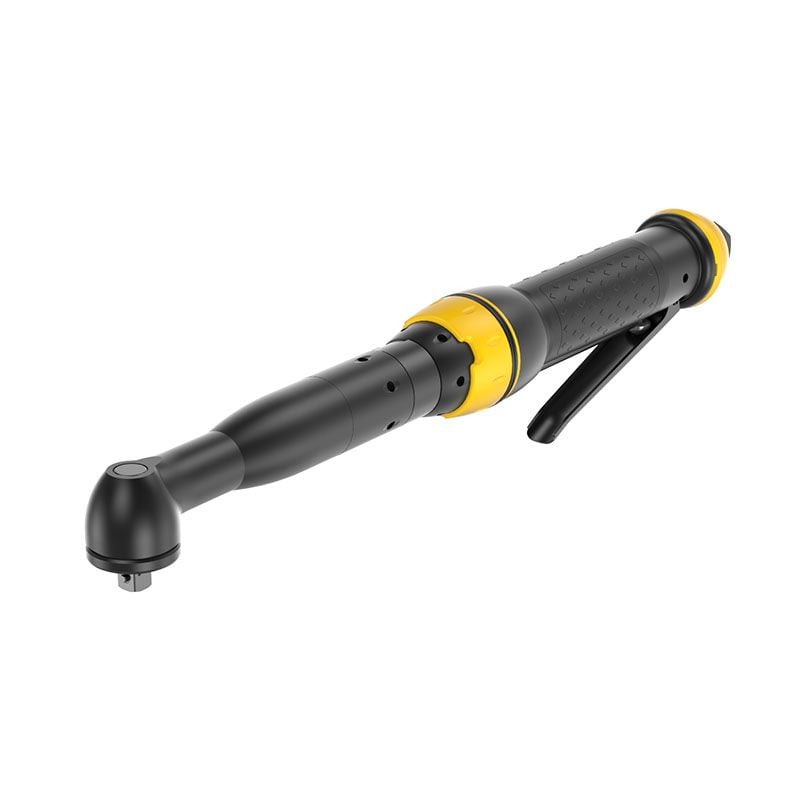

8431 0633 24 | LTV39-2 R37-10 | Angle Nutrunner, 22 - 37 Nm, 708 rpm, 3/8'' square, reversible
Overview
Atlas Copco 8431 0633 24
Reversible Angle Pnuematic Nutrunner, 16-27 Ft Lb
The LTV series angle nutrunner range from Atlas Copco successfully combines two key performance factors – speed and accuracy. Consistently accurate, high-speed tightening is complemented by advanced ergonomic design, ensuring an unmatched level of productivity. All this is presented in a tool that is very easy to handle.
Features:- Designed for high speed and small dimensions.
- Slim lightweight design.
- Soft, comfortable grip.
- Easy to reverse.
- Low reaction force.
- Square drive size: 1/4"
Features & Benefits
- Fastest nutrunners of this type
- Powerful motor
- Spiral cut angle gears
- Consistently high accuracy
Technical Specifications
Model
LTV39-2 R37-10
Recommended Torque Range (Ft Lb)
16-27
Drive size
3/8'' square
Manufacturer
Atlas Copco
Length (mm)
405
Min Torque (Ft Lb)
16
Max Air Consumption (cfm)
34
Free Speed (RPM)
708
SKU
8431 0633 24
Stock Code
3
Air Inlet
1/4 in.
Style
Angle Head
Clutch Type
Auto Shut Off
Max Torque (In Lb)
327
Max Torque (Ft Lb)
27
Min Torque (Nm)
22
Max Torque (Nm)
37
Bolt Size - mm
M8
Max Free Speed (rpm)
708
Weight (lbs)
3.7
Series
LTV
Drive Type
3/8 in. square
Min Hose Size (mm)
10
