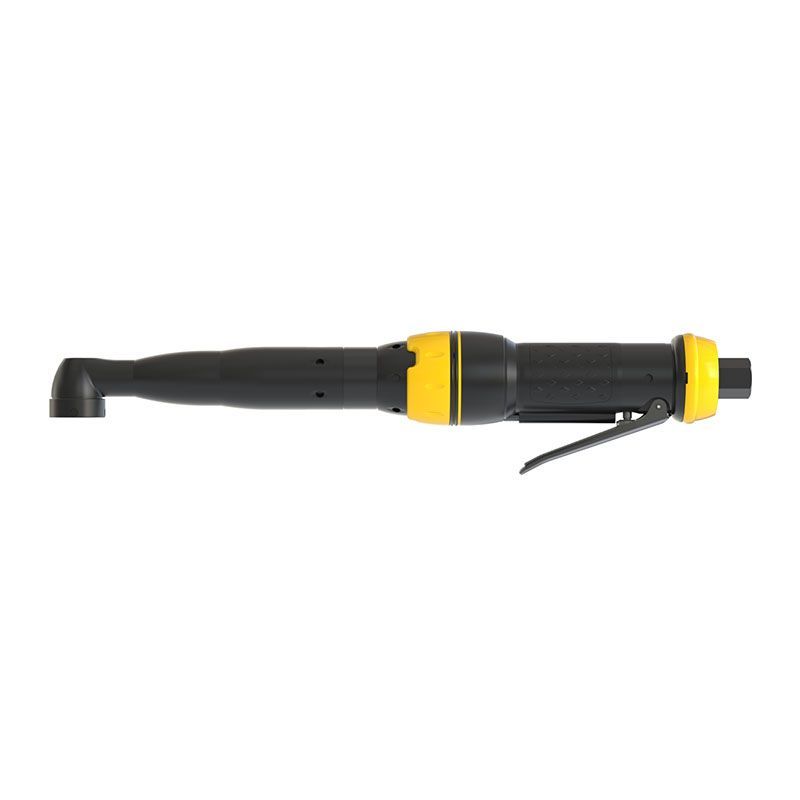

LTV29-2 R24 FS | Angle Nutrunner, flush socket, 12 - 24 Nm, 640 rpm
LTV Shut-off Angle Nutrunner
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
8431 0634 51 | LTV29-2 R24 FS | Angle Nutrunner, flush socket, 12 - 24 Nm, 640 rpmLTV29-2 R24 FS
Price on request
Details
Product information
Overview
Atlas Copco 8431 0634 51
Flush Socket Angle Pnuematic Nutrunner, 9-18 Ft Lb
The LTV series angle nutrunner range from Atlas Copco successfully combines two key performance factors – speed and accuracy. Consistently accurate, high-speed tightening is complemented by advanced ergonomic design, ensuring an unmatched level of productivity. All this is presented in a tool that is very easy to handle.
Features:
- Designed for high speed and small dimensions.
- Slim lightweight design.
- Soft, comfortable grip.
- Easy to reverse.
- Low reaction force.
- Square drive size: 1/4"
| Technical Specifications | |
|---|---|
| airinletthread | 1/4 in |
| angleheadcentretoside | 15 mm |
| angleheadheight | 32 mm |
| boltsize | M8 mm |
| length | 375 mm |
| outputsize | 30 FS |
| recommendedhosesize | 10 mm |
| weight | 3.1 lb |
| fordcertification | CA N8 TR |
| frontpartinterface | 30 FS |
| modeltype | Angle |
| outputtype | Flush Socket |
| reversible | Yes |
| shutoff | Yes |
| torquerangemax | 24 Nm |
| torquerangemin | 12 Nm |
| freespeed | 640 r/min |
| airconsumptionatfreespeed | 10 l/s |
| maxworkingpressure | 100 psig |
| soundpower | 91 dB(A) |
| soundpressure | 80 dB(A) |
| soundstandard | ISO15744 |
| sounduncertainty | 3 dB(A) |
| vibrationstandard | ISO28927-2 |
| vibrationvalue | <2.5 m/s² |
| eaccertified | Yes |
| eulegislation | 2006/42/EC |
| eustandard | ISO 11148-6 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | ISO 11148-6 |
| MPN | LTV29-2 R24 FS |
| Features & Benefits | |
| Designed for high speed and small dimensions | |
| Slim lightweight design | |
| Low reaction force | |
| Spiral cut angle gears | |
| Designed for high speed and small dimensions | |
