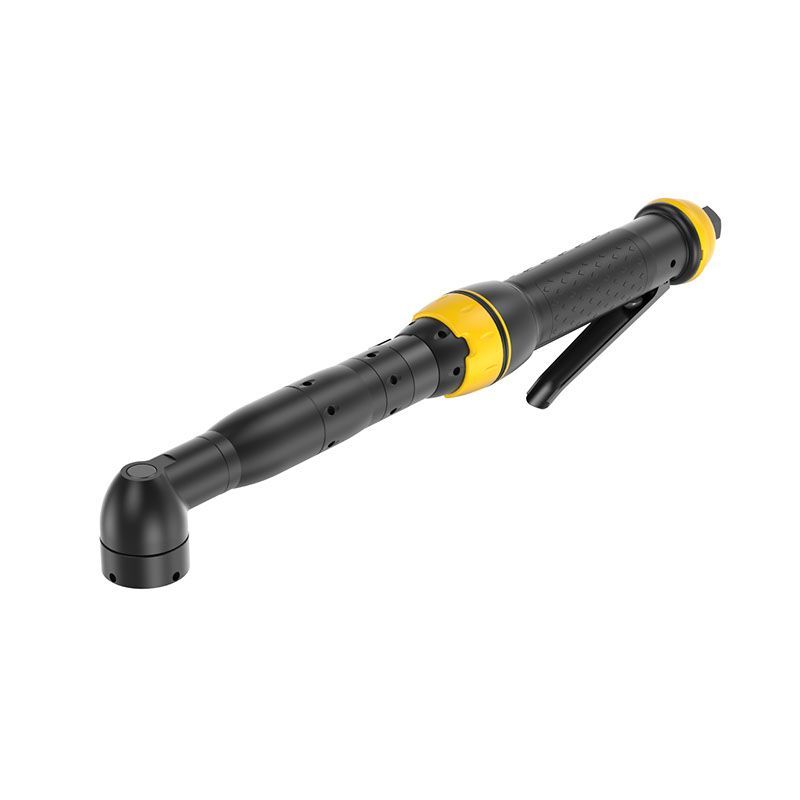

8431 0634 55 | LTV39-2 R56 FS | Angle Nutrunner, flush socket, 28 - 56 Nm, 460 rpm
Overview
Atlas Copco 8431 0634 55
Flush Socket Angle Pnuematic Nutrunner, 21-41 Ft Lb
The LTV series angle nutrunner range from Atlas Copco successfully combines two key performance factors – speed and accuracy. Consistently accurate, high-speed tightening is complemented by advanced ergonomic design, ensuring an unmatched level of productivity. All this is presented in a tool that is very easy to handle.
Features:- Designed for high speed and small dimensions.
- Slim lightweight design.
- Soft, comfortable grip.
- Easy to reverse.
- Low reaction force.
- Square drive size: 1/4"
Features & Benefits
- Fastest nutrunners of this type
- Powerful motor
- Spiral cut angle gears
- Consistently high accuracy
Technical Specifications
SKU: 8431 0634 55
airinletthread
1/4 in
angleheadcentretoside
19 mm
angleheadheight
38 mm
boltsize
M10 mm
length
406 mm
outputsize
50 FS
recommendedhosesize
10 mm
weight
3.7 lb
fordcertification
CA N12 TR
frontpartinterface
50 FS
modeltype
Angle
outputtype
Flush Socket
reversible
Yes
shutoff
Yes
torquerangemax
56 Nm
torquerangemin
28 Nm
freespeed
460 r/min
airconsumptionatfreespeed
16 l/s
maxworkingpressure
100 psig
soundpower
92 dB(A)
soundpressure
81 dB(A)
soundstandard
ISO15744
sounduncertainty
3 dB(A)
vibrationstandard
ISO28927-2
vibrationvalue
<2.5 m/s²
eaccertified
Yes
eulegislation
2006/42/EC
eustandard
ISO 11148-6
ukregulations
S.I. 2008/1597
ukstandard
ISO 11148-6
