Atlas Copco8431 0704 28

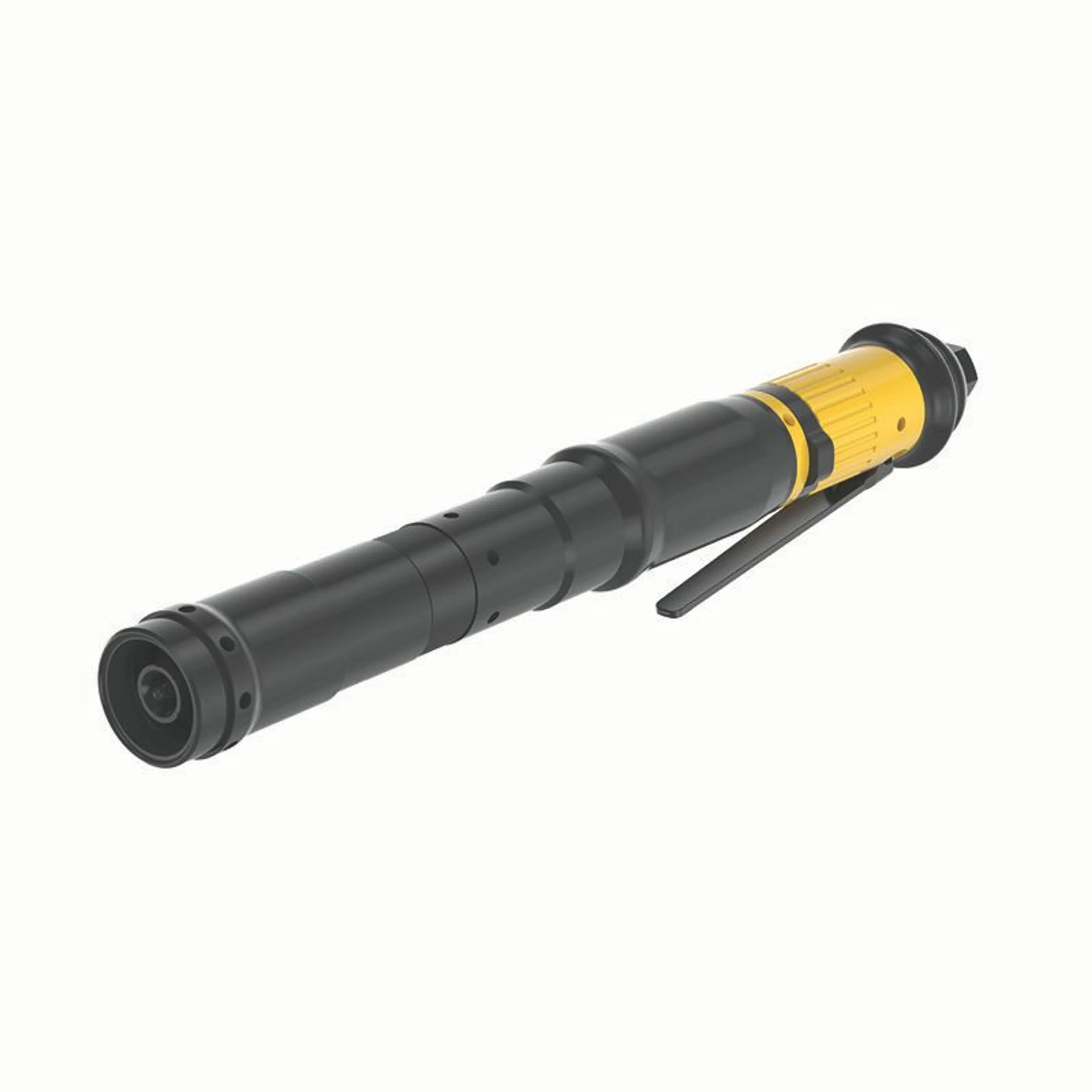

LTD38 R47-RR | Inline Nutrunner, 22 - 47 Nm, 380 rpm, 1/2'' square, reversible
LTD Straight Shut-off Nutrunner
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
8431 0704 28 | LTD38 R47-RR | Inline Nutrunner, 22 - 47 Nm, 380 rpm, 1/2'' square, reversibleLTD38 R47-RR
Price on request
Details
Product information
Overview
Atlas Copco 8431 0704 28
Reversible, Remote Control Back Head, Nutrunner, 16-35 Ft Lbs
The LTD Series straight nutrunner is based on the power package and clutch from the LTV angle nutrunners.
Features:
- Accessibility – Slim design allows the building of smooth, simple multiples or paired spindle designs. The absence of a clutch makes these tools shorter.
- Flexibility - The range of LTD tools provides you with the options you need to meet your requirements.
| Technical Specifications | |
|---|---|
| boltsize | M10 mm |
| csdistance | 21 mm |
| length | 448 mm |
| outputsize | 1/2' |
| recommendedhosesize | 10/16 mm |
| squaredrive | 1/2 in |
| weight | 5.1 lb |
| modeltype | Straight |
| outputtype | Square, Male |
| reversible | Yes |
| shutoff | Yes |
| torquerangemax | 47 Nm |
| torquerangemin | 22 Nm |
| freespeed | 380 r/min |
| airconsumptionatfreespeed | 16 l/s |
| maxworkingpressure | 100 psi |
| soundpressure | 77 dB(A) |
| soundstandard | ISO15744 |
| sounduncertainty | 3 dB(A) |
| eaccertified | Yes |
| eulegislation | 2006/42/EC |
| eustandard | ISO 11148-6 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | ISO 11148-6 |
| MPN | LTD38 R47-RR |
| Features & Benefits | |
| Fast rundown saves time | |
| Torque independent of air pressure | |
| Powerful motor | |
| High torque accuracy | |
