Atlas Copco8431 0800 07

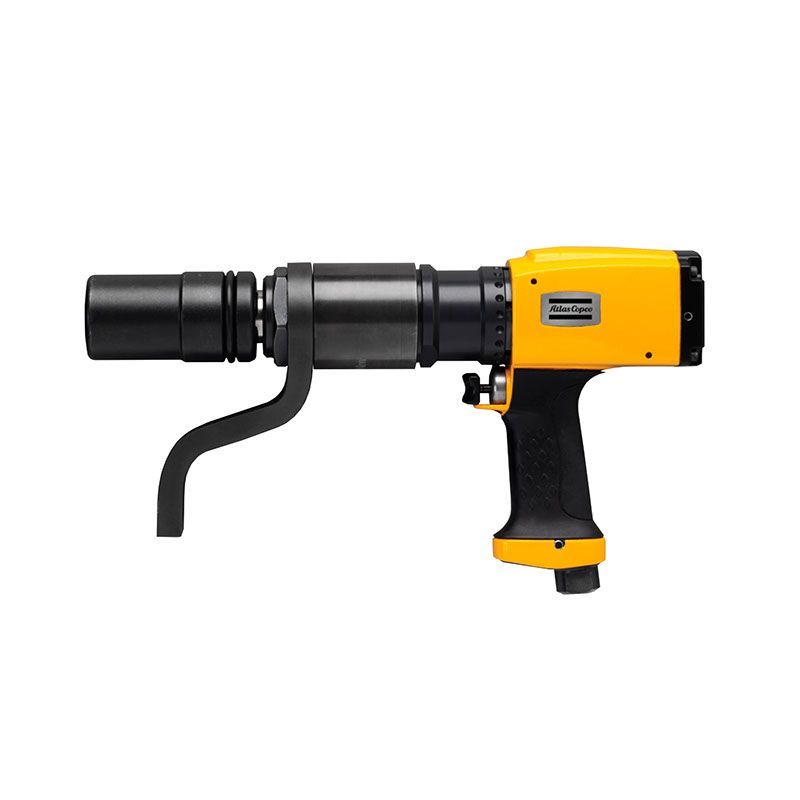

LTP61 H100-13 | Nutrunner, 45 - 100 Nm, 1800 rpm, 1/2'' square
LTP Shut-off Pistol Grip Nutrunner
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
8431 0800 07 | LTP61 H100-13 | Nutrunner, 45 - 100 Nm, 1800 rpm, 1/2'' squareLTP61 H100-13
Price on request
Details
Product information
Overview
Atlas Copco 8431 0800 07
Ltp61 H100-13, Pistol Grip, Auto-Shut Off, Non-Reversible Nutrunner, 40-75 Ft Lbs
With the LTP Series range of pistol grip nutrunners from Atlas Copco you get the highest possible torque and speed in relation to the weight of the tool. Fast, accurate and highly operator friendly, the tools are reversible for maximum flexibility. LTP61 PH is specially designed to handle prevailing torque applications, such as locking nuts
Features:
- Special gear gives a higher changeover torque.
- The Multi Torque selector makes it possible to preset up to four different shut-off levels
- Fast rundown motor handles most of the rundown before the slower but stronger tightening motor is used.
- Reversible tool with fixed positions for both forward and reverse
| Technical Specifications | |
|---|---|
| airinletthread | 3/8 in |
| boltsize | M12 mm |
| csdistance | 29 mm |
| height | 202 mm |
| length | 223 mm |
| recommendedhosesize | 16 mm |
| squaredrive | 1/2 in |
| weight | 6.6 lb |
| modeltype | Pistol |
| reversible | No |
| shutoff | Yes |
| splinewavetype | 3 |
| maxtorqueat63barsoftjoint | 100 Nm |
| mintorqueat3bar | 45 Nm |
| mintorqueat3barsoftjoint | 45 Nm |
| mintorqueat63barsoftjoint | 55 Nm |
| torquerangeat63barmax | 100 Nm |
| torquerangeat63barmin | 55 Nm |
| torquerangemax | 100 Nm |
| torquerangemin | 45 Nm |
| freespeed | 1800 r/min |
| airconsumptionatfreespeed | 20 l/s |
| maxworkingpressure | 100 psig |
| soundpower | 91 dB(A) |
| soundpressure | 80 dB(A) |
| soundstandard | ISO15744 |
| sounduncertainty | 3 dB(A) |
| vibrationstandard | ISO28927-2 |
| vibrationvalue | <2.5 m/s² |
| eaccertified | Yes |
| eulegislation | 2006/42/EC |
| eustandard | ISO 11148-6 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | ISO 11148-6 |
| MPN | LTP61 H100-13 |
| Features & Benefits | |
| Superior speed and accuracy | |
| Ensures torque repeatability | |
| Twin motors and a shut-off valve | |
| Extremely high torque output to weight ratio | |
