8431 0801 78 | LTP61 HR3800-38 | Pistol Grip, Auto-Shut Off, Reversible Nutrunner, 1540-2800 ft lbsLTP61 HR3800-38
Price on request
Details
Product information
Overview

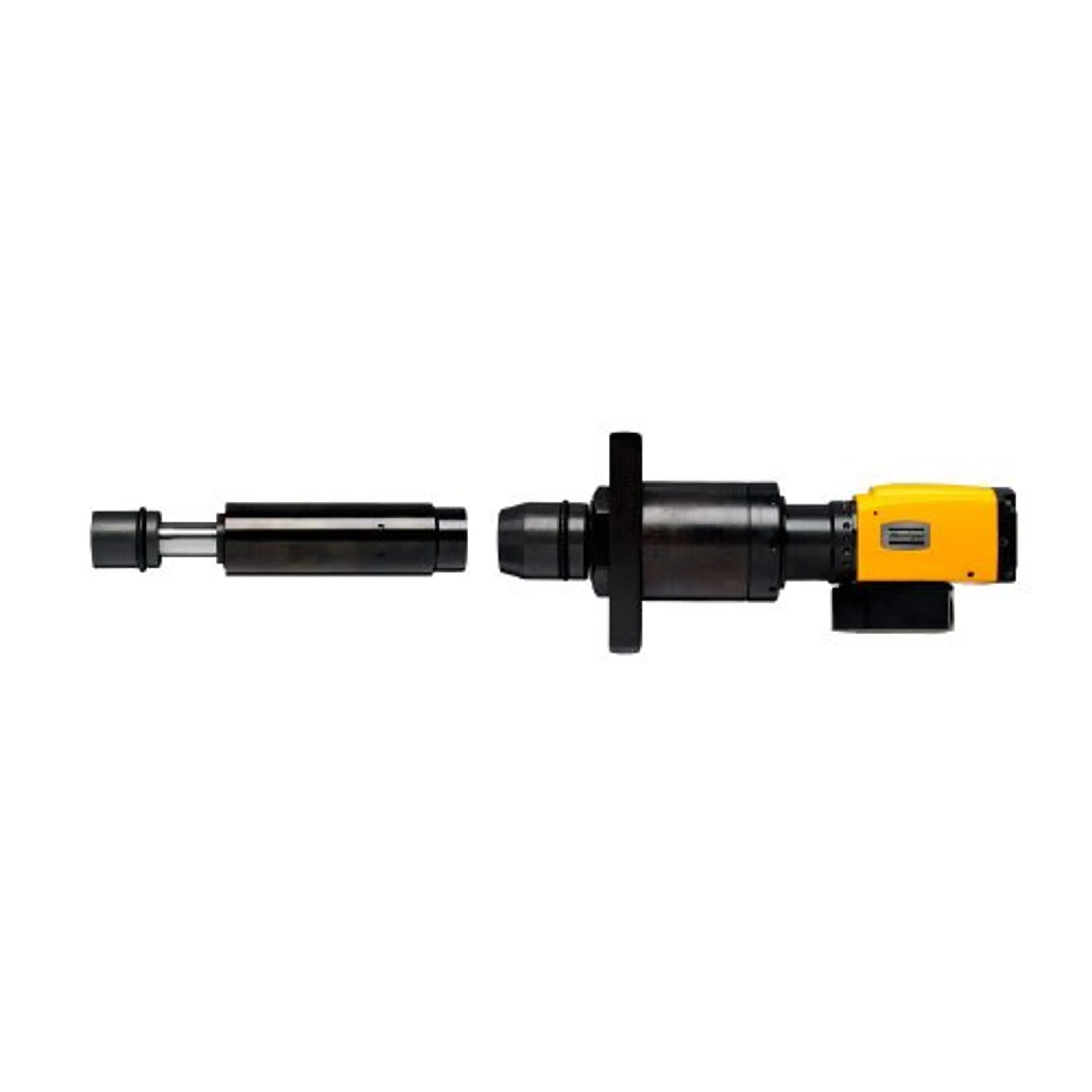

Atlas Copco 8431 0801 78
Ltp61 Hr3800-38, Pistol Grip, Auto-Shut Off, Reversible Nutrunner, 1540-2800 Ft Lbs
With the LTP Series range of pistol grip nutrunners from Atlas Copco you get the highest possible torque and speed in relation to the weight of the tool. Fast, accurate and highly operator friendly, the tools are reversible for maximum flexibility. LTP61 PH is specially designed to handle prevailing torque applications, such as locking nuts
Features:
- Special gear gives a higher changeover torque.
- The Multi Torque selector makes it possible to preset up to four different shut-off levels
- Fast rundown motor handles most of the rundown before the slower but stronger tightening motor is used.
- Reversible tool with fixed positions for both forward and reverse
| Technical Specifications | |
|---|---|
| Model | LTP61 HR3800-38 |
| Stat 1 | Reversible |
| Stat 2 | 1180 - 2800 Ft Lb |
| Recommended Torque Range (Ft Lb) | 1540-2800 |
| Drive size | 1-1/2'' square |
| Manufacturer | Atlas Copco |
| Length (mm) | 380 |
| Min Torque (Ft Lb) | 1540 |
| Max Air Consumption (cfm) | 42 |
| Free Speed (RPM) | 50 |
| SKU | 8431 0801 78 |
| Stock Code | 3 |
| Air Inlet | 3/8 in. |
| Style | Pistol Grip |
| Clutch Type | Auto Shut Off |
| Max Torque (In Lb) | 33633 |
| Max Torque (Ft Lb) | 2800 |
| Min Torque (Nm) | 2100 |
| Max Torque (Nm) | 3800 |
| Bolt Size - mm | M42 |
| Direction | Reversible |
| Max Free Speed (rpm) | 50 |
| Weight (lbs) | 31 |
| Drive Type | 1-1/2 in. square |
| MPN | LTP61 HR3800-38 |
