Atlas Copco8431 0804 11
LMP61 HR170-13 | Nutrunner, 100 - 170 Nm, 1400 rpm, 1/2'' square, reversible
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
8431 0804 11 | LMP61 HR170-13 | Nutrunner, 100 - 170 Nm, 1400 rpm, 1/2'' square, reversibleLMP61 HR170-13
Price on request
Details
Product information
Overview

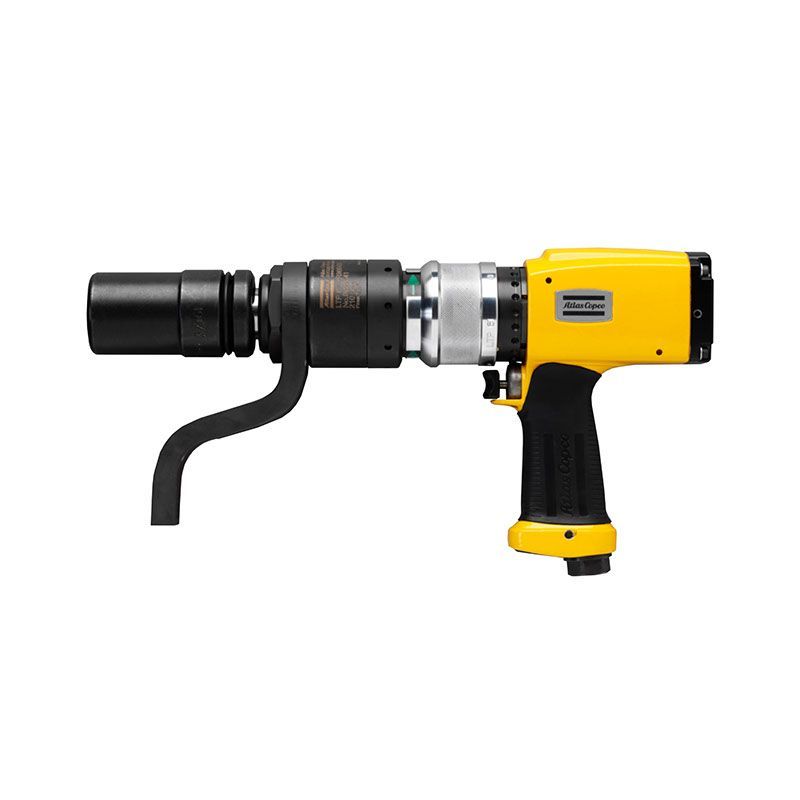

Atlas Copco 8431 0804 11
Pistol-Grip, Non-Shut Off, Reversible Nutrunner, 75-125 Ft Lbs
LTD nutrunners are based on the unique LTP/LMP61 range of twin motor pistol grip nutrunners. With fast rundown and accurate final tightening they offer high productivity, unmatched torque accuracy and joint independence.
Features:
- LTD61 models are equipped with twin motors and a shut-off valve to ensure that the tool shuts off when the preset torque level is reached.
- Twin motor concept - fast rundown saves time.
- High torque accuracy, whatever the air pressure used.
- Extremely high torque output to weight ratio.
| Technical Specifications | |
|---|---|
| airinletthread | 3/8 in |
| boltsize | M14 mm |
| csdistance | 30 mm |
| length | 238 mm |
| squaredrive | 1/2 in |
| weight | 6.6 lb |
| modeltype | Pistol |
| reversible | Yes |
| shutoff | No |
| splinewavetype | 3 |
| maxtorqueat63bar | 170 Nm |
| mintorqueat3bar | 100 Nm |
| torquerangemax | 170 Nm |
| torquerangemin | 100 Nm |
| freespeed | 1400 r/min |
| airconsumptionatfreespeed | 20 l/s |
| maxworkingpressure | 100 psi |
| soundpressure | 80 dB(A) |
| soundstandard | ISO15744 |
| sounduncertainty | 3 dB(A) |
| vibrationstandard | ISO28927-2 |
| vibrationvalue | <2.5 m/s² |
| eaccertified | Yes |
| eulegislation | 2006/42/EC |
| eustandard | ISO 11148-6 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | ISO 11148-6 |
| MPN | LMP61 HR170-13 |
