Atlas Copco8431 0806 16
LTP61 HR230-19-MT | Pistol Grip, Auto-Shut Off, Pnuematic Nutrunner w/ Multi-Torque Unit, 90-170 ft lbs
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
8431 0806 16 | LTP61 HR230-19-MT | Pistol Grip, Auto-Shut Off, Pnuematic Nutrunner w/ Multi-Torque Unit, 90-170 ft lbsLTP61 HR230-19-MT
Price on request
Details
Product information
Overview

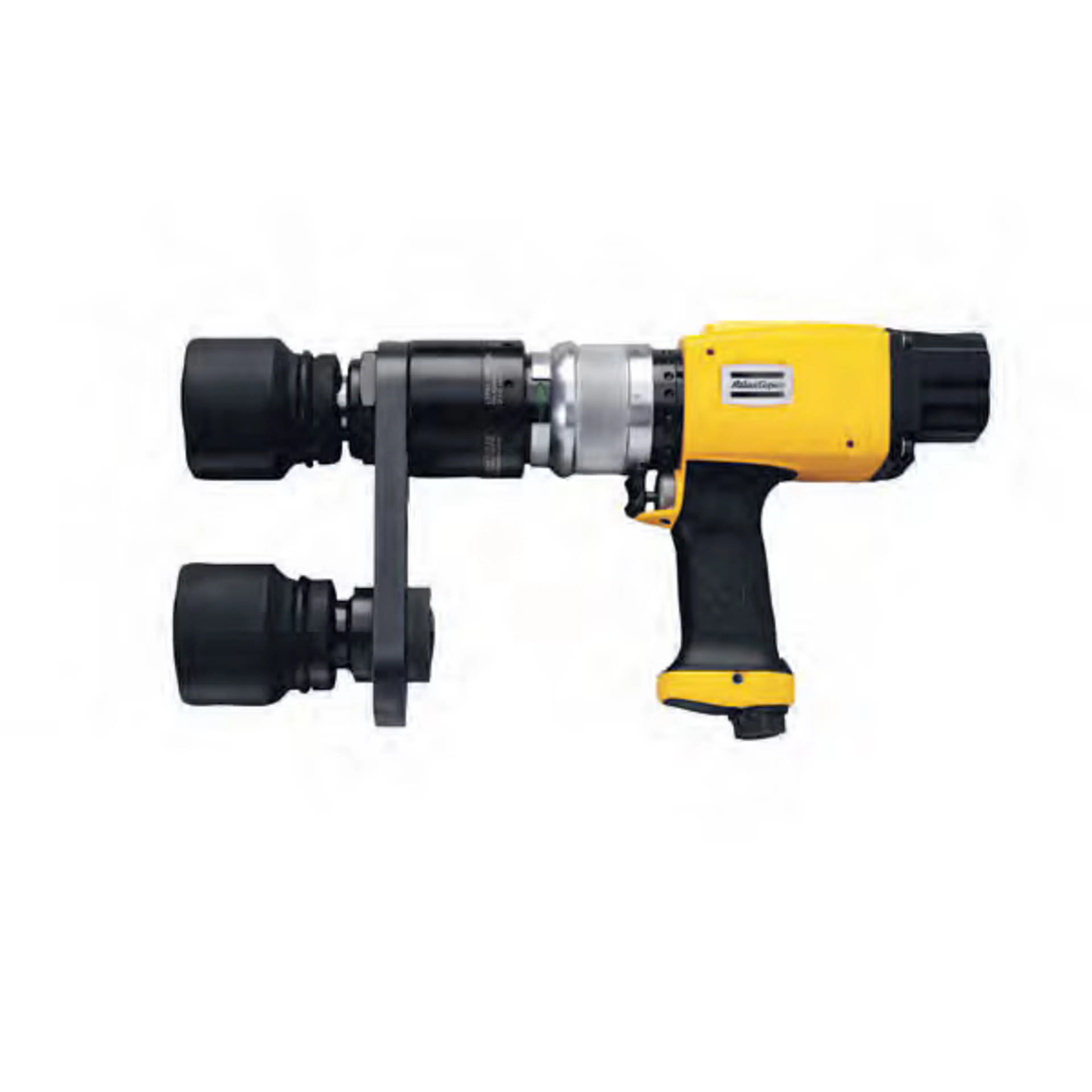

Atlas Copco 8431 0806 16
Ltp61 Hr230-19-Mt, Pistol Grip, Auto-Shut Off, Pnuematic Nutrunner W/ Multi-Torque Unit, 90-170 Ft Lbs
With the LTP Series range of pistol grip nutrunners from Atlas Copco you get the highest possible torque and speed in relation to the weight of the tool. Fast, accurate and highly operator friendly, the tools are reversible for maximum flexibility. LTP61 PH is specially designed to handle prevailing torque applications, such as locking nuts
Features:
- Special gear gives a higher changeover torque.
- The Multi Torque selector makes it possible to preset up to four different shut-off levels
- Fast rundown motor handles most of the rundown before the slower but stronger tightening motor is used.
- Reversible tool with fixed positions for both forward and reverse
| Technical Specifications | |
|---|---|
| Model | LTP61 HR230-19-MT |
| Stat 1 | Reversible |
| Stat 2 | 90 - 170 - Ft Lb |
| Recommended Torque Range (Ft Lb) | 90-170 |
| Drive size | 3/4'' square |
| Manufacturer | Atlas Copco |
| Length (mm) | 288 |
| Min Torque (Ft Lb) | 90 |
| Max Air Consumption (cfm) | 45 |
| Free Speed (RPM) | 820 |
| SKU | 8431 0806 16 |
| Stock Code | 3 |
| Air Inlet | 3/8 in. |
| Style | Pistol Grip |
| Clutch Type | Auto Shut Off |
| Max Torque (In Lb) | 2036 |
| Max Torque (Ft Lb) | 170 |
| Min Torque (Nm) | 125 |
| Max Torque (Nm) | 230 |
| Bolt Size - mm | M16 |
| Direction | Reversible |
| Max Free Speed (rpm) | 820 |
| Weight (lbs) | 7.3 |
| Drive Type | 3/4 in. square |
| MPN | LTP61 HR230-19-MT |
