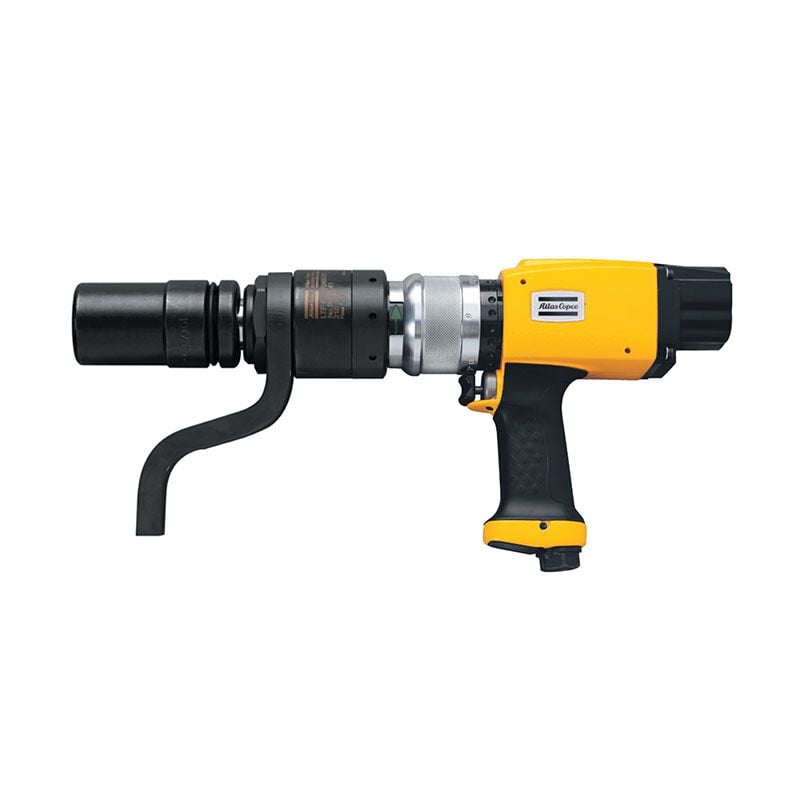

8431 0806 33 | LTP61 HR700-25-MT | Pistol Grip, Auto-Shut Off, Pnuematic Nutrunner w/ Multi-Torque Unit, 265-480 ft lbs
Overview
Atlas Copco 8431 0806 33
Ltp61 Hr700-25-Mt, Pistol Grip, Auto-Shut Off, Pnuematic Nutrunner W/ Multi-Torque Unit, 265-480 Ft Lbs
With the LTP Series range of pistol grip nutrunners from Atlas Copco you get the highest possible torque and speed in relation to the weight of the tool. Fast, accurate and highly operator friendly, the tools are reversible for maximum flexibility. LTP61 PH is specially designed to handle prevailing torque applications, such as locking nuts
Features:- Special gear gives a higher changeover torque.
- The Multi Torque selector makes it possible to preset up to four different shut-off levels
- Fast rundown motor handles most of the rundown before the slower but stronger tightening motor is used.
- Reversible tool with fixed positions for both forward and reverse
Technical Specifications
SKU: 8431 0806 33
airinletthread
3/8 in
boltsize
M22 mm
csdistance
34 mm
height
202 mm
length
355 mm
recommendedhosesize
16 mm
squaredrive
1 in
weight
10.6 lb
modeltype
Pistol
reversible
Yes
shutoff
Yes
splinewavetype
5
maxtorqueat63barsoftjoint
680 Nm
mintorqueat3bar
280 Nm
mintorqueat3barsoftjoint
280 Nm
mintorqueat63barsoftjoint
360 Nm
torquerangeat63barmax
680 Nm
torquerangeat63barmin
360 Nm
torquerangemax
680 Nm
torquerangemin
280 Nm
freespeed
310 r/min
airconsumptionatfreespeed
20 l/s
maxworkingpressure
100 psig
soundpower
91 dB(A)
soundpressure
80 dB(A)
soundstandard
ISO15744
sounduncertainty
3 dB(A)
vibrationstandard
ISO28927-2
vibrationvalue
<2.5 m/s²
eaccertified
Yes
eulegislation
2006/42/EC
eustandard
ISO 11148-6
ukregulations
S.I. 2008/1597
ukstandard
ISO 11148-6
