Atlas Copco8431 0806 51

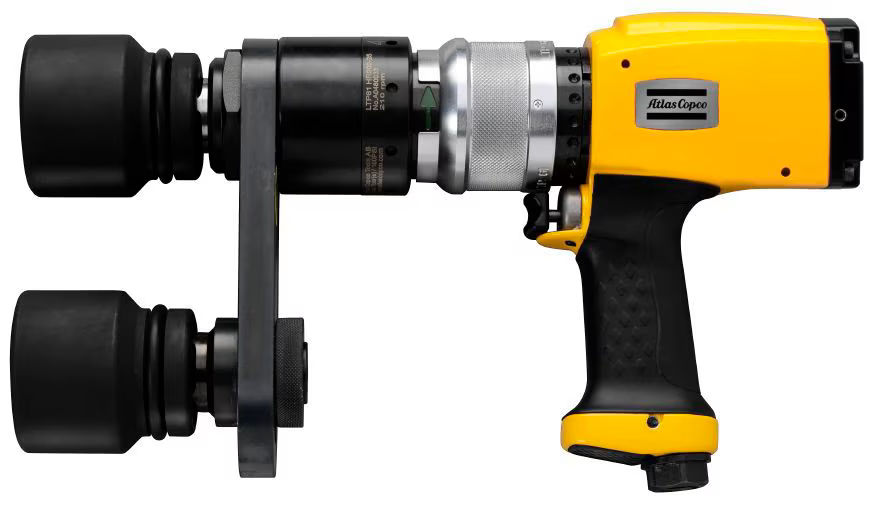

LTP61 HR1900-38-MT | [LTP61 HR1900-38-MT] 590 - 1400 Ft Lb Multi Torque Selector
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
8431 0806 51 | LTP61 HR1900-38-MT | [LTP61 HR1900-38-MT] 590 - 1400 Ft Lb Multi Torque SelectorLTP61 HR1900-38-MT
Price on request
Details
Product information
Overview
Atlas Copco 8431 0806 51
[Ltp61 Hr1900-38-Mt] 590 - 1400 Ft Lb Multi Torque Selector
- The Multi Torque Selector makes it possible to preset up to four different shut-off levels.
- The Rotary dial mounted on the tool allows the operator to select different torque levels without changing the tool.
- Ideal for situations where:
- Several different assembly operations take place.
- Multi-stage tightening operations are required.
- Several different torque settings are needed.
- Reverse function that has fixed positions
| Technical Specifications | |
|---|---|
| Model | LTP61 HR1900-38-MT |
| Stat 1 | Reversible |
| Stat 2 | 770 - 1400 - Ft Lb |
| Drive size | 1 1/2" square |
| Manufacturer | Atlas Copco |
| Length (mm) | 430 |
| Min Torque (Ft Lb) | 590 |
| Free Speed (RPM) | 90 |
| SKU | 8431 0806 51 |
| Stock Code | 3 |
| Style | Pistol Grip |
| Clutch Type | Auto Shut Off |
| Max Torque (Ft Lb) | 1400 |
| Min Torque (Nm) | 800 |
| Max Torque (Nm) | 1900 |
| Bolt Size - mm | M30 |
| Direction | Reversible |
| Max Free Speed (rpm) | 90 |
| Weight (lbs) | 31.7 |
| Drive Type | 1 1/2" square |
| MPN | LTP61 HR1900-38-MT |
