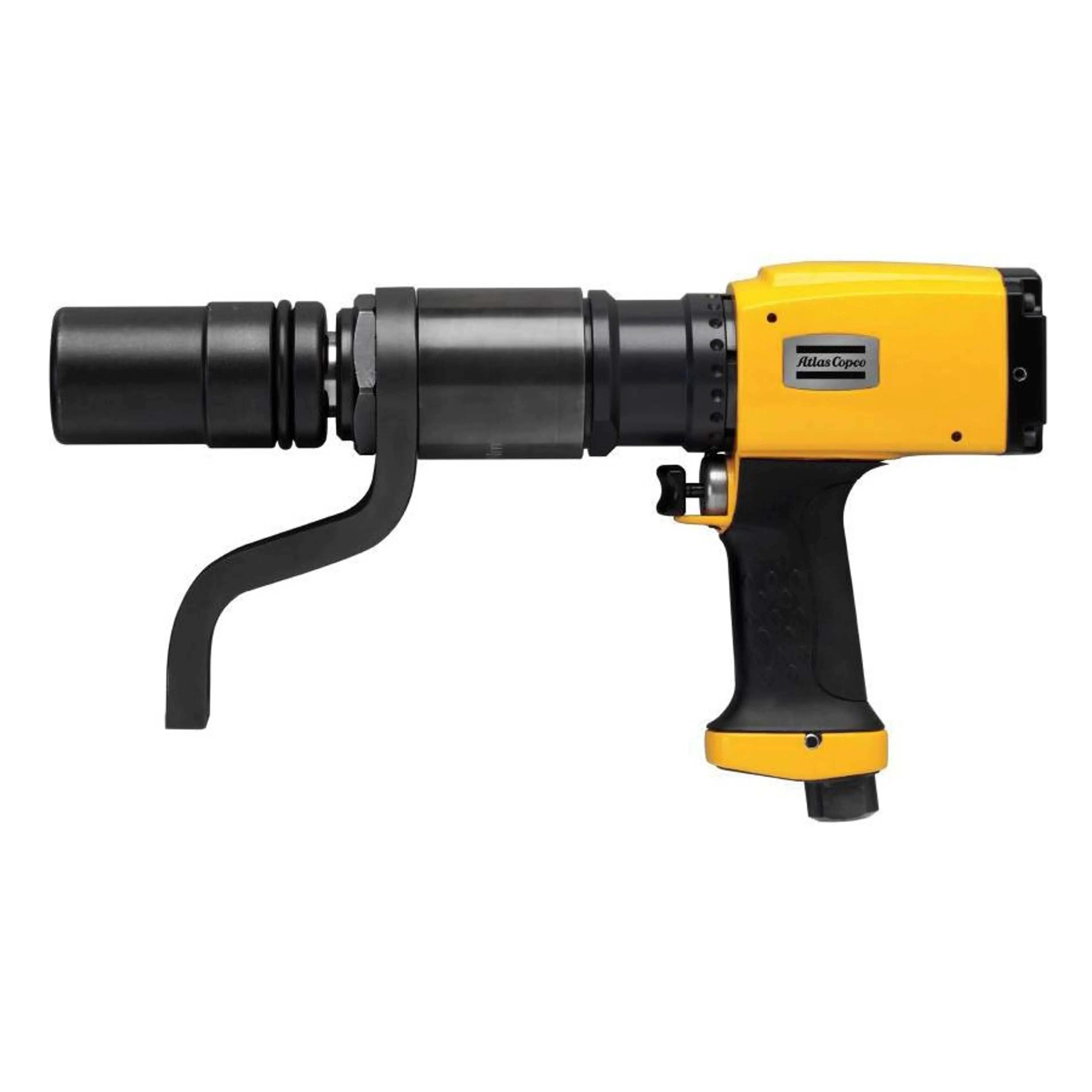

![8431 0807 77 | [LTP61 PHR700-25-MT] 205 - 500 Ft Lb Pistol Grip image 1](https://ik.imagekit.io/flexible/brands/AtlasCopco/Images/Atlas-Copco-LTP-Pistol-Grip-Nutrunners-00.jpg)
Click the image to zoom
Atlas Copco8431 0807 77
[LTP61 PHR700-25-MT] 205 - 500 Ft Lb Pistol Grip
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
8431 0807 77 | [LTP61 PHR700-25-MT] 205 - 500 Ft Lb Pistol Grip8431 0807 77
Price on request
Details
Product information
Overview
Atlas Copco 8431 0807 77
[Ltp61 Phr700-25-Mt] 205 - 500 Ft Lb Pistol Grip
- LTP61 models are equipped with twin motors and a shut-off valve to ensure that the tool shuts off when the preset torque level is reached.
- Rundown is twice as fast as the LTP51.
- High torque accuracy, non depending on air pressure feeded.
- Extremely high torque output to weight ratio.
- A reversible tool with fi xed positions for both forward and reverse.
For prevailing applications
- LTP61 PH is specially designed to handle prevailing applications, such as locking nuts.
- Special gear gives a higher changeover torque.
- Fast rundown motor handles most of the rundown before the slower but stronger tightening motor is used.
| Technical Specifications | |
|---|---|
| Stat 1 | Reversible |
| Stat 2 | 295 - 500 - Ft Lb |
| Manufacturer | Atlas Copco |
| Length (mm) | 305 |
| Min Torque (Ft Lb) | 205 |
| SKU | 8431 0807 77 |
| Stock Code | 3 |
| Style | Pistol Grip |
| Clutch Type | Auto Shut Off |
| Max Torque (Ft Lb) | 500 |
| Min Torque (Nm) | 280 |
| Max Torque (Nm) | 680 |
| Bolt Size - mm | M22 |
| Direction | Reversible |
| Max Free Speed (rpm) | 100 |
| Weight (lbs) | 10.6 |
| MPN | 8431 0807 77 |
