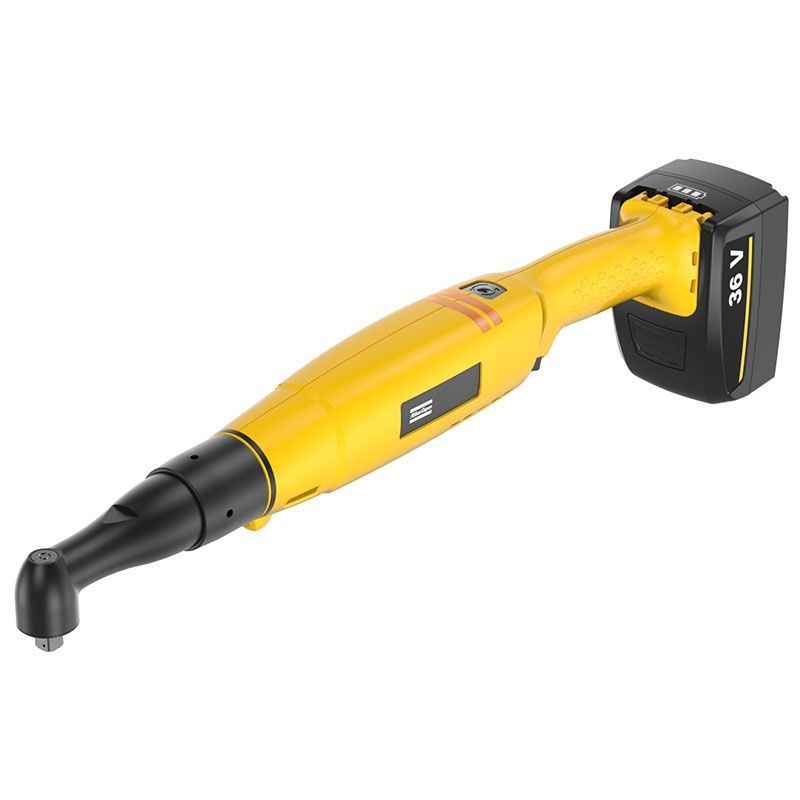

8431 1275 15 | BCV BL-15-06 | BCV BL-15-06, Cordless Nutrunner, 5 - 15 Nm, 480 rpm, 1/4'' square
Overview
Atlas Copco 8431 1275 15
970 Watt, Angle Cordless Nutrunner, 3.68-11 Ft Lbs
For a truly uplifting experience, try our BCV battery clutch tools. The BCV represents freedom - true freedom - from cables or hoses! They are also fast, powerful and offer superior ergonomics. BCP - BCV tools mean higher productivity for quality critical assembly operations in all types of industry
Features:- LED's: For clear operator feedback.
- Reverse button: Change easily from clockwise to counter-clockwise rotation.
- Li-Ion battery: Power up your battery clutch tools with Lithium-Ion technology.
- Ergonomic trigger: Designed to give a soft, smooth feel.
- Buzzer: For audio feedback.
- LED front lights: Powerful iIlumination of the work area.
- Shut-off clutch: Adjustable torque setting with ±10% accuracy.
- Dual battery position: For the highest level of operator comfort.
- Ergonomic handle: Grip design gives excellent balance.
Features & Benefits
- Robust and Ergonomic
- 3.68 - 11 in lb torque range
- Uses 18V 2.1 Ah flat, 4.2 Ah regular and 36V 2.1 Ah batteries
- Lightweight for comfort
Technical Specifications
SKU: 8431 1275 15
csdistance
11 mm
height
34 mm
length
419 mm
squaredrive
1/4 in
weight
2.6 lb
communicationtype
n/a
modeltype
Angle
shutoffsystem
Clutch
torquerangemax
15 Nm
torquerangemin
5 Nm
torquescatter3s
≤ 10 %
speedrangemax
480 r/min
speedrangemin
200 r/min
soundpressure
<70 dB(A)
soundstandard
ISO15744
vibrationstandard
ISO28927-2
vibrationvalue
<2.5 m/s²
eaccertified
Yes
eulegislation
2006/42/EC (MD)
eustandard
EN 62841-1:2015, EN 62841-2-2:2014 + AC:2015, EN 61000-6-2:2005, EN 61000-6-3:2007 + A1:2011, EN 55014-1:2017, EN 55014-2:2015
etlcontrolnumber
3008099
etllisted
Yes
etltext
6 - 62841-2-2
eusarvalue
0 W/kg
kccertified
Yes
kcid
MSIP-REI-50A-BCPBL
ukregulations
S.I. 2008/1597
ukstandard
EN 61000-6-2:2005
weee
5 - Small equipment <50cm
battery
Li-Io 18 V
motorpower
970 W
motorvoltage
18 V
power
970 W
