ETF M 400, Fixtured Current Controlled System, 13.27 - 35.4 in lbs

Whether you are manufacturing high value consumer goods or sensitive electronics, MicroTorque electric screwdrivers are designed to bring precision, productivity and quality to your production. Ultra low-torque applications, starting at 0.5 Ncm, don´t need to be demanding. Electric screwdrivers in the MicroTorque range from Atlas Copco are designed to perform consistently and precisely, time after time. The MicroTorque system is flexible, with the possibility to program different tightening torque levels and strategies, with torque angle and speed control, to meet even the most challenging applications. The MicroTorque electric screwdriver provides clear operator feedback – common assembly problems like missing screws, floating screws, cross threads and stripped screws are detected and eliminated. Data can be recorded and used for statistical analysis, for full control over the assembly process. All MicroTorque screwdrivers are designed for use in applications with electronic components, with ESD (electrostatic discharge) certification. ESD certification means a guarantee against damage of electronic components by an uncontrolled electrostatic discharge (ESD) from the tools. In practice it certifies that at no point will the material of the equipment hold an electrostatic potential above 100 V for more than 2 seconds.

Features

• Transducerized tool for high performance applications with high accuracy and full traceability of tightening results
• Fixtured screwdriver to be used with torque arm or in automated assembly
• Tightening strategy with torque, angle and speed control, with programming from one to eight independent steps. In total 64 different parameter sets, "P-sets", can be programmed and 9 jobs, for full flexibility.
• The most compact controller available in the market with configurable display providing clear operator feedback.
• Supports PC/ToolsTalk MT, communication via USB or RS232. Can be integrated in line with fixed 12 inputs / 8 output digital signals.

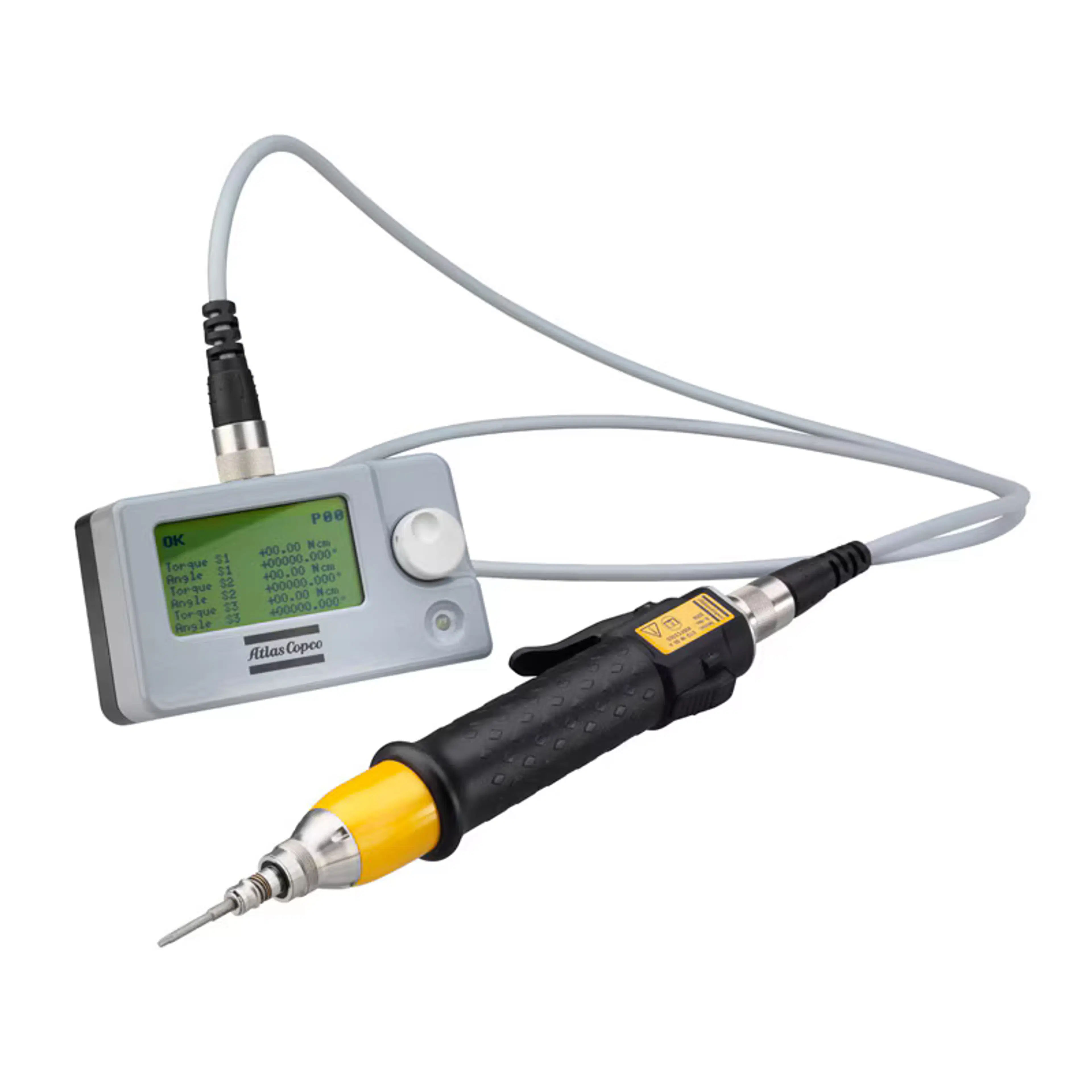

• The tool ordering number includes a complete system: Controller, screwdriver, tool cable, Tools Talk MT, USB communication cable and power supply.
