8432 0818 15 | ETF M 05 400A, MH 4 mm Screwdriver System, 0.13-0.4 in lbs
Overview
Atlas Copco 8432 0818 15
Etf M 05 400A, Complete System, 1.5 - 5 Cnm, 750 Rpm, Hm 4Mm Drive

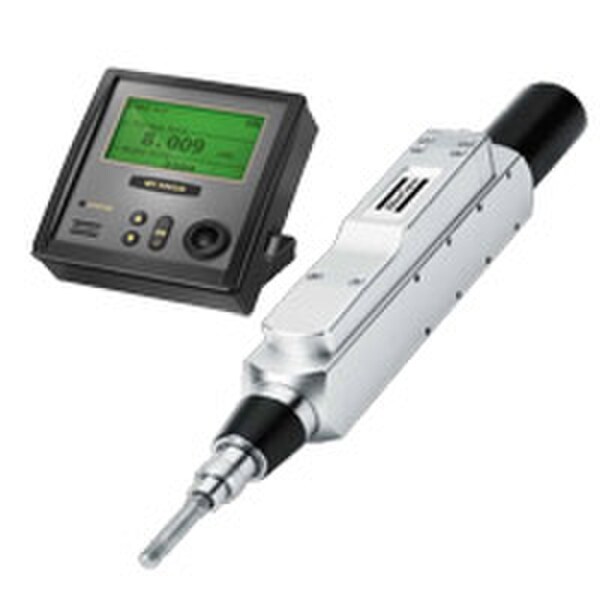

Fixtured “Digitork” MT Focus 400A
Features
- System with DigiTork screwdriver and MT Focus 400 A- Advanced version with 3 psets
- Good ergonomics mean maximum operator comfort: comfortable grip, low tool weight and low noise level.
- Possible to program via controller interface, with autoset to set torque and batch size, or via PC software interface Tools Talk MT
- Tightening strategy with torque, angle and speed control for detecting assembly problems. In total 3 different parameter sets “P-sets” can be programmed.
- The most compact controller available in the market with configurable display providing clear operator feedback.
- Supports PC/ToolsTalk MT, communication via USB or RS232. Can be integrated in line with configurable 4 inputs /4 output digital signals.
- The tool ordering number includes a complete system: Controller, screwdriver, tool cable, controller stand, Tools Talk MT, USB communication cable and power supply
Technical Specifications
Stat 1
750 rpm
Stat 2
0.13-0.4 In Lb
Min Torque (Ncm)
1.5
Max Torque (Ncm)
5
Drive size
4mm Half Moon
Manufacturer
Atlas Copco
Length (mm)
184
SKU
8432 0818 15
Stock Code
3
Style
Inline
Min Torque (In Lb)
0.13
Max Torque (In Lb)
0.44
Max Torque (Ft Lb)
0.03
Max Torque (Nm)
0.05
Max Free Speed (rpm)
750
Weight (lbs)
0.9
Width (mm)
20
Drive Type
HM 4mm
Weight (kg)
0.4
Technical Documents
Atlas Copco MT400 Series Brochure (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
