Atlas Copco8432 0844 05

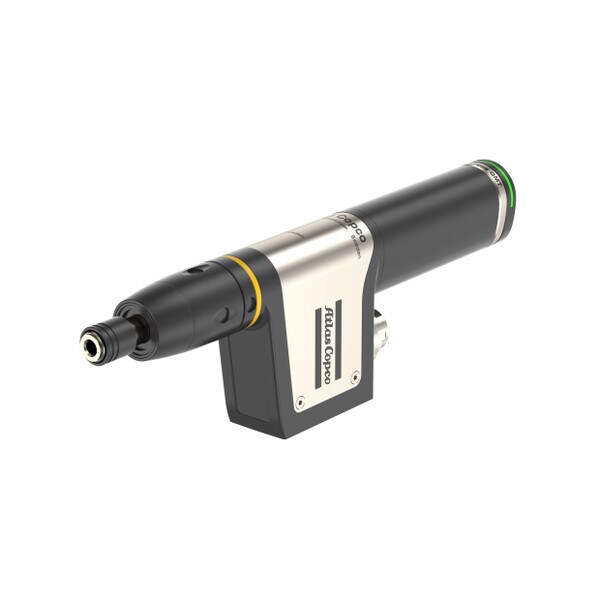

QMC 21-05-HM4 | Fixtured current controlled screwdriver, 5 cNm, 4mm Half Moon
Extremely light and compact, the MicroTorque QMC Series current controlled fixtured screwdrivers combined with the powerful MTF6000 controller, boost productivity, improve quality and reduce costs.
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
8432 0844 05 | QMC 21-05-HM4 | Fixtured current controlled screwdriver, 5 cNm, 4mm Half MoonQMC 21-05-HM4
Price on request
Details
Product information
| Technical Specifications | |
|---|---|
| length | 123 mm |
| overallwidth | 57 mm |
| weight | 0.44 lb |
| bitdrive | HM 4 mm |
| modeltype | Straight |
| shutoffsystem | Current control |
| torquerangemax | 0.44 in-lb |
| torquerangemin | 0.11 in-lb |
| torquescatter3s | ≤ 10 % |
| freespeed | 2000 r/min |
| speedrangemax | 2000 r/min |
| soundpressure | <70 dB(A) |
| soundstandard | ISO15744 |
| compliancewithothereudirectives | 2011/65/EU (RoHS) |
| eaccertified | Yes |
| eulegislation | (EU) 2023/1230 (MR) |
| eustandard | EN 55014-1:2021 |
| kccertified | Yes |
| kcid | MSIP-REI-50A-MICROTORQUE |
| ukregulations | S.I. 2008/1597 |
| ukstandard | BS EN 55014-1:2021 |
| weee | 5 - Small equipment <50cm |
| ingressprotectionrating | IP20 |
| motorpower | 10 W |
| motorvoltagetype | d.c. |
| motorvoltage | 24 V |
| operatingtemperaturemax | 104 F |
| operatingtemperaturemin | 41 F |
| storagetemperaturemax | 140 F |
| storagetemperaturemin | -13 F |
| MPN | QMC 21-05-HM4 |
| Features & Benefits | |
| Lightweight to maximize productivity in any automation process. | |
| Multistep tightening to maximize productivity and quality. | |
| Torque and angle monitoring to ensure quality. | |
| Advanced torque seating monitoring ensures final and clamping torque | |
