Atlas Copco8433 0610 04
Selector 4 Error Proofing Module
8433 0610 04 | Selector 4 Error Proofing Module
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
8433 0610 04 | Selector 4 Error Proofing Module8433 0610 04
Price on request
Details
Product information
Overview

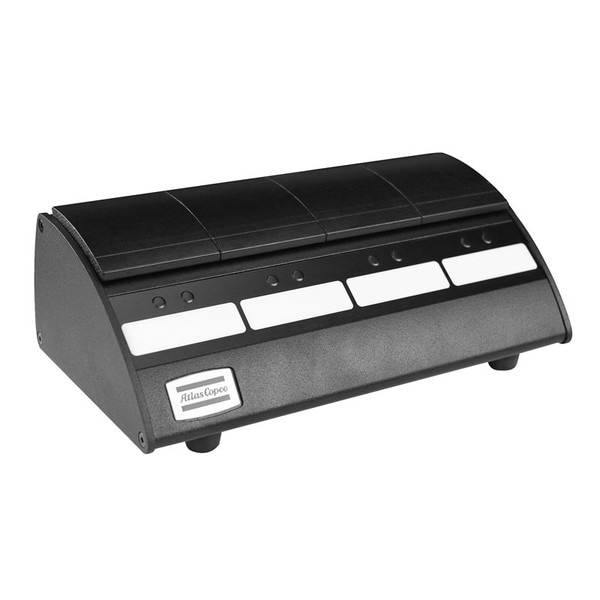

Atlas Copco 8433 0610 04
Selector 4 Error Proofing Module
Productive assembly lines demand efficient operators. These should be supported with appropriate tools providing feedback for all actions. This will save time changing program settings and when performing reworkings in station. Socket and bit selectors minimize the risk of errors relating to product diversity by automatically selecting correct torque according to the socket or bit selected.
Features:
- Easily connected to Power Focus, Pulsor Focus, PowerMACS and DS/DL Advanced controllers, using one I/O bus cable
- User-friendly interface in ToolsTalk PF (from W07) for fast, easy programming
- LED's indicate which socket is removed and which should be used next, for operator guidance
- Supports up to 4 sockets, increasing flexibility and error proofing when selecting program settings
| Technical Specifications | |
|---|---|
| height | 75 mm |
| length | 210 mm |
| weight | 2.4 lb |
| width | 120 mm |
| input | I/O Bus 24Vdc |
| modeltype | 4 socket |
| output | I/O Bus daisy chain |
| type | Wired |
| etllisted | No |
| kccertified | No |
| weee | 5 - Small equipment <50cm |
| operatingtemperaturemax | 122 F |
| operatingtemperaturemin | 32 F |
| storagetemperaturemax | 122 ºF |
| storagetemperaturemin | 32 ºF |
| ratedvoltage | 24 V |
| MPN | 8433 0610 04 |
