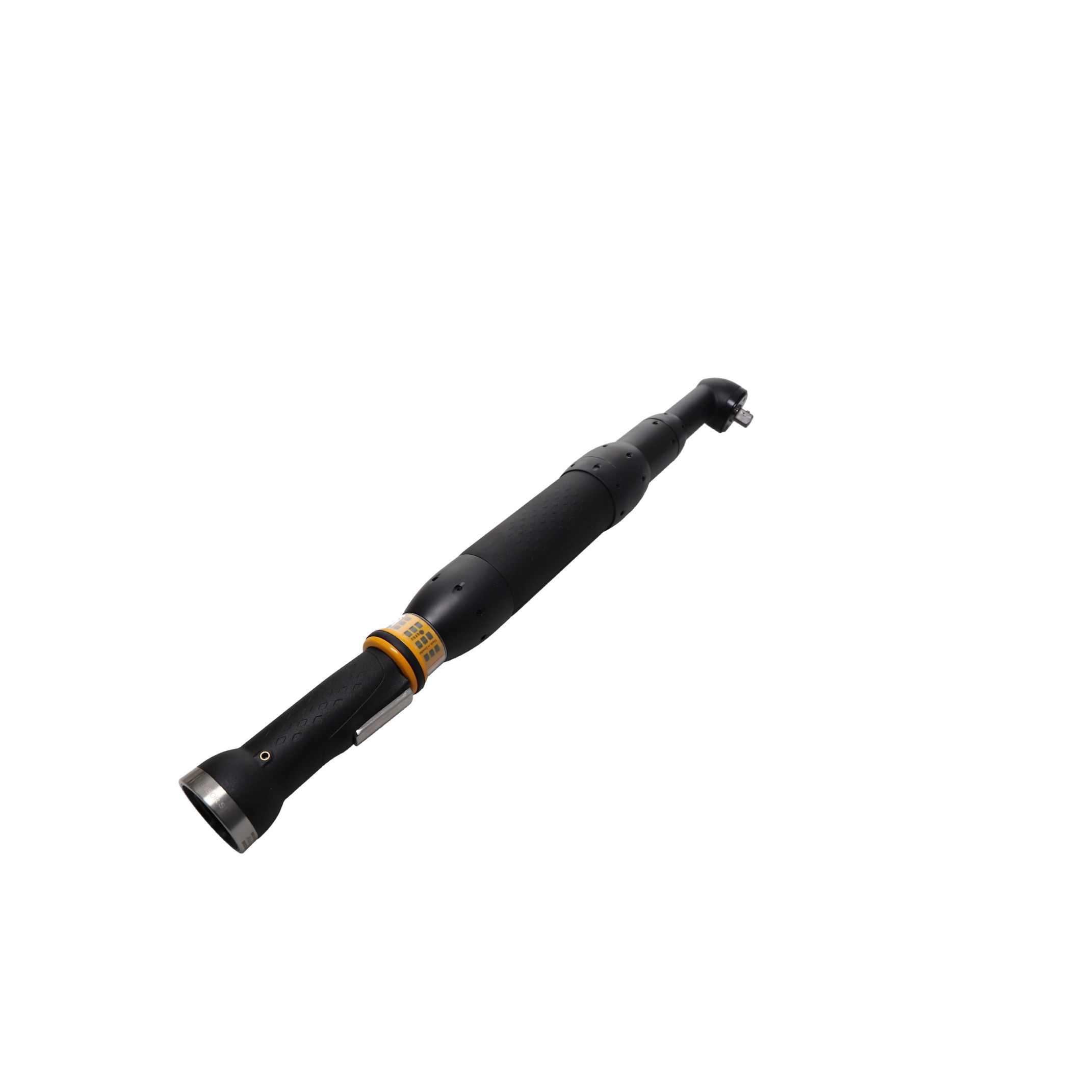

![8433 2080 45 | [ETV-ST101-100-HAD] 15 - 74 Ft Lb Angle Nutrunner image 1](https://ik.imagekit.io/flexible/brands/AtlasCopco/Images/8433208052_FL-01.tif)
Click the image to zoom
Atlas Copco8433 2080 45
[ETV-ST101-100-HAD] 15 - 74 Ft Lb Angle Nutrunner
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
8433 2080 45 | [ETV-ST101-100-HAD] 15 - 74 Ft Lb Angle Nutrunner8433 2080 45
Price on request
Details
Product information
Overview
Atlas Copco 8433 2080 45
[Etv-St101-100-Had] 15 - 74 Ft Lb Angle Nutrunner
ETV ST right angle tools are ideal for hand-held and fixtured applications.- Torque range from 1 to 1000 Nm.
- Tensor ST complements the S range by:
- Extremely high productivity.
- More ergonomic benefits.
- Better operator feedback.
- The ETV ST ATEX tools are certified to be used in environments with hazardous gases and liquids.
| Technical Specifications | |
|---|---|
| csdistance | 23 mm |
| height | 71.4 mm |
| length | 572 mm |
| outputsize | 100 HAD |
| weight | 10.8 lb |
| modeltype | Angle |
| outputtype | Hold and drive |
| shutoffsystem | Transducer |
| toolfamily | ST |
| torquerangemax | 100 Nm |
| torquerangemin | 20 Nm |
| torquescatter3s | ≤ 5 % |
| speedrangemax | 920 r/min |
| soundpressure | <70 dB(A) |
| soundstandard | ISO15744 |
| vibrationstandard | ISO28927-2 |
| vibrationvalue | <2.5 m/s² |
| ccccertified | No |
| cqccertified | Yes |
| eaccertified | Yes |
| eulegislation | 2006/42/EC (MD) |
| eustandard | EN 61000-6-2:2019 |
| kccertified | Yes |
| kcid | R-REI-50A-ETVST101 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | BS EN 62841-1:2015 + AC:2015 + A11:2022 |
| weee | 4 - Large equipment >50cm |
| motorpower | 1500 W |
| motorvoltagetype | 3 a.c. |
| motorvoltage | 200 V |
| MPN | 8433 2080 45 |
