Atlas Copco8433 2324 03

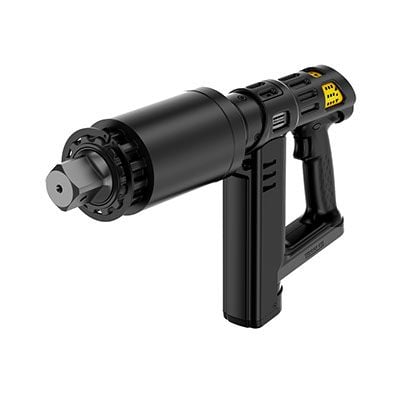

ETP ST101-4000-25-F-HA | Electric Nutrunner with fan, 1200 - 4000 Nm, 16 rpm
Ideal for handheld application or fixtures with reduced space.
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
8433 2324 03 | ETP ST101-4000-25-F-HA | Electric Nutrunner with fan, 1200 - 4000 Nm, 16 rpmETP ST101-4000-25-F-HA
Price on request
Details
Product information
| Technical Specifications | |
|---|---|
| csdistance | 42 mm |
| length | 464 mm |
| weight | 24.5 lb |
| modeltype | Pistol |
| splinemounting | Wave 70 |
| torquerangemax | 4000 Nm |
| torquerangemin | 1200 Nm |
| speed | 16 r/min |
| soundpressure | <70 dB(A) |
| soundstandard | ISO15744 |
| vibrationstandard | ISO28927-2 |
| vibrationvalue | <2.5 m/s² |
| ccccertified | No |
| cqccertified | No |
| eaccertified | Yes |
| eulegislation | 2006/42/EC (MD) |
| eustandard | EN 61000-6-2:2019 |
| kccertified | Yes |
| kcid | R-REI-50A-ETPST101 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | BS EN 62841-1:2015 + AC:2015 + A11:2022 |
| weee | 5 - Small equipment <50cm |
| motorpower | 1500 W |
| motorvoltagetype | 3 a.c. |
| motorvoltage | 200 V |
| MPN | ETP ST101-4000-25-F-HA |
| Features & Benefits | |
| Unique and patented 360 degree swivel with transducer. | |
| Ultra-compact size improves access. | |
| Program selection is made directly on tool. | |
| Reduced weight means less need for fixtures | |
