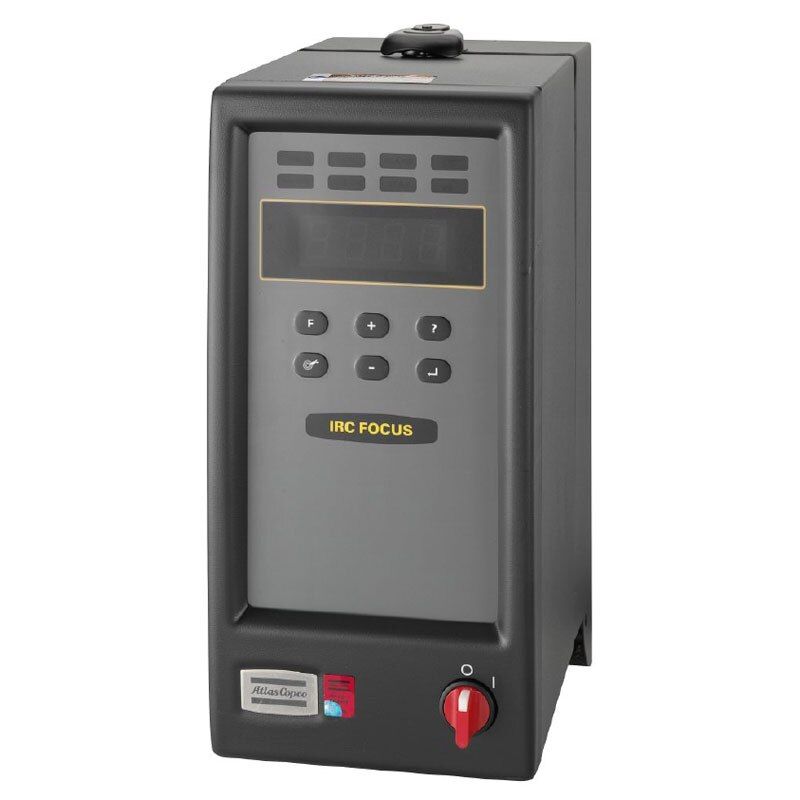

IRC FOCUS-B-C-DN-HW Controller, W10, Bluetooth

Atlas Copco 8433 6500 06

Irc Focus-B-C-Dn-Hw Controller, W10, Bluetooth

Based on the Power Focus 4000 controller, the IRC Focus was designed to run Tensor STB battery assembly tools. With its built-in Bluetooth adapter, it eliminates the need for an external communication kit. It also participates in controlling the station or line segment. The IRC Focus and associated software packages provide easy-to-understand information for everyone, from operators to plant managers. The IRC Focus is based on standard hardware and software components which, when combined, will fulfill all demands, from the most basic stand-alone installation to full integration into the factory network. The modules fit together using the “plug-and-play” concept. Assembly process control and quality assurance is made easy by advanced control functions. On receipt of assembly information, the IRC Focus automatically selects the correct tightening sequence and parameters. The operator is guided through the process, avoiding mistakes that can result in costly quality problems. Advanced process control and monitoring functions make it easy to view and collect data using the Internet infrastructure.

Features:

• Supports software keys (RBU, rapid backup unit) Bronze, Silver and Gold to run a battery assembly tool functionality upgrade. This eliminates the need to replace hardware, thus reducing capital expenditures.
• External USB port for simple and fast communication with programming software ToolsTalk PF
• Built-in Bluetooth module eliminating the need for external communication kit
• Compact version offers full functionality at a lower cost, but requires a PC with the ToolsTalk PF software for advanced process setup. An integrated 6 key keyboard and LED display give the possibility for basic programming and operator
• feedback in the form of torque and angle visualization.
