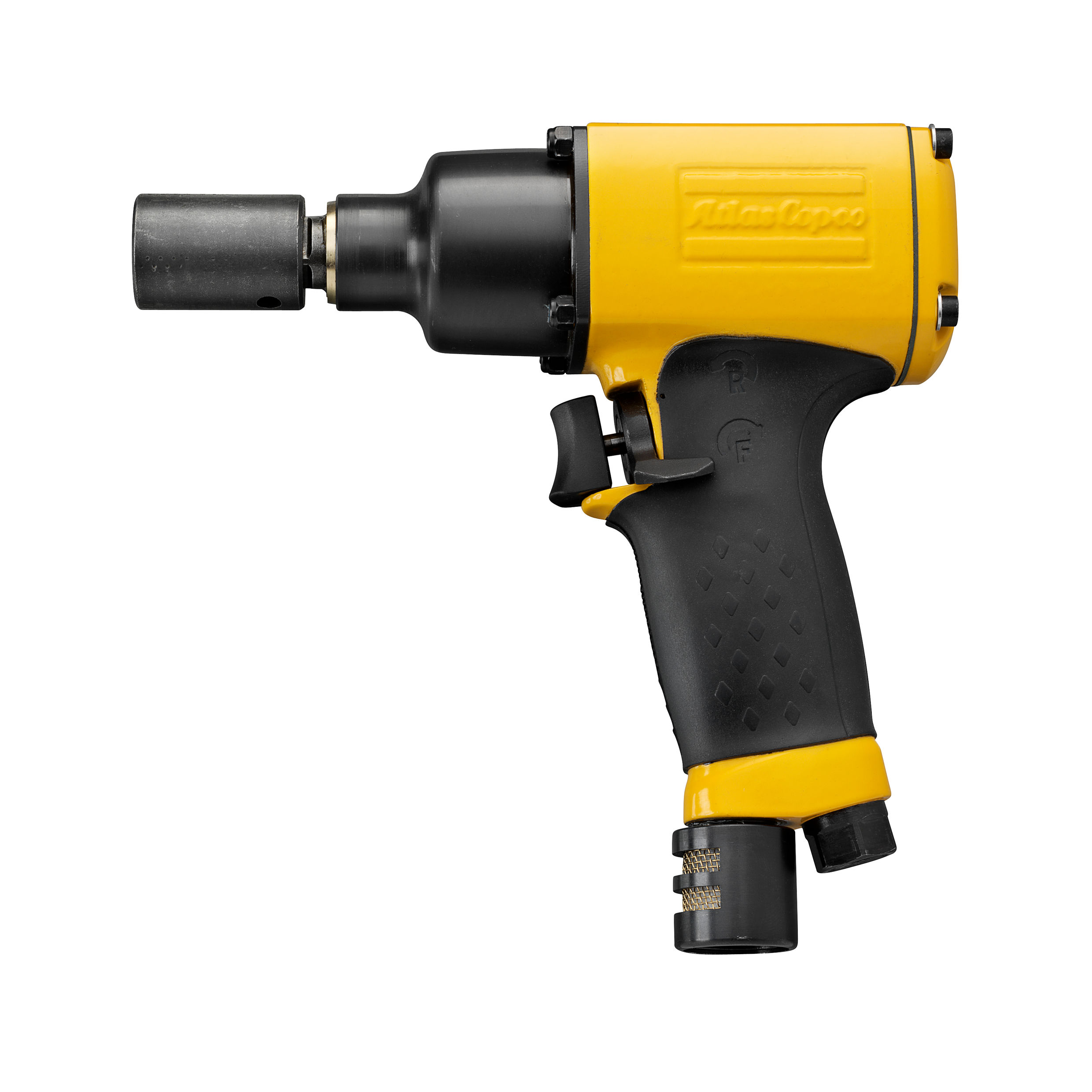

8434 1180 02 | LMS18 HR13/F | Impact Wrench, 10 - 110 Nm, 8100 rpm, 1/2'' square

(0)No Reviews yet

Designed to provide dependability and a long, trouble-free service life in the toughest conditions. The LMS is a non shut-off impact wrench with extraordinary power to weight qualities and virtually no reaction force during tightening, typically used where fast tightening or disassembly is needed.

Warning: California Proposition 65 | Trade Regulations Advisory Notice
Item Ships free
Order total must be over $999.99, under 20 lbs and shipping within continental USA

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Non-Returnable
Spare Parts, Specialty and Custom items are non-returnable and non-refundable
Back

Overview

Atlas Copco 8434 1180 02

Pistol Grip, Non-Shut Off, Impact Wrench, 7-81 Ft Lb


Atlas Copco impact wrenches are designed to provide dependability and a long, trouble-free service life in the toughest conditions. Few other tools can match the Atlas Copco impact wrench when it comes to flexibility, capacity-to-weight ratio and simplicity in use and maintenance. The LMS models are non shut-off, which means they will shut off once the operator releases the trigger.

Features:
  • Fast tightening and disassembly
  • Negligible reaction force
  • Low weight
  • High power-to-weight ratio
  • Tightening time should not exceed 5 seconds, to avoid excess wear on the tool
  • Soft-start throttle
  • GRS, Grease Retaining System
Back

Features & Benefits

  • Extremely fast tightening and loosening
  • Longer service life
  • Greater operator comfort
  • Reduced risk of vibration related injuries
Back

Technical Specifications

SKU: 8434 1180 02
airinletthread
1/4 in
boltsizemax
10 mm
boltsizemin
10 mm
csdistance
26 mm
length
144 mm
outputsize
1/2'
rechosesize
10 mm
squaredrivesize
1/2 in
weight
3.2 lb
impactspermin
1500 per-min
modeltype
Pistol
outputtype
Square, Male
shutoff
No
maxtorque
150 Nm
torquerangemax
110 Nm
torquerangemin
10 Nm
freespeed
8100 r/min
airconsumption
8.5 l/s
maxworkingpressure
100 psig
soundpower
101 dB(A)
soundpressure
90 dB(A)
soundstandard
ISO15744
sounduncertainty
3 dB(A)
vibrationstandard
ISO28927-2
vibrationuncertainty
- m/s²
vibrationvalue
5.3 m/s²
eaccertified
Yes
eulegislation
2006/42/EC
eustandard
EN ISO 11148-6:2012
ukregulations
S.I. 2008/1597
ukstandard
EN ISO 11148-6:2012
