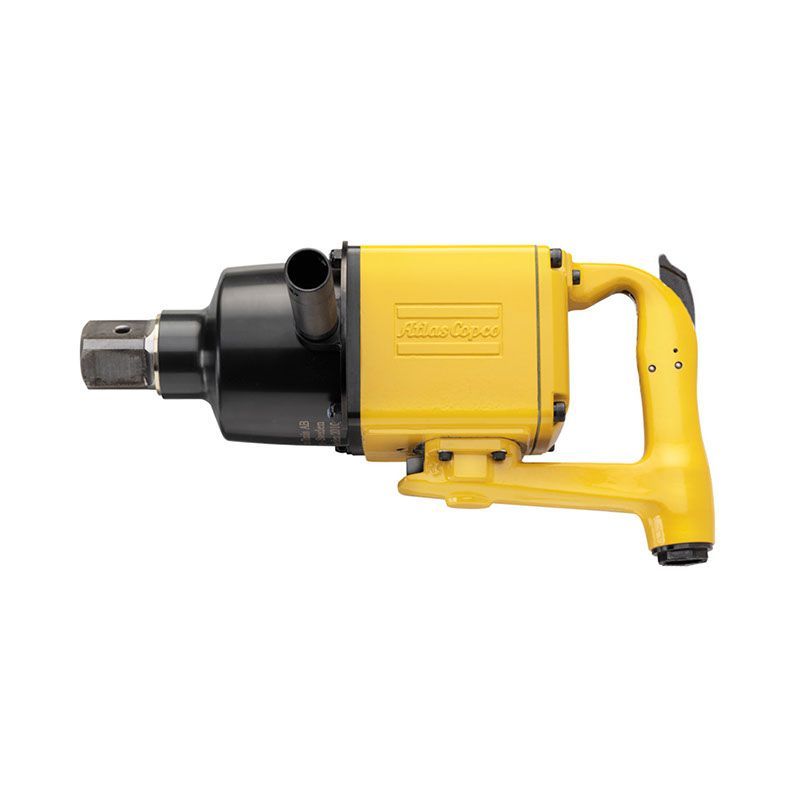

LMS88 GOR38 | Inline Impact Wrench, 1000 - 10000 Nm, 3800 rpm, 1-1/2'' square
Designed to provide dependability and a long, trouble-free service life in the toughest conditions. The LMS is a non shut-off impact wrench with extraordinary power to weight qualities and virtually no reaction force during tightening, typically used where fast tightening or disassembly is needed.
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
Recommended Accessories
2 itemsAdd-on accessories that can be purchased alongside this product.
Details
Product information
Overview
Atlas Copco 8434 1880 01
Straight, Non-Shut Off, Impact Wrench, 737-4054 Ft Lb
Atlas Copco impact wrenches are designed to provide dependability and a long, trouble-free service life in the toughest conditions. Few other tools can match the Atlas Copco impact wrench when it comes to flexibility, capacity-to-weight ratio and simplicity in use and maintenance. The LMS models are non shut-off, which means they will shut off once the operator releases the trigger.
Features:
- Fast tightening and disassembly
- Negligible reaction force
- Low weight
- High power-to-weight ratio
- Tightening time should not exceed 5 seconds, to avoid excess wear on the tool
- Soft-start throttle
- GRS, Grease Retaining System
| Technical Specifications | |
|---|---|
| airinletthread | 1/2 in |
| boltsizemax | 42 mm |
| boltsizemin | 30 mm |
| csdistance | 63.5 mm |
| length | 381 mm |
| rechosesize | 16 mm |
| squaredrivesize | 1 1/2 in |
| weight | 33 lb |
| impactspermin | 540 per-min |
| modeltype | Straight |
| shutoff | No |
| maxtorque | 10000 Nm |
| torquerangemax | 5500 Nm |
| torquerangemin | 1000 Nm |
| freespeed | 3800 r/min |
| airconsumption | 33 l/s |
| maxworkingpressure | 100 psig |
| soundpower | 111 dB(A) |
| soundpressure | 100 dB(A) |
| soundstandard | ISO15744 |
| sounduncertainty | 3 dB(A) |
| vibrationstandard | ISO28927-2 |
| vibrationuncertainty | 2 m/s² |
| vibrationvalue | 4.8 m/s² |
| eaccertified | Yes |
| eulegislation | 2006/42/EC |
| eustandard | EN ISO 11148-6:2012 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | EN ISO 11148-6:2012 |
| MPN | LMS88 GOR38 |
| Features & Benefits | |
| Extremely fast tightening and loosening | |
| Longer service life | |
| Reduced risk of vibration related injuries | |
| Greater operator comfort | |
