8434 2040 19 | A/110-3-1-SF8434 2040 19
Price on request
Details
Product information
Overview

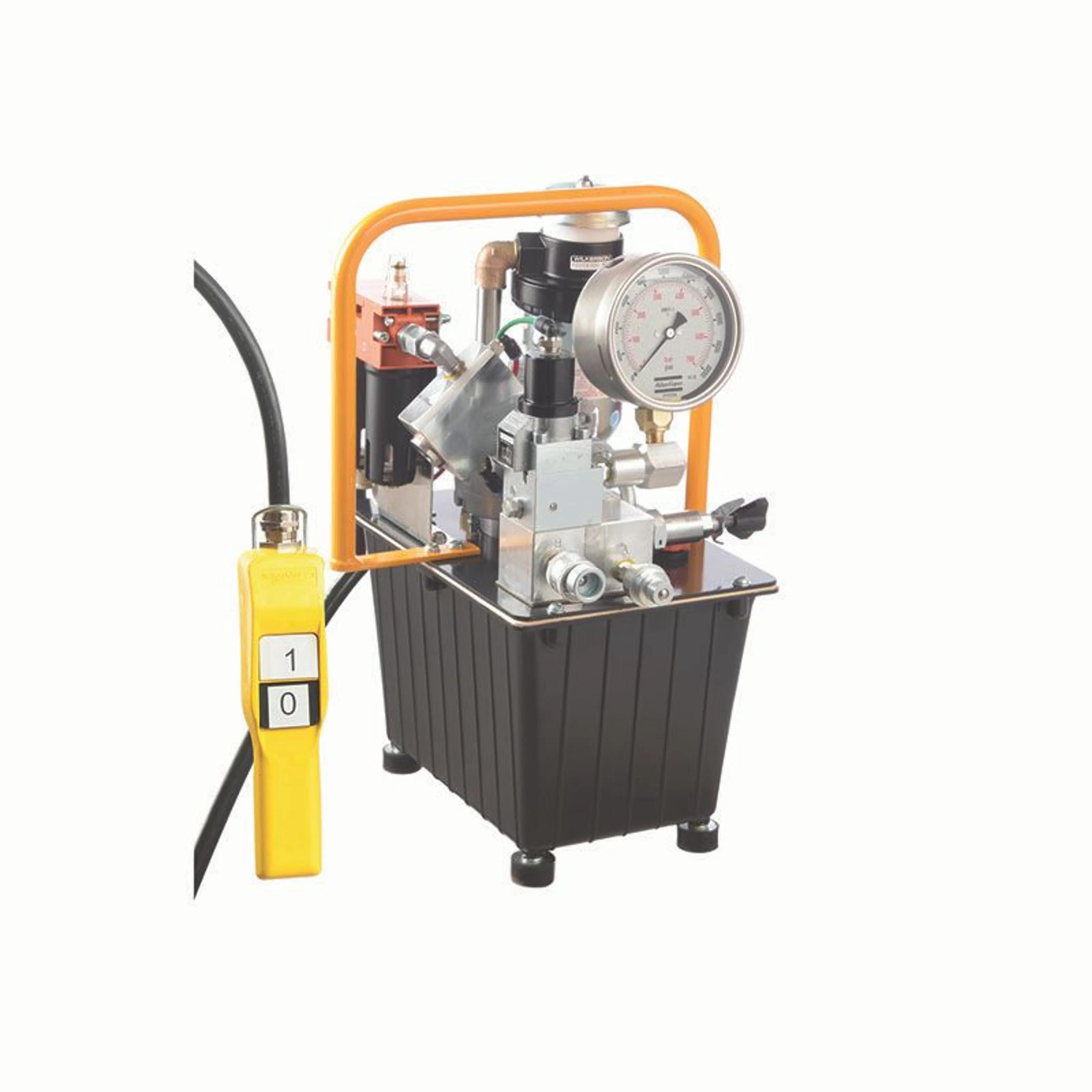

Atlas Copco A/110-3-1-Sf
A/110-3-1-Sf by Atlas Copco, Item Number 8434 2040 19, available for quotation online from Flexible Assembly Systems.
8434 2040 19 A/110-3-1-SF by Atlas Copco
| Technical Specifications | |
|---|---|
| height | 420 mm |
| length | 320 mm |
| weight | 40 lb |
| width | 310 mm |
| couplingtype | Twin-Screw In |
| intercoolersystem | Yes |
| numberofports | 1 |
| maxworkingpressure | 10000 psig |
| soundpressure | 82 dB(A) |
| soundstandard | ISO 15744 |
| sounduncertainty | 3 dB(A) |
| eulegislation | 2006/42/EC (MD) |
| eustandard | EN ISO 12100:2010 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | BS EN ISO 12100:2010 |
| weee | 4 - Large equipment >50cm |
| oilcapacity | 0.95 US-gallon |
| oilflowat10000psi | 24 cu-in/min |
| oilflowat1250psi | 275 cu-in/min |
| oilflowat250bar | 1.1 l/min |
| oilflowat3600psi | 67 cu-in/min |
| oilflowat700bar | 0.4 l/min |
| oilflowat86bar | 4.5 l/min |
| MPN | 8434 2040 19 |
