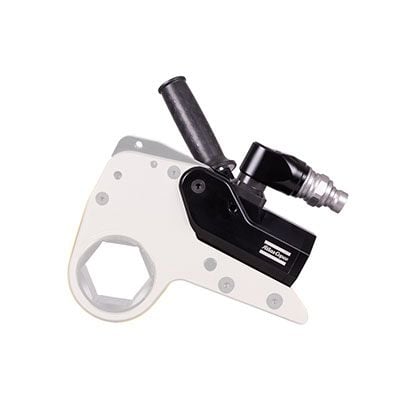

Atlas CopcoTFX02 (Co-Axial) / 8434 2406 68
Ratchet Hex Link Size 3/4'' – 2-9/16'', 257 - 1710 ft-lbs, Hydraulic Wrench
TFX Series, Low profile hydraulic torque wrench. Atlas Copco TFX Series Low Profile Hydraulic Torque Wrenches eliminate problems with tight clearances, whilst increasing user efficiencies.
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
TFX02 (Co-Axial) / 8434 2406 68 | Ratchet Hex Link Size 3/4'' – 2-9/16'', 257 - 1710 ft-lbs, Hydraulic WrenchTFX02 (Co-Axial)
Price on request
Details
Product information
Overview
TFX02 (Co-Axial) Sq Dr Wrench
8434 2406 68
Features
- Ratchet Hex Link Size 3/4'' – 2-9/16''
- 257 - 1710 ft-lbs
| Technical Specifications | |
|---|---|
| l | 140 mm |
| nsmax | 65 mm |
| nsmin | 19 mm |
| ratchedlinkhexsizemax | 65 mm |
| ratchedlinkhexsizemin | 19 mm |
| w1 | 32 mm |
| w2 | 46 mm |
| weight | 2.47 lb |
| couplingtype | Co-axial |
| torquerangemax | 2318 Nm |
| torquerangemin | 348 Nm |
| powersupplyhydraulicpressurerangemax | 10000 psi |
| powersupplyhydraulicpressurerangemin | 1500 psi |
| soundpressure | <70 dB(A) |
| soundstandard | ISO15744 |
| sounduncertainty | 3 dB(A) |
| atexcode | II 2 G Ex h IIC T4 Gb |
| certifications | II 2 D Ex h IIIC T135 °C Db |
| atex | Yes |
| eulegislation | 2006/42/EC (MD) |
| eustandard | EN 1127-1:2011 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | BS EN 1127-1:2011 |
| maxambienttemperature | 40 °C |
| minambienttemperature | -20 °C |
| MPN | TFX02 (Co-Axial) |
| Features & Benefits | |
| Powerhead: Made from aircraft grade alloy for optimium strength to weight ratio. | |
| Co-Axial Hose and Coupling: The launch of the Co-Axial coupling and hose system is an innovative solution to increase | |
| Interchangeable Ratchet Link: Made from premium alloy steel for maximum durability. | |
| Reaction Pawl: Reduces operator interventon and increases tightening speed. | |
