Atlas Copco8434 2415 24

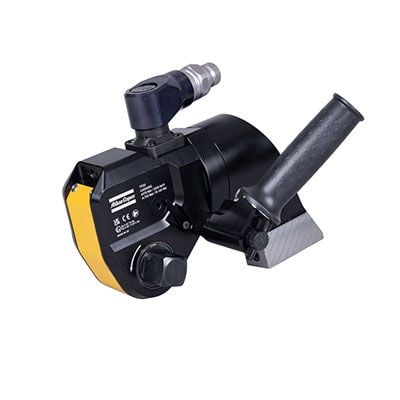

TF10 Sq Dr Wrench (Co-axial)
8434 2415 24 | TF10 Sq Dr Wrench (Co-axial)
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
-01.jpeg?tr=w-3840,q-75,f-webp)
8434 2415 24 | TF10 Sq Dr Wrench (Co-axial)8434 2415 24
Price on request
Details
Product information
| Technical Specifications | |
|---|---|
| h1 | 138.8 mm |
| h2 | 190 mm |
| l1 | 208 mm |
| l2 | 313 mm |
| radius | 49.4 mm |
| squaredrive | 1 1/2 in |
| w1 | 100 mm |
| w2 | 140 mm |
| weight | 34.99 lb |
| couplingtype | Co-axial |
| torquerangemax | 15619 Nm |
| torquerangemin | 2343 Nm |
| powersupplyhydraulicpressurerangemax | 10000 psi |
| powersupplyhydraulicpressurerangemin | 1500 psi |
| soundpressure | <70 dB(A) |
| soundstandard | ISO15744 |
| sounduncertainty | 3 dB(A) |
| atexcode | II 2 G Ex h IIC T4 Gb |
| certifications | II 2 D Ex h IIIC T135°C Db |
| atex | Yes |
| eulegislation | 2006/42/EC (MD) |
| eustandard | EN 1127-1:2011 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | BS EN 1127-1:2011 |
| maxambienttemperature | 40 °C |
| minambienttemperature | -20 °C |
| MPN | 8434 2415 24 |
