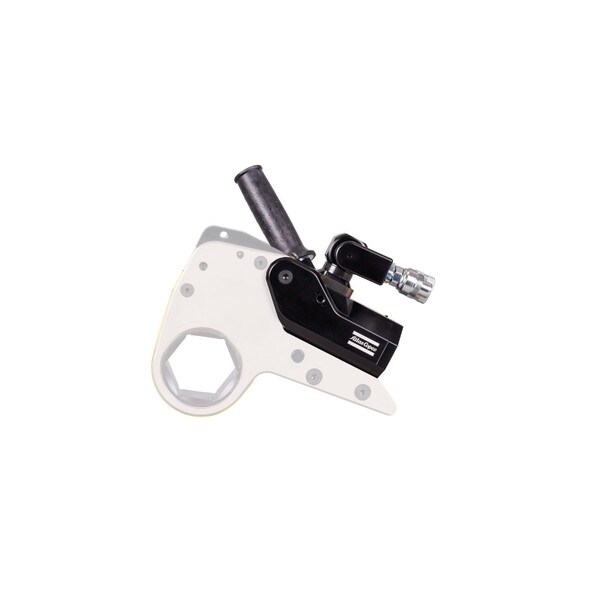

TFX08 (Co-Axial) / 8434 2417 87 | Ratchet Hex Link Size 1-1/8'' – 3-7/8'', 1223 - 8151 ft-lbs, Hydraulic Wrench

(0)No Reviews yet

TFX Series, Low profile hydraulic torque wrench. Atlas Copco TFX Series Low Profile Hydraulic Torque Wrenches eliminate problems with tight clearances, whilst increasing user efficiencies.

Warning: California Proposition 65 | Trade Regulations Advisory Notice
Item Ships free
Order total must be over $999.99, under 20 lbs and shipping within continental USA

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Non-Returnable
Spare Parts, Specialty and Custom items are non-returnable and non-refundable
Back

Overview

TFX08 (Co-Axial) Sq Dr Wrench

8434 2417 87

Features

  • Ratchet Hex Link Size 1-1/8'' – 3-7/8''
  • 1223 - 8151 ft-lbs
Back

Features & Benefits

  • Powerhead: Made from aircraft grade alloy for optimium strength to weight ratio.
  • Co-Axial Hose and Coupling: The launch of the Co-Axial coupling and hose system is an innovative solution to increase
  • Interchangeable Ratchet Link: Made from premium alloy steel for maximum durability.
  • Reaction Pawl: Reduces operator interventon and increases tightening speed.
Back

Technical Specifications

SKU: 8434 2417 87
l
235 mm
nsmax
100 mm
nsmin
30 mm
ratchedlinkhexsizemax
100 mm
ratchedlinkhexsizemin
30 mm
w1
53 mm
w2
78 mm
weight
7.25 lb
couplingtype
Co-axial
torquerangemax
11051 Nm
torquerangemin
1658 Nm
powersupplyhydraulicpressurerangemax
10000 psi
powersupplyhydraulicpressurerangemin
1500 psi
soundpressure
<70 dB(A)
soundstandard
ISO15744
sounduncertainty
3 dB(A)
atexcode
II 2 G Ex h IIC T4 Gb
certifications
II 2 D Ex h IIIC T135 °C Db
atex
Yes
eulegislation
2006/42/EC (MD)
eustandard
EN 1127-1:2011
ukregulations
S.I. 2008/1597
ukstandard
BS EN 1127-1:2011
maxambienttemperature
40 °C
minambienttemperature
-20 °C
