Atlas Copco8434 2420 99

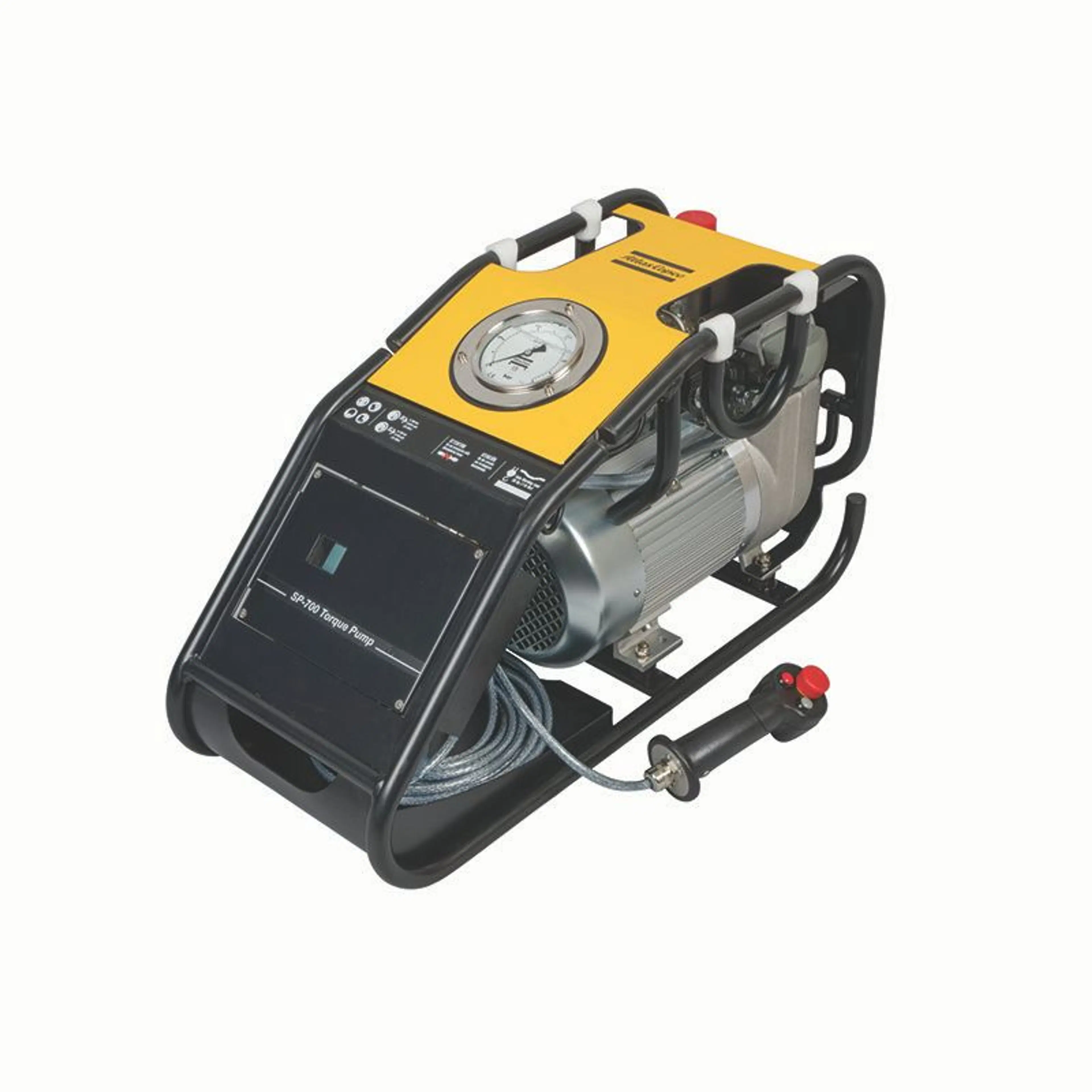

SP-700 115V, 60Hz 1P, Co-Ax
8434 2420 99 | SP-700 115V, 60Hz 1P, Co-Ax
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
8434 2420 99 | SP-700 115V, 60Hz 1P, Co-Ax8434 2420 99
Price on request
Details
Product information
| Technical Specifications | |
|---|---|
| height | 400 mm |
| length | 570 mm |
| weight | 75 lb |
| width | 280 mm |
| couplingtype | Co-axial |
| ratedfrequency | 60 Hz |
| intercoolersystem | No |
| numberofports | 1 |
| maxworkingpressure | 10000 psig |
| soundpressure | 78 dB(A) |
| soundstandard | ISO 15744 |
| sounduncertainty | 3 dB(A) |
| eulegislation | 2006/42/EC (MD) |
| eustandard | UNE-EN ISO 12100:2012 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | BS EN ISO 12100:2010 |
| weee | 4 - Large equipment >50cm |
| oilcapacity | 1.25 US-gallon |
| oilflowat10000psi | 0 cu-in/min |
| oilflowat700bar | 0.86 l/min |
| inputvoltage | 115 |
| power | 1800 W |
| MPN | 8434 2420 99 |
