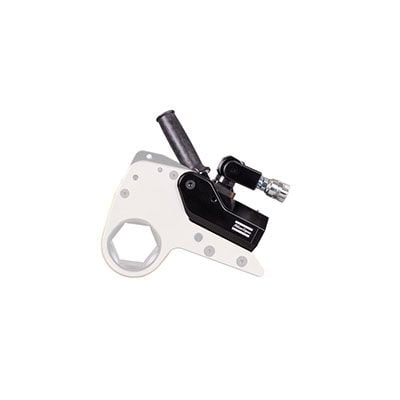

Atlas Copco8434 2424 02
owerhead, TFX14 (Co-Axial)
8434 2424 02 | owerhead, TFX14 (Co-Axial)
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
8434 2424 02 | owerhead, TFX14 (Co-Axial)8434 2424 02
Price on request
Details
Product information
| Technical Specifications | |
|---|---|
| l | 285 mm |
| nsmax | 120 mm |
| nsmin | 32 mm |
| ratchedlinkhexsizemax | 120 mm |
| ratchedlinkhexsizemin | 32 mm |
| w1 | 63 mm |
| w2 | 92 mm |
| weight | 11.24 lb |
| couplingtype | Co-axial |
| torquerangemax | 18168 Nm |
| torquerangemin | 2725 Nm |
| powersupplyhydraulicpressurerangemax | 10000 psi |
| powersupplyhydraulicpressurerangemin | 1500 psi |
| soundpressure | <70 dB(A) |
| soundstandard | ISO15744 |
| sounduncertainty | 3 dB(A) |
| atexcode | II 2 G Ex h IIC T4 Gb |
| certifications | II 2 D Ex h IIIC T135�C Db |
| atex | Yes |
| eulegislation | 2006/42/EC (MD) |
| eustandard | EN 1127-1:2011 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | BS EN 1127-1:2011 |
| maxambienttemperature | 40 °C |
| minambienttemperature | -20 °C |
| MPN | 8434 2424 02 |
