Atlas Copco8434 2427 34

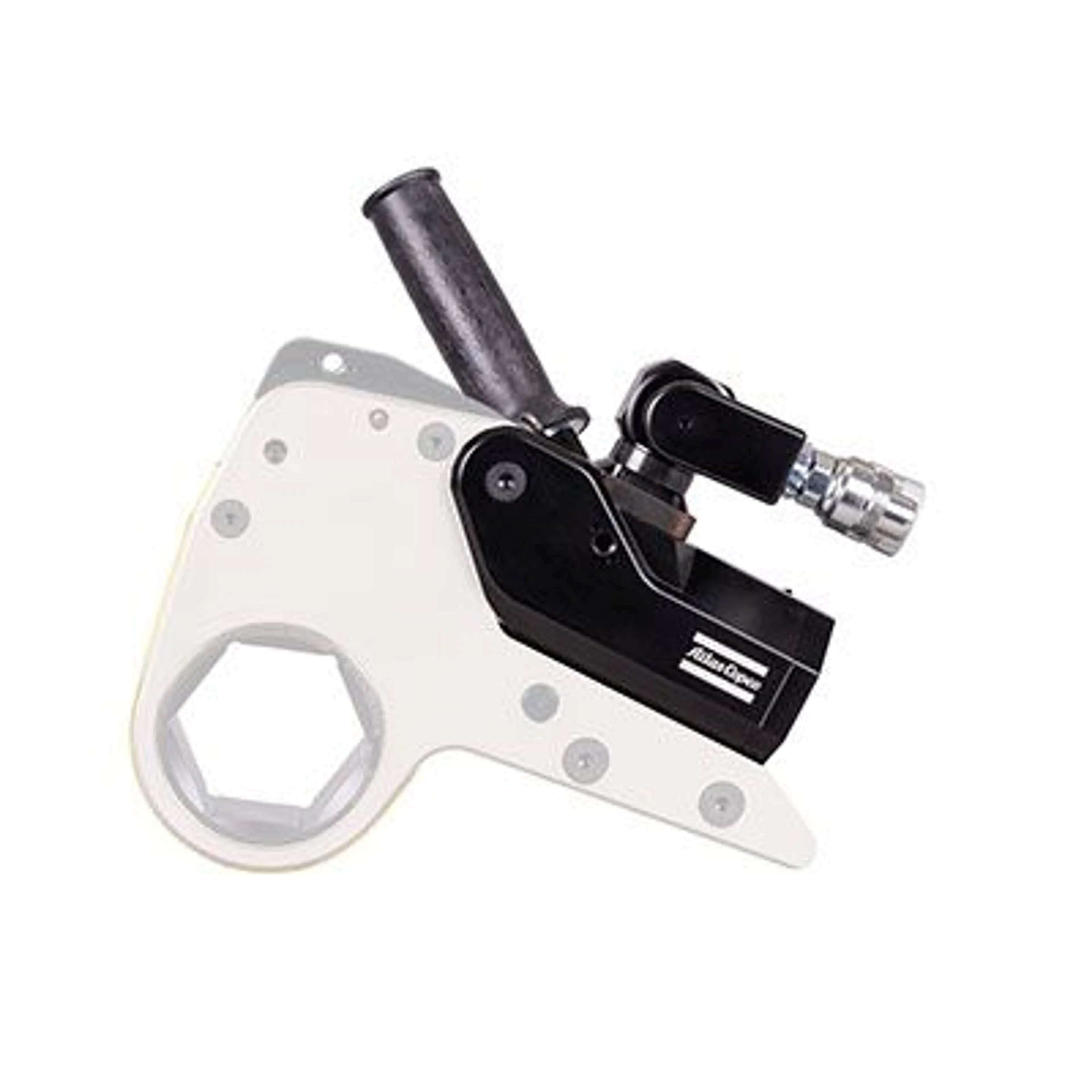

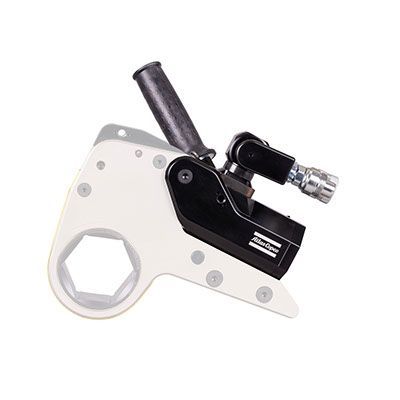

Powerhead, TFX30 (Twin)
8434 2427 34 | Powerhead, TFX30 (Twin)
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
8434 2427 34 | Powerhead, TFX30 (Twin)8434 2427 34
Price on request
Details
Product information
| Technical Specifications | |
|---|---|
| l | 380 mm |
| nsmax | 155.6 mm |
| nsmin | 65 mm |
| ratchedlinkhexsizemax | 155.6 mm |
| ratchedlinkhexsizemin | 65 mm |
| w1 | 84.7 mm |
| w2 | 122.4 mm |
| weight | 25.47 lb |
| couplingtype | Twin-Screw In |
| torquerangemax | 43115 Nm |
| torquerangemin | 6467 Nm |
| powersupplyhydraulicpressurerangemax | 10000 psi |
| powersupplyhydraulicpressurerangemin | 1500 psi |
| soundpressure | <70 dB(A) |
| soundstandard | ISO15744 |
| sounduncertainty | 3 dB(A) |
| atexcode | II 2 G Ex h IIC T4 Gb |
| certifications | II 2 D Ex h IIIC T135 °C Db |
| atex | Yes |
| eulegislation | 2006/42/EC (MD) |
| eustandard | EN 1127-1:2011 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | BS EN 1127-1:2011 |
| maxambienttemperature | 40 °C |
| minambienttemperature | -20 °C |
| MPN | 8434 2427 34 |
