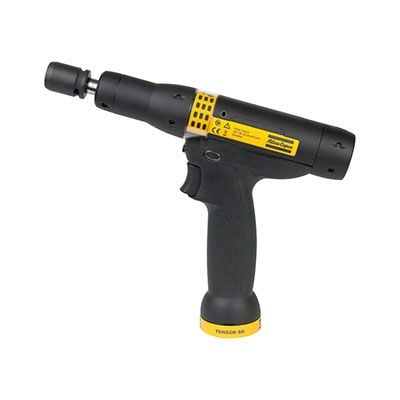

ETP SR31-25-10 | Electric Nutrunner, 5 - 25 Nm, 2010 rpm
A specialist replies within one business day.
Recommended Accessories
3 itemsAdd-on accessories that can be purchased alongside this product.
Details
Product information
Overview
Atlas Copco 3/8 Sq. In. 3.7 - 18.4 ft lb Pulse Tool, 2010 rpm
ETP SR 31-25-10

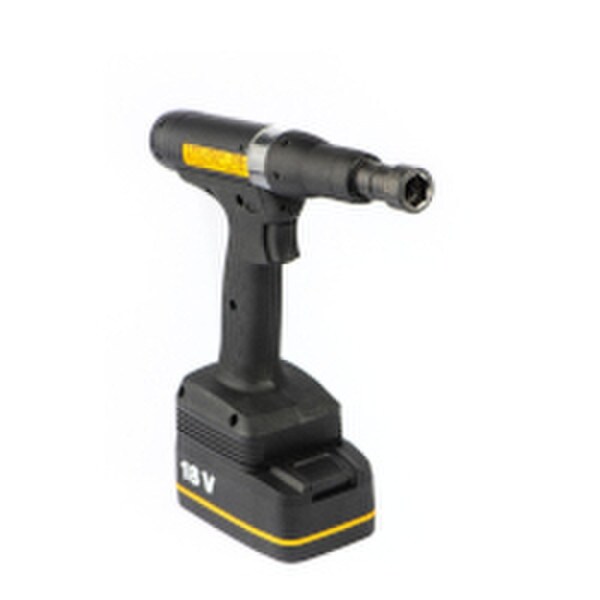

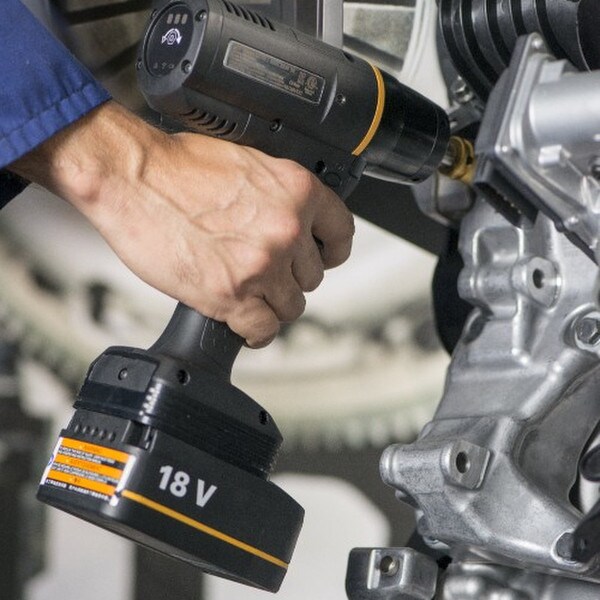

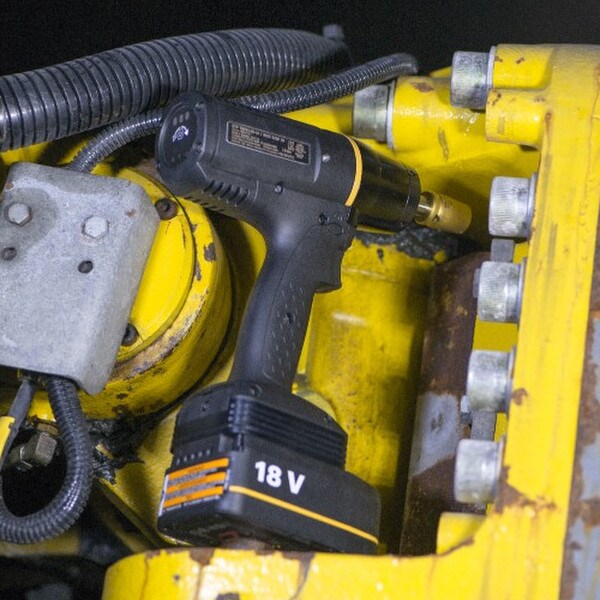

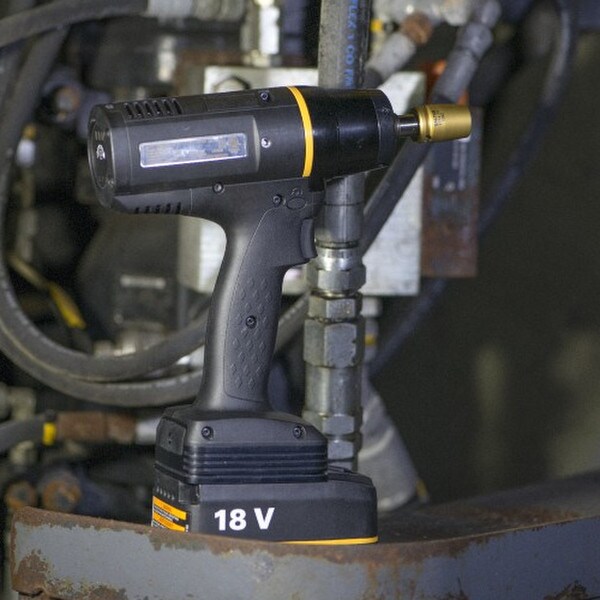

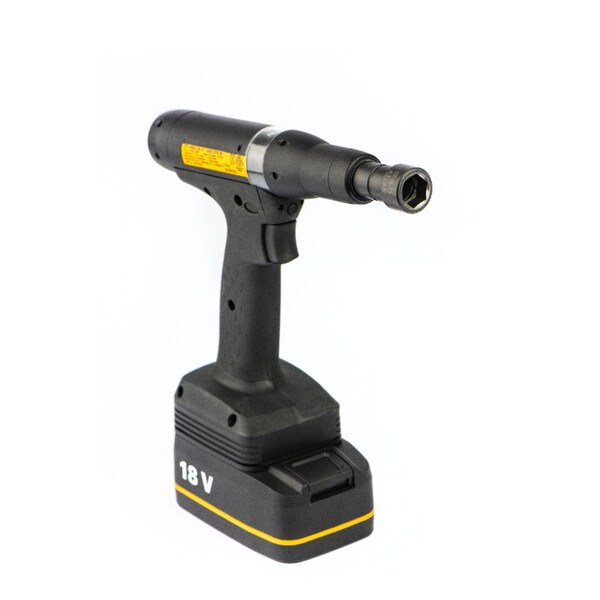

The cordless Tensor SR will change the way you plan your assembly stations. Experience low reaction, one-handed operations in an error-proof production.
FlexibleLow reaction and all strategies, from the standard 2 steps, quick step – to the more advance TurboTight and TensorPulse
ProductiveNew electronics and an improved motor, gives you the possibility to reach 1500 rpm boosting your productivity.
Perfect your strategiesTensor SRB offers the possibility to use both traditional strategies and the more advanced strategies such as TurboTight and TensorPulse.
Take care of OperatorsThe Tensor SRB has low weight and great balance – ergonomically designed to prevent operator fatigue. The new design also guarantees the correct temperature in contact with the operator.
Benefit from intelligent batteriesThe Tensor SRB is powered by our new generation of batteries and chargers. With a multi charger you have one charger for all batteries. Choose between 18v or 36v battery - without compromising the performance of speed or torque.
| Technical Specifications | |
|---|---|
| height | 179 mm |
| length | 210 mm |
| outputsize | 3/8' |
| weight | 1.8 lb |
| modeltype | Pistol |
| outputtype | Square, Male |
| shutoffsystem | Transducer |
| toolfamily | SR |
| torquerangemax | 25 Nm |
| torquerangemin | 5 Nm |
| torquescatter3s | ≤ 5 % |
| speedrangemax | 2010 r/min |
| additionalsoundvalue | 85 dB(A) |
| additionalvibrationvalue | 25 m/s² |
| soundpressure | <70 dB(A) |
| soundstandard | ISO15744 |
| vibrationstandard | ISO28927-1 |
| vibrationvalue | <2.5 m/s² |
| ccccertified | No |
| cqccertified | No |
| eaccertified | Yes |
| eulegislation | 2006/42/EC (MD) |
| eustandard | EN 61000-6-2:2019 |
| kccertified | Yes |
| kcid | R-REI-50A-ETPSR31-20-10 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | BS EN 62841-1:2015 + AC:2015 + A11:2022 |
| weee | 5 - Small equipment <50cm |
| motorpower | 1400 W |
| motorvoltagetype | 3 a.c. |
| motorvoltage | 200 V |
| MPN | ETP SR31-25-10 |
