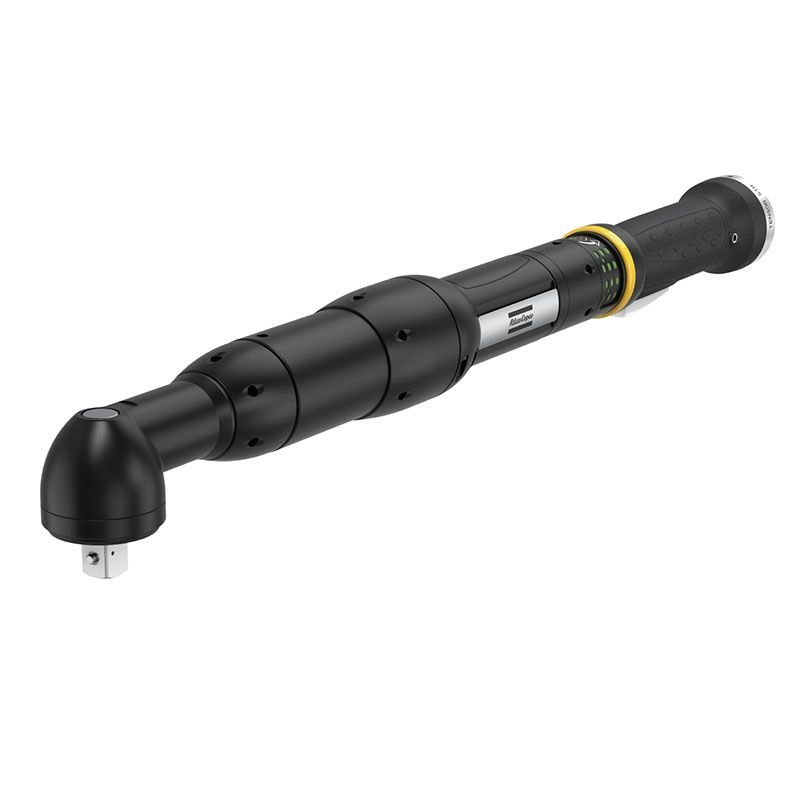

Atlas CopcoETV STR31-20-10

Transducerized Wired Driver, 5-22Nm Angled Torque Driver with 3/8'' Square Drive - 705rpm

The latest generation of Tensor tools where ergonomics and productivity are taken to a new level

Price on request

Your requestWe price the quantity you set here

Quantity

A specialist replies within one business day.

Documents4 files

ETV STR31-20-10 | Transducerized Wired Driver, 5-22Nm Angled Torque Driver with 3/8'' Square Drive - 705rpmETV STR31-20-10

Price on request

1 item

Add-on accessories that can be purchased alongside this product.

Product	Price	Qty
Power Focus 60008436 1800 02 \| Power Focus 6000 \| Power Focus 6000 Controller		1	View details

Technical Specifications
csdistance	14 mm
height	42 mm
length	415 mm
outputsize	3/8'
weight	2.9 lb
modeltype	Angle
outputtype	Square, Male
shutoffsystem	Transducer
toolfamily	STR
torquerangemax	22 Nm
torquerangemin	5 Nm
torquescatter3s	â‰¤ 5 %
speedrangemax	705 r/min
soundpressure	<70 dB(A)
soundstandard	ISO15744
vibrationstandard	ISO28927-2
vibrationvalue	<2.5 m/s²
ccccertified	No
cqccertified	No
eaccertified	Yes
eulegislation	2006/42/EC (MD)
eustandard	EN 61000-6-2:2019
kccertified	Yes
kcid	R-REI-50A-ETVSTR31
ukregulations	S.I. 2008/1597
ukstandard	BS EN 62841-1:2015 + AC:2015 + A11:2022
weee	5 - Small equipment <50cm
motorpower	1500 W
motorvoltagetype	3 a.c.
motorvoltage	200 V
MPN	ETV STR31-20-10
Features & Benefits
Able withstand the toughest environments. IP CLASS 58
Built in gyroscope to detect operators influence on tightening
High cycle rate capability due to improved heat dissipation.
Modular design for parts commonality between models and sizes
Able withstand the toughest environments. IP CLASS 58,Built in gyroscope to detect operators influence on tightening,High cycle rate capability due to improved heat dissipation.
