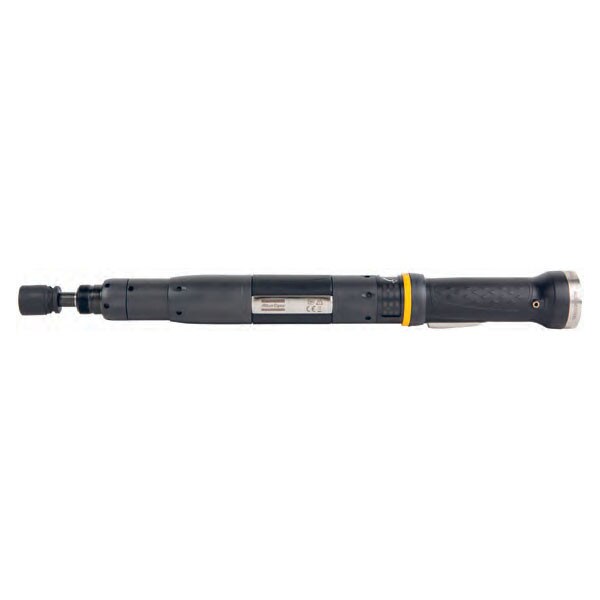

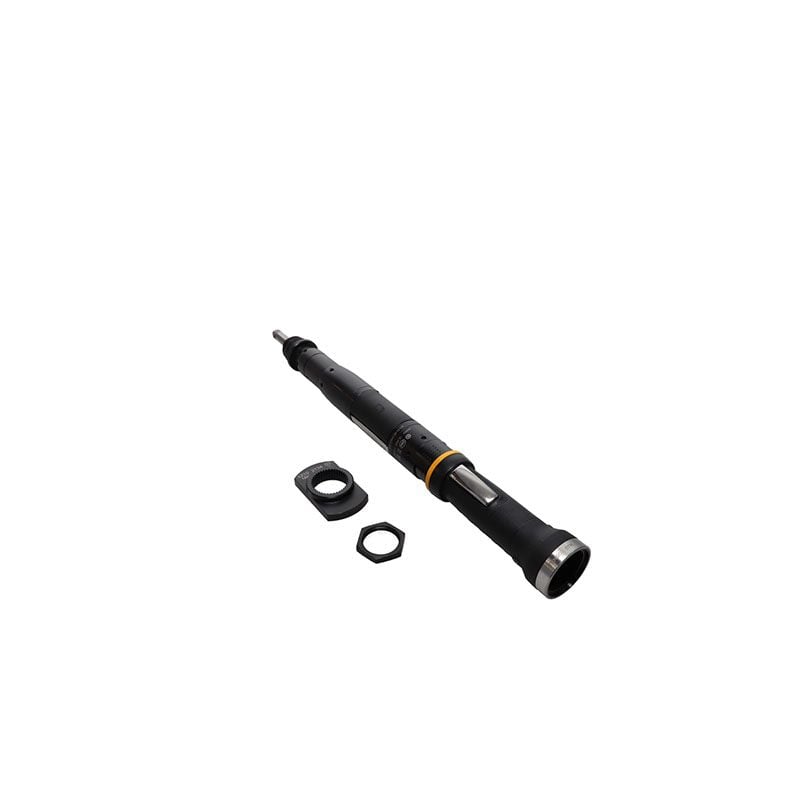

8436 6260 30 | ETD STR61-30-10 | Inline Electric Nutrunner, 3/8'' square, 35 Nm

(0)No Reviews yet

The latest generation of Tensor tools where ergonomics and productivity are taken to a new level

Warning: California Proposition 65 | Trade Regulations Advisory Notice
Item Ships free
Order total must be over $999.99, under 20 lbs and shipping within continental USA

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Non-Returnable
Spare Parts, Specialty and Custom items are non-returnable and non-refundable
Back

Overview

Back

Features & Benefits

  • Able withstand the toughest environments. IP CLASS 94
  • Built in gyroscope to detect operators influence on tightening
  • Modular design for parts commonality between models and sizes
  • High cycle rate capability due to improved heat dissipation.
Back

Technical Specifications

SKU: 8436 6260 30
csdistance
24 mm
length
429 mm
outputsize
3/8'
weight
3.1 lb
modeltype
Straight
outputtype
Square, Male
shutoffsystem
Transducer
splinemounting
-/1
toolfamily
STR
torquerangemax
35 Nm
torquerangemin
6 Nm
torquescatter3s
≤ 5 %
speedrangemax
1130 r/min
soundpressure
<70 dB(A)
soundstandard
ISO15744
vibrationstandard
ISO28927-2
vibrationvalue
<2.5 m/s²
ccccertified
No
cqccertified
No
eaccertified
Yes
eulegislation
2006/42/EC (MD)
eustandard
EN 61000-6-2:2019
kccertified
Yes
kcid
R-REI-50A-ETVSTR61
ukregulations
S.I. 2008/1597
ukstandard
BS EN 62841-1:2015 + AC:2015 + A11:2022
weee
5 - Small equipment <50cm
motorpower
1500 W
motorvoltagetype
3 a.c.
motorvoltage
200 V
