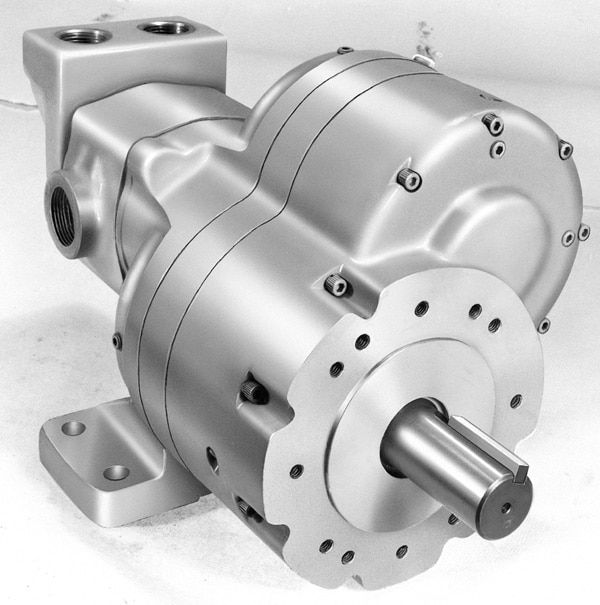

Ingersoll Rand92RMG1
9.9 Hp, 3980 Rpm, Multi-Vane Air Motor
$5,617.00List $6,850.00
Save $1,233.00Total$5,617.00Taxes & shipping at checkout
Quantity
1
- Free UPS Ground over $999.99
- Factory-authorised service
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
92RMG1 | 9.9 Hp, 3980 Rpm, Multi-Vane Air Motor92RMG1
Total$5,617.00
1
Details
Product information
Overview
Ingersoll Rand 92RMG1
9.9 Hp, 3980 Rpm, Multi-Vane Air Motor
92RA and 92RB series, spur gear, Multi-vane Air Motors. 7.90 hp to 8.15 hp (5.89 to 6.08 Kw). 59 rpm to 975 rpm with adjustability through air controls. Ideal for low rpm / high torque applications.
Features:- Will not burn out: Air motors can be stalled or overloaded for long periods without damage.
- Great for harsh environments: No heat build up or sparks make air motors ideal for use in flammable or explosive applications.
- Instantly reversible: A four-way valve allows instant motor reversal (on reversible units) with the turn of a valve.
- Cool Running: A running air motor expands air, allowing motors to operate in temperatures up to 150oF and some motors up to 300oF with special grease, lube and seals.
- Compact and Portable: Get maximum horsepower in minimum size.
- Variable speed: You may utilize a wide range of speeds by using a simple valve on your input air supply line.
- Minimum maintenance: Our motors have a proven history of long, low maintenance life. All you need to provide is a clean, dry, lubricated air supply.
- No shock starts: Air cushioned start-up cuts stress to your equipment.
| Technical Specifications | |
|---|---|
| Model | 92RMG1 |
| Manufacturer | Ingersoll Rand |
| SKU | 92RMG1 |
| Stock Code | 3 |
| Max Free Speed (rpm) | 3980 |
| Weight (lbs) | 24.25 |
| Starting Torque (ft lb) | 33 |
| Speed at Max Power (rpm) | 2095 |
| Stall Torque (ft lb) | 45 |
| Rated Power (hp) | 9.9 |
| Stall Torque (Nm) | 61 |
| MPN | 92RMG1 |
